![Yamaha YZF-R1 (2002) [337/439] Water pump](/views2/1121352/page337/bg151.png)
6 - 12
COOL

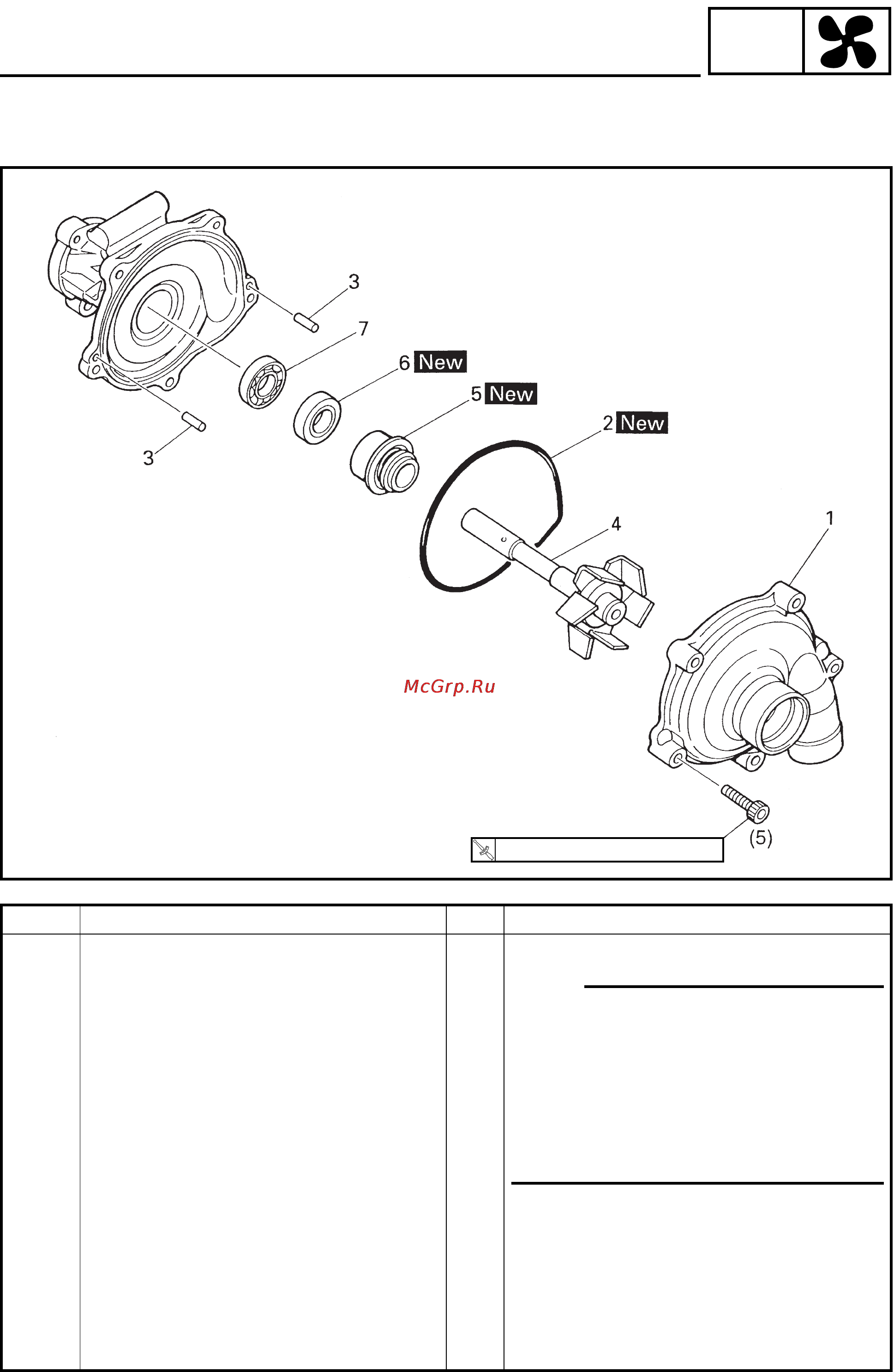

WATER PUMP
EAS00468
WATER PUMP
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the impeller shaft
Remove the parts in the order listed.
NOTE:
• The water pump and oil pump are com-
bined into one unit (oil/water pump
assembly).
• It is not necessary to remove the impel-
ler shaft unless the coolant level is
extremely low or coolant leaks from the
oil pan.
Oil/water pump assembly and oil pump
rotor
Refer to “OIL PAN AND OIL PUMP” in
chapter 5.
1 Water pump cover 1
2 O-ring 1
3Pin 2
4 Impeller shaft (along with the impeller) 1
