![Yamaha YZF-R1 (2002) [81/439] Lubrication diagrams](/img/pdf.png)
Yamaha YZF-R1 (2002) [81/439] Lubrication diagrams
![Yamaha YZF-R1 (2002) [81/439] Lubrication diagrams](/views2/1121352/page81/bg51.png)
2 - 31
SPEC

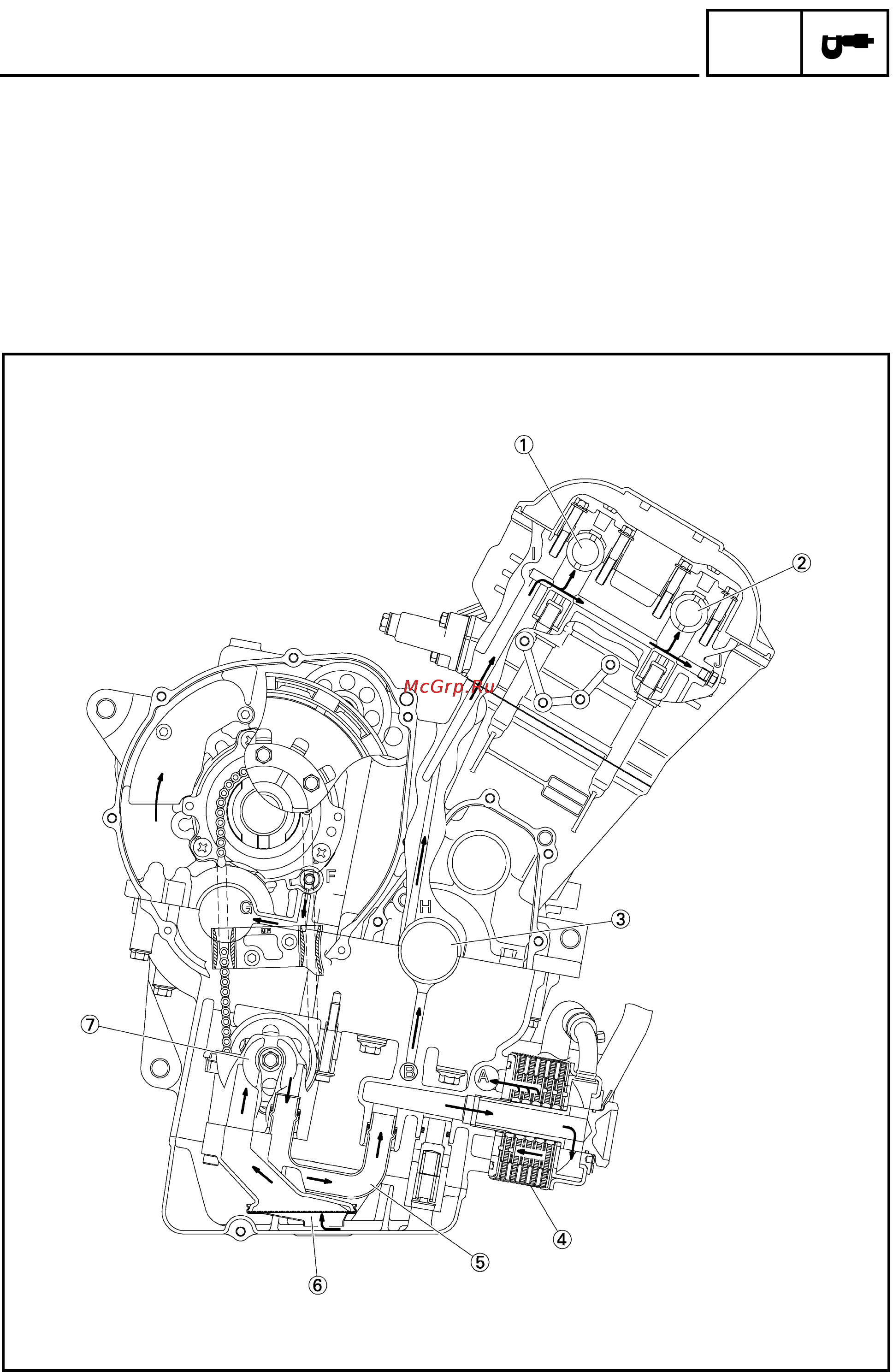

LUBRICATION DIAGRAMS
1 Intake camshaft
2 Exhaust camshaft
3 Crankshaft
4 Oil cooler
5 Oil pipe
6 Oil strainer
7 Oil pump
