2 - 32
SPEC

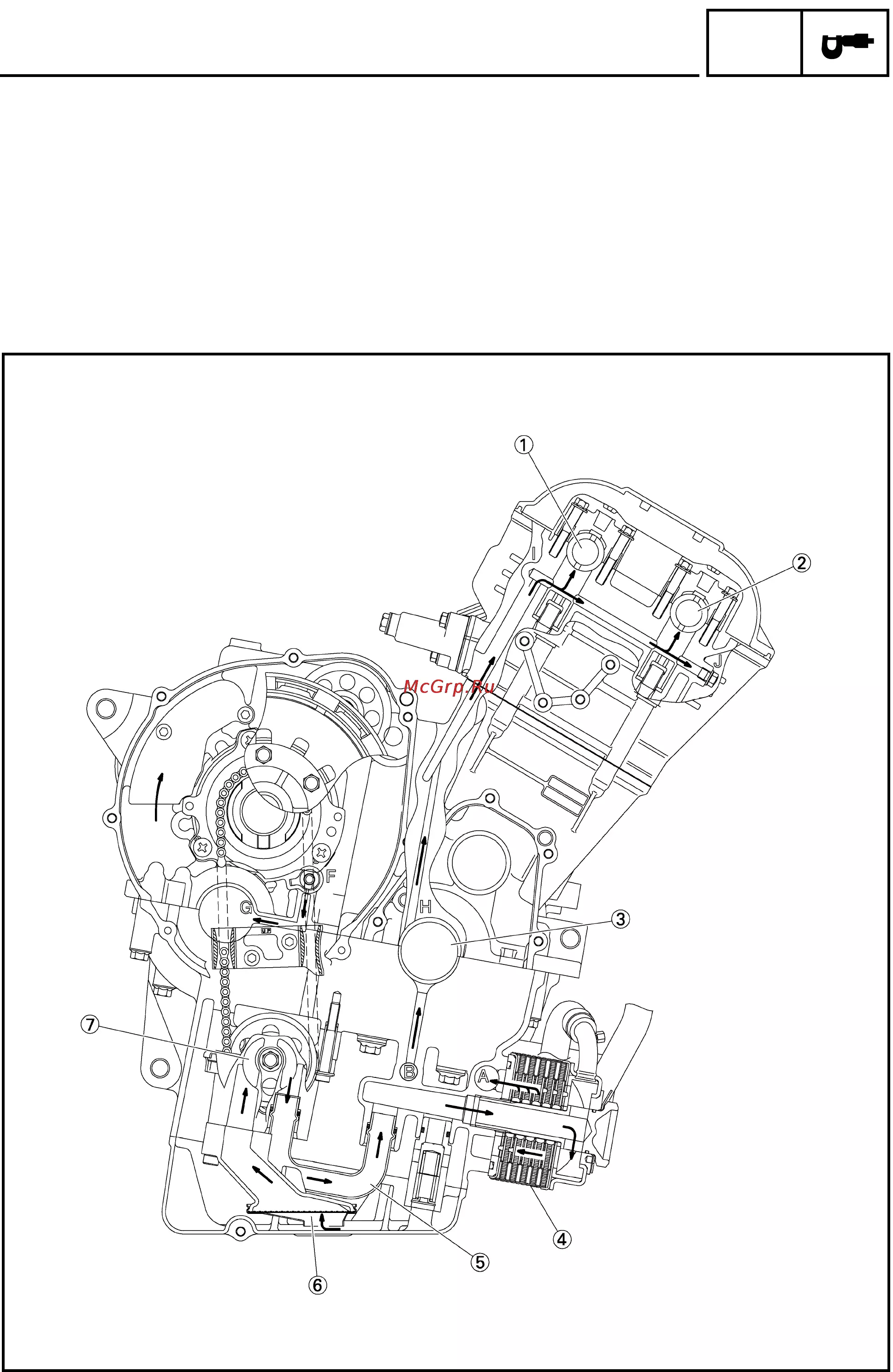

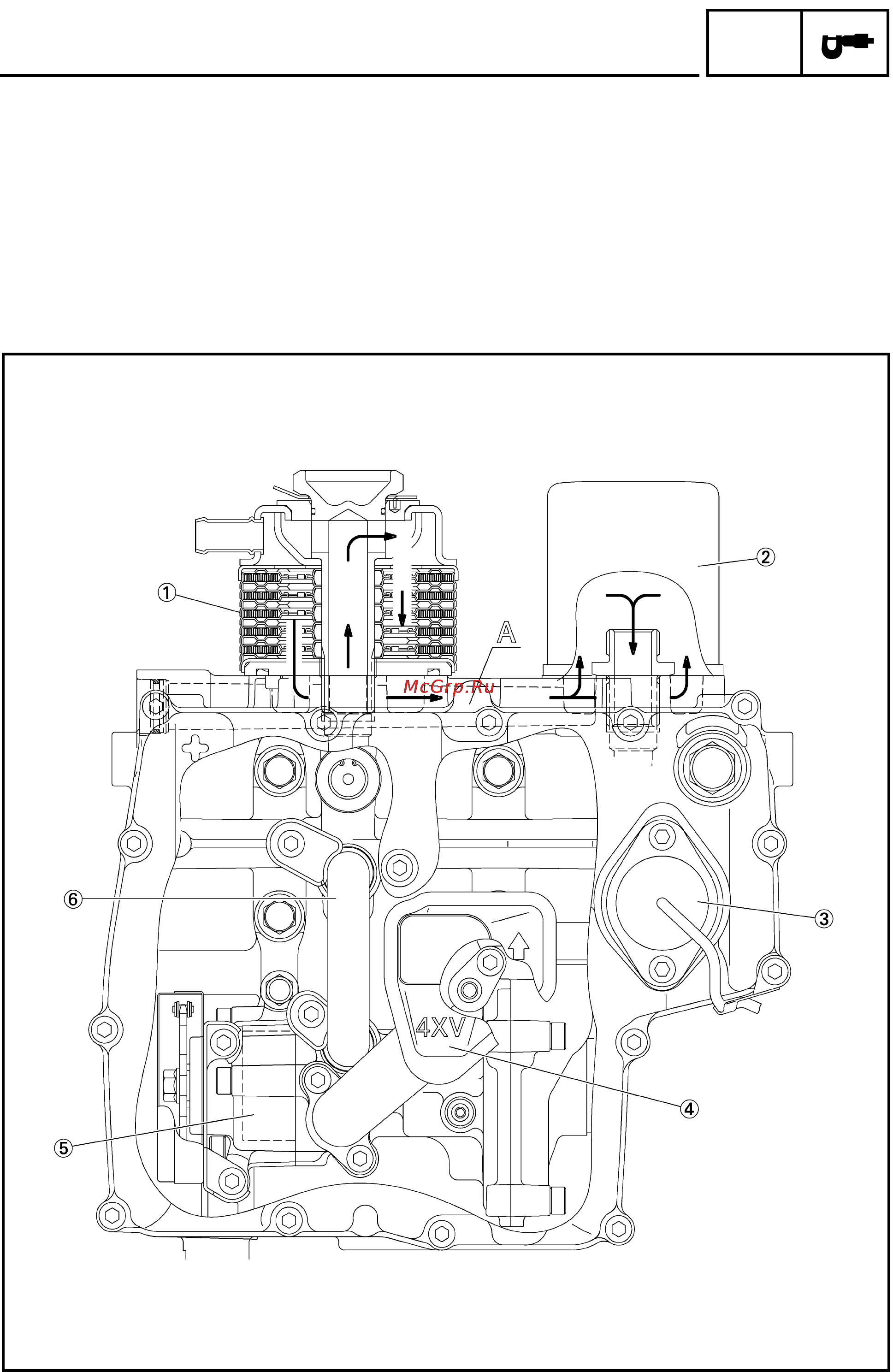

LUBRICATION DIAGRAMS
1 Oil cooler
2 Oil filter cartridge
3 Oil level switch
4 Oil strainer
5 Oil pump
6 Oil pipe
