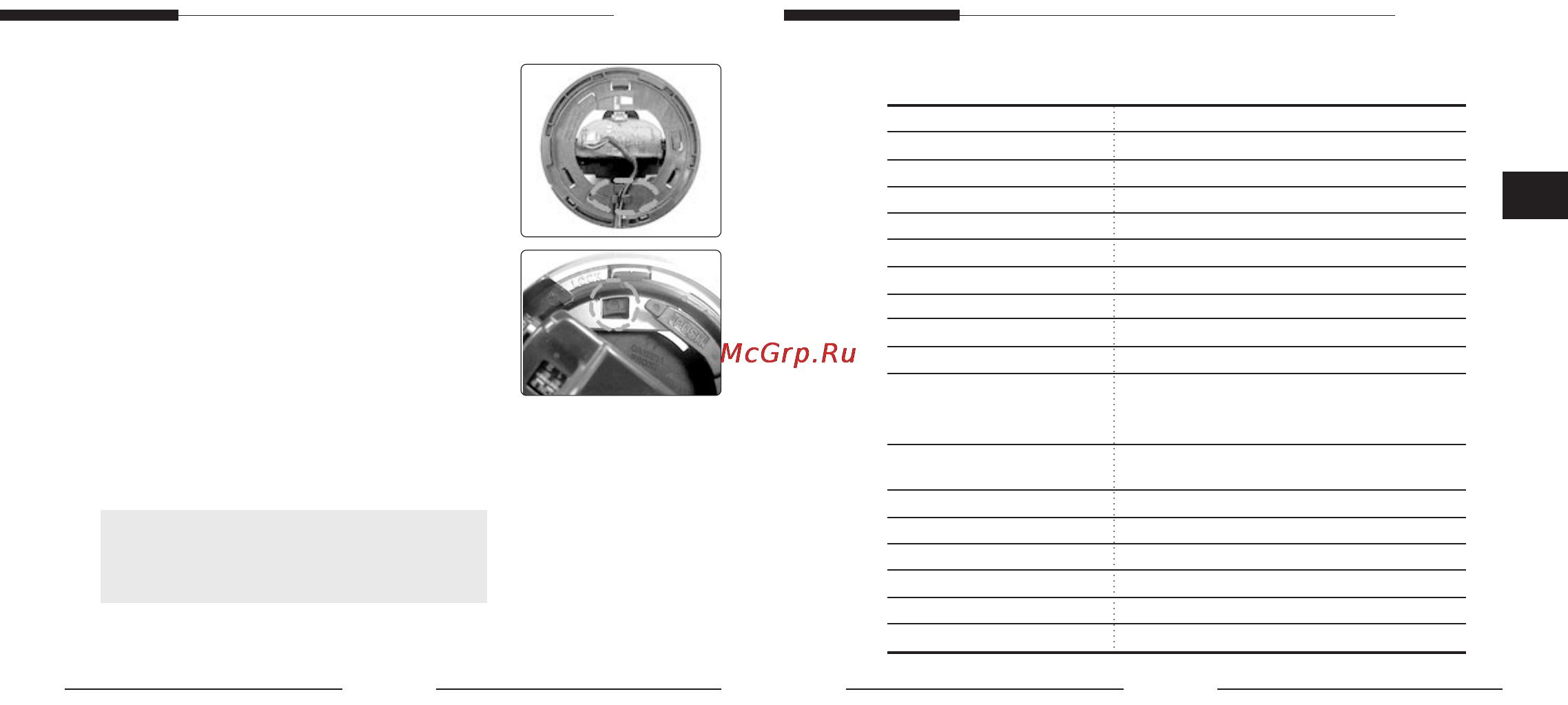

5. Specifications
Item
Display Standard
CCD
Effective Number of Pixels
Synchronization
Resolution
Signal Output
S/N ratio
Minimum Object Illumination
Shutter Speed
Lens
Body Color
In/out connector
Operating temperature
Power source
Power consumption
Size
Weight
Details
PAL STANDARD
1/3" SUPER HAD IT CCD
752(H) x 582(V)
Internal
520 TV Lines
VBS 1.0Vp-p(75Ω, composite)
50dB
0.3 Iux
Max. 1/100 Ksec
B5201(S)P : f=3.8mm, View=100°
B5203(S)P : f=3.0mm, View=126°
B5205(S)P : f=8.0mm, View=38.6°
B52XXP :
Black
B52XXSP :
Silver
Signal output:
BNC,
Power input :
Jack
-10~+50°C
DC 12V +10%,-5%
2 W
85(ø) x 54(H)mm
125g
8 9
E
➁ When you put aside the cable of the camera
instead of making a hole in the installation site,
turn the lens to the end in a counter-clockwise
direction and connect it to the cable guide as
shown in the figure before placing it outside.
(This is to prevent the inside cable from being
short when the lens rotates, and you should
remove some parts of the cable that may fall out of
the case.)
5. Place the bracket ceiling so that the key image of
the ceiling can be seen through the hole on the
main body of the camera as shown in the figure,
and turn it until you hear the locking sound.
6. Adjust the lens as desired, by rotating the lens up
and down or right and left.
7. Assemble the Cover Dome into the camera so that
the lens can be seen through the transparent part.
❈ When you turn the Cover Dome, the lens
installed inside also rotates. But you must
separate the Cover Dome to adjust the lens
up and down.
