E
Rear of SCC-C4XXX
SCC-RC130
Connect as shown below using the straight UTP cable with an
RJ-45 connector
󳀏
Check what’s in your package.
Make sure that you have all of following items in the package
when you unpack SCC-RC130.
󳀏
Cautions
! Be sure to connect the controller with the connecter using a
Direct UTP cable.
The controller will not work when connected by a cross cable.
@ AF/ Menu control/ Home (Preset 0) Return will be available
later in SCC-C4XXX ROM VER1.2.
Controller
Connector
Users’ Manual

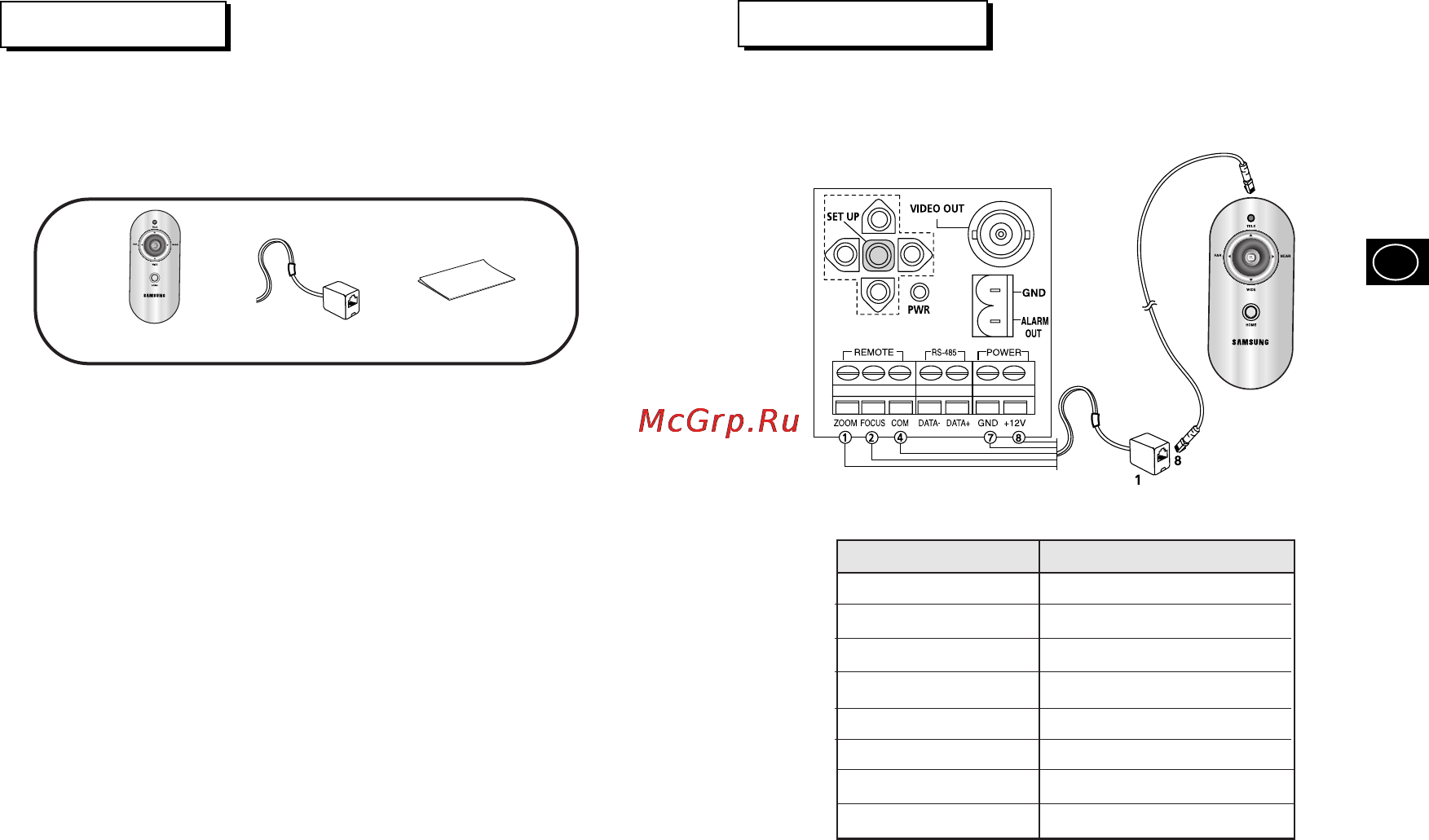

Connection Diagram
Before Installation
RJ-45 Jack
Camera Connection Port
1 (Yellow) ZOOM
2 (Green) FOCUS
3 Not used
4 (White) COM
5 Not used
6 Not used
7 (Black) GND/AC24V
8 (Red) DC12V/AC24V
