Internet faxing
5-12 FK-506
5.2 Specifying transmission settings
While the screen for entering the e-mail address is displayed, press the [,]
key to specify settings for the following transmission parameters.
- TIMER TX
- MAX TX SIZE
- MAX QUALITY
- CODING METHOD
Settings for "TIMER TX" can be specified by selecting "TIMER SETTING",
and settings for "MAX TX SIZE", "MAX QUALITY", and "CODING METHOD"
can be specified by selecting "BASIC/ADVANCED".
Specifying the transmission time
1 Position the document to be faxed, and then specify the recipient.
– Refer to "General transmission operation" on page 5-4.
2 Press the [,] key.
3 Press the [+] or [,] key until "TIMER SETTING" is selected, and then
press the [OK] key.

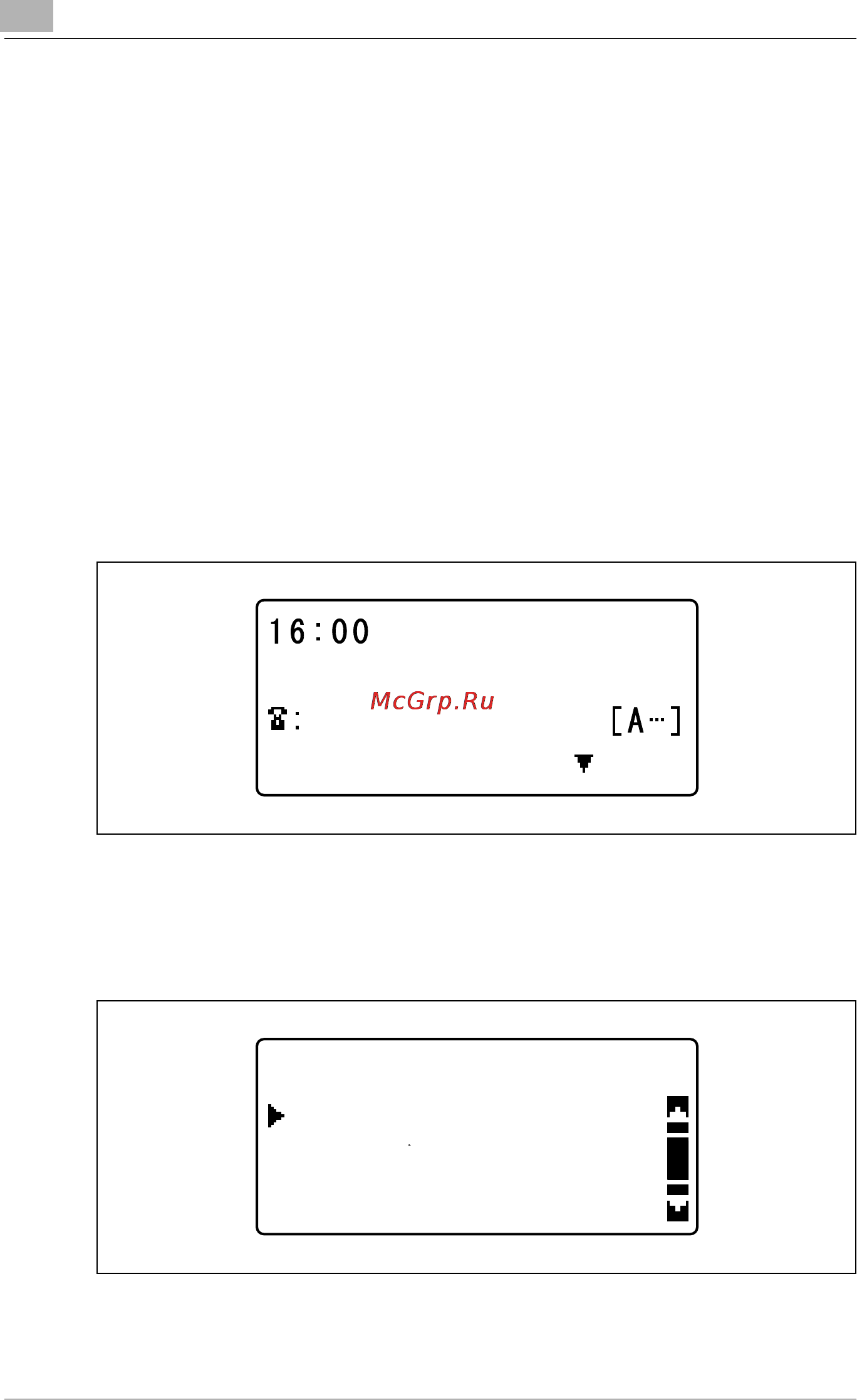

Memory:100%
st@test.local_
QUALITY:STD/TEXT
OTHER SETTING=
FAX OTHER SETTING
BASIC/ADVANCED
TIMER SETTING
RETURN
