6 Getting to know your monitor
2. Getting to know your monitor

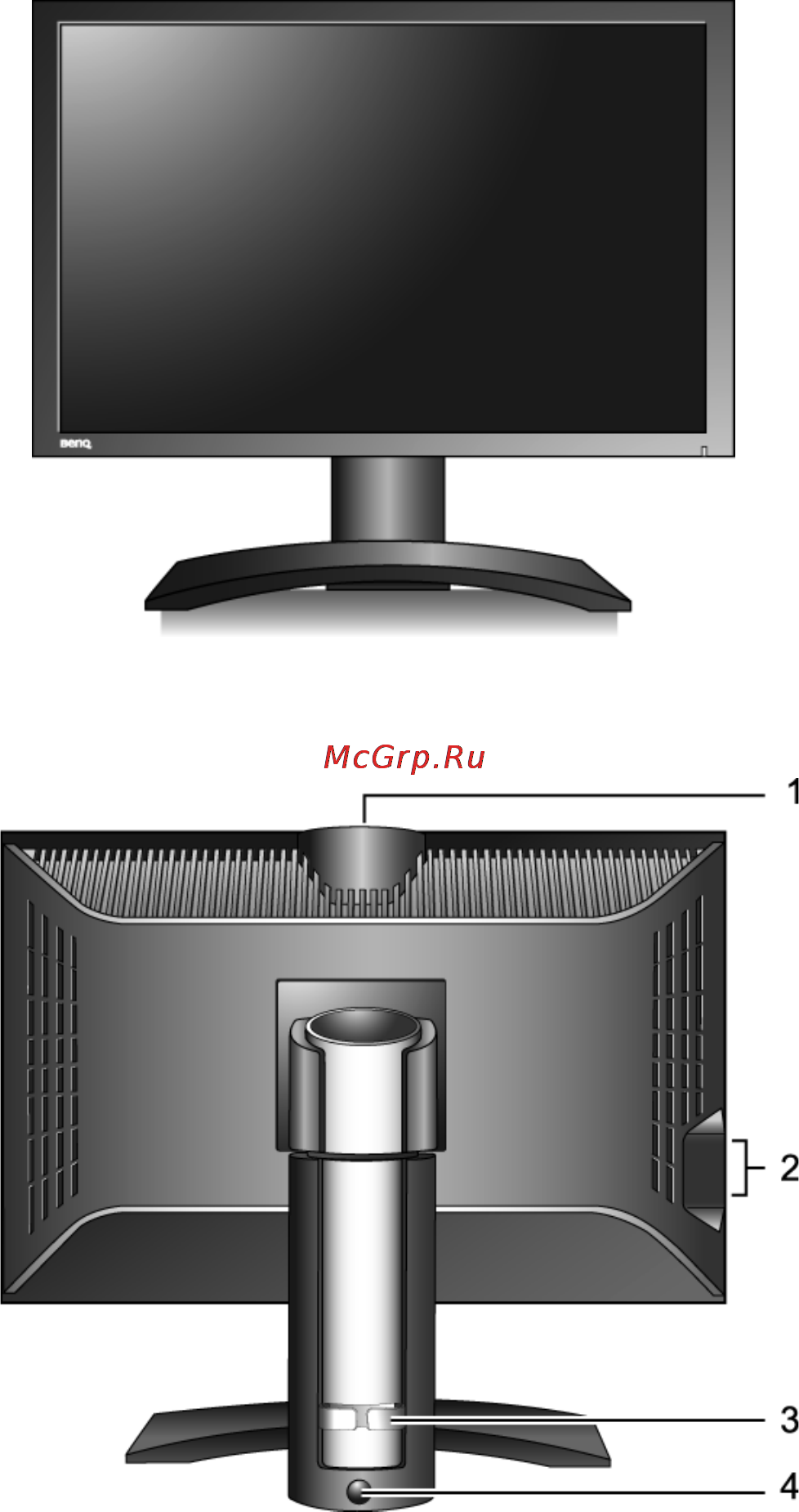

Front view
Back view (1)
1. USB device port for optional Web cam unit
2. USB device ports for connection to built-in USB hub
3. Cable holder
4. Lock down / release button
