BenQ LCD Color Monitor User's Guide

English 6

Installation

Hardware Installation

A. Make sure that the computer and monitor’s power are both turned off. Please follow

the steps to install your LCD monitor.

B. Connect the signal cable to the VGA output of the graphics card on the computer.

C.Connect the power cord at the back of the monitor to an AC power socket. Please

make sure that the socket is not blocked or covered, so you can disconnect the unit

from AC supply if you need to. Your monitor is equipped with an automatic power sup-

ply for a voltage range from 100 to 240 Volt at a frequency of 50 to 60 Hz. Be sure that

your local power is within the supported range. If you are unsure, ask your electricity

supplier.

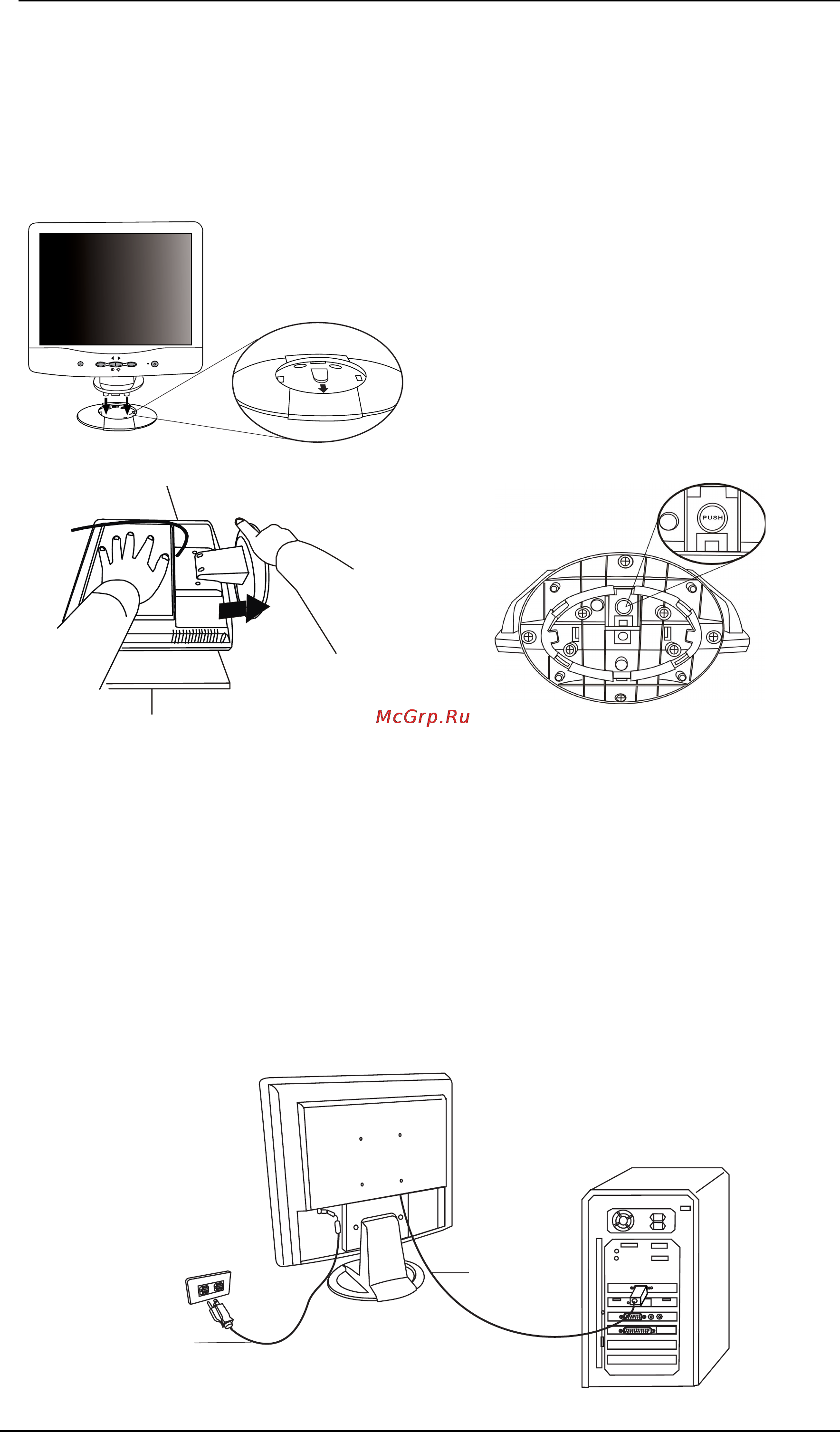

Place the arrow on the base and the front side

of the monitor in corresponding direction. The

arrow on the base indicates the front of the

base. Place the monitor into the base until it

locks into place. There will be a clicking sound.

Place the monitor face down on a soft surface. Hold the back of the monitor with one hand.

Using the other hand, press the release button on the base and push outward in the direction of

the arrow to detach the base extension.

Exit Enter

Signal Cable

Power Cord
