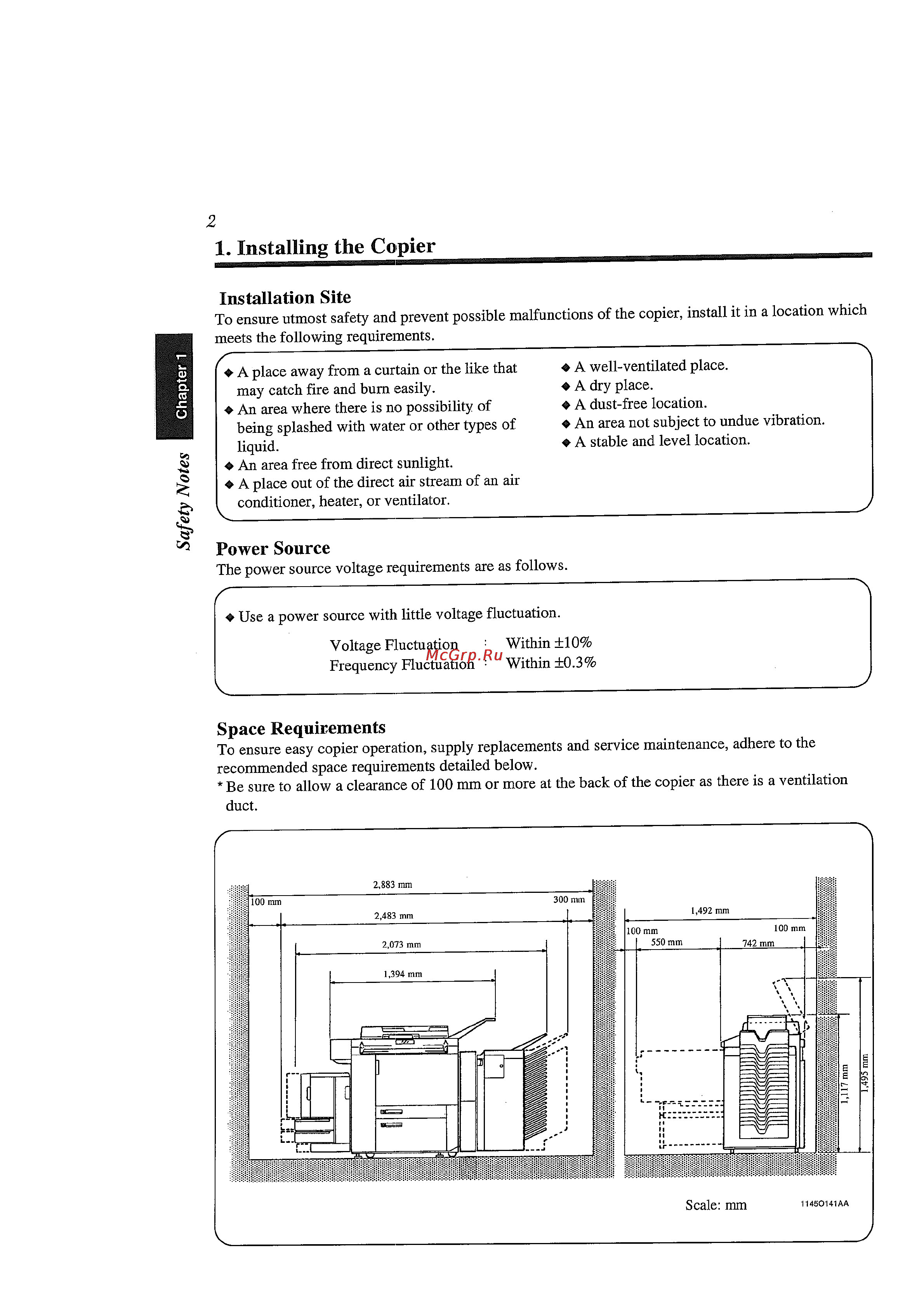

2 1 Installing the Copier Installation Site To ensure utmost safety and prevent possible malfunctions of the copier install it in a location which meets the following requirements ____________________________________ Safety Notes Q CO Q A place away from a curtain or the like that may catch fire and bum easily An area where there is no possibility of being splashed with water or other types of liquid An area free from direct sunlight A place out of the direct air stream of an air conditioner heater or ventilator A well ventilated place A dry place A dust free location An area not subject to undue vibration A stable and level location y Power Source The power source voltage requirements are as follows Use a power source with little voltage fluctuation Voltage Fluctuation Within 10 Frequency Fluctuation Within 0 3 Space Requirements To ensure easy copier operation supply replacements and service maintenance adhere to the recommended space requirements detailed below Be sure to allow a clearance of 100 mm or more at the back of the copier as there is a ventilation duct 1 495 mm 0 Scale mm 1145O141AA
