2-2

2.2 UNLOCKING THE SC-215

To protect the scanning head from damage during

shipment, the SC-215 is designed with a lock

switch beneath the main unit. Therefore, before

using the SC-215, it is required that you unlock the

SC-215 by moving the lock switch to the Use

position.(See Figure 2-1)

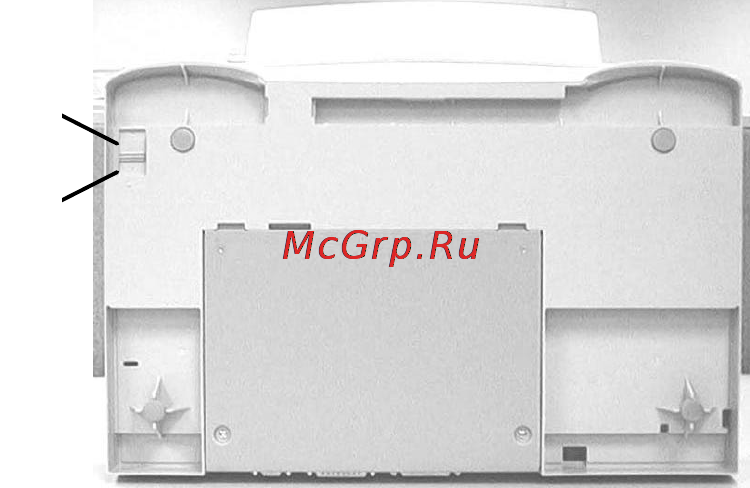

1. “Shipping” Position 2. “Use” Position

Figure 2-1 Unlocking the SC-215
