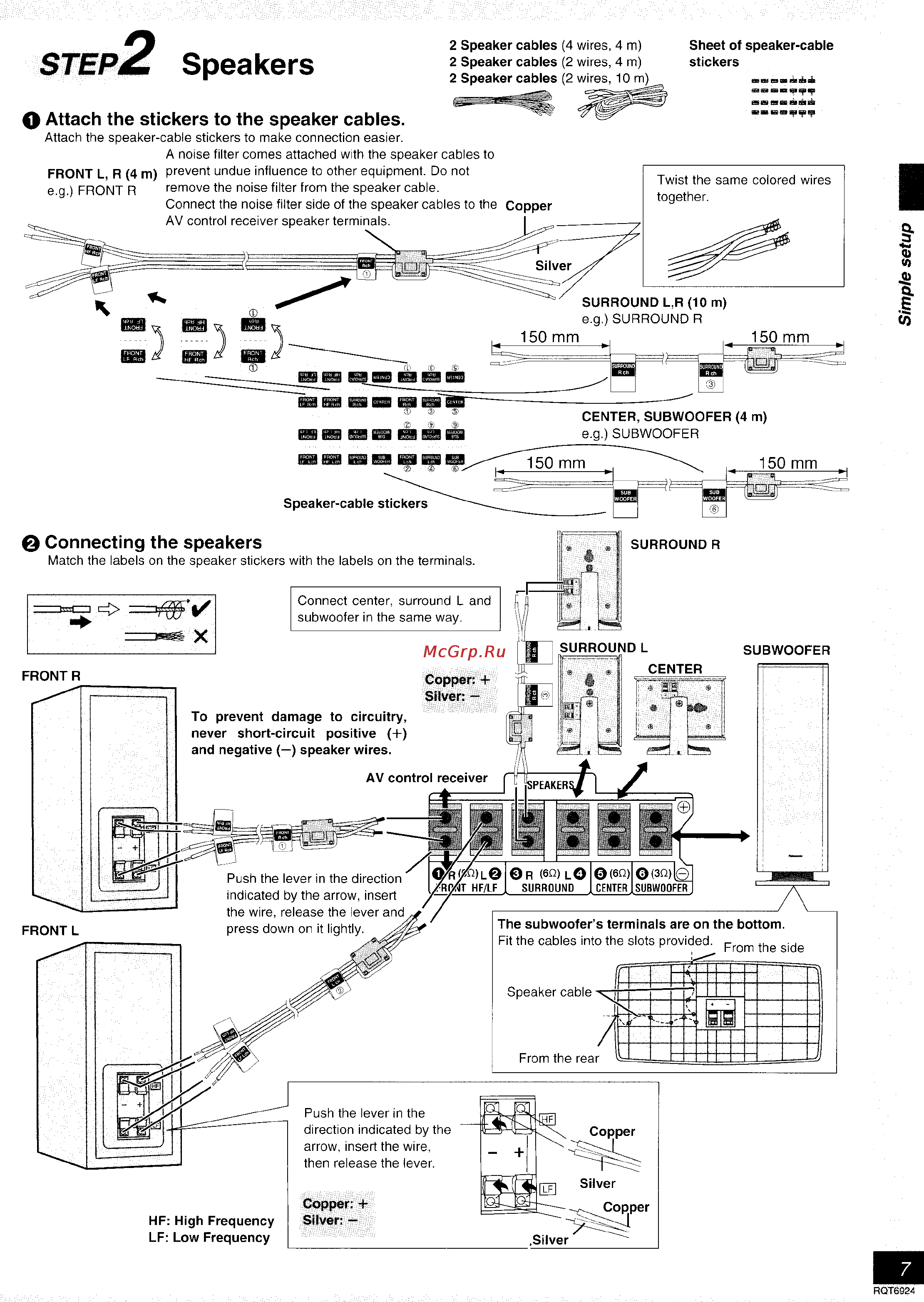

2 Speaker cables 4 wires 4 m 2 Speaker cables 2 wires 4 m 2 Speaker cables 2 wires 10 m STEP2 Speakers Sheet of speaker cable stickers am H i ai a aa guy p o Attach the stickers to the speaker cables Simple setup Attach the speaker cable stickers to make connection easier A noise filter comes attached with the speaker cables to FRONT L R 4 m prevent undue influence to other equipment Do not e g FRONT R remove the noise filter from the speaker cable Connect the noise filter side of the speaker cables to the Copper AV control receiver speaker terminals Silver SURROUND L R 10 m e g SURROUND R 150 mm 150 mm CENTER SUBWOOFER 4 m e g SUBWOOFER 150 mm 150 mm Speaker cable stickers Q Connecting the speakers SURROUND R Match the labels on the speaker stickers with the labels on the terminals Connect center surround L and subwoofer in the same way SURROUND L FRONT R Copper Silver SUBWOOFER CENTER To prevent damage to circuitry never short circuit positive and negative speaker wires AV control receiver FRONT L Push the lever in the direction indicated by the arrow insert the wire release the lever and press down on it lightly Qfô L R 60 L 60 3O Q Ri tT HF LF SURROUND CENTER SUBWOOFER The subwoofer s terminals are on the bottom Push the lever in the direction indicated by the arrow insert the wire then release the lever Copper Sliver HF High Frequency LF Low Frequency Copper Silver Copper Silver
