17
3. Image Optimization

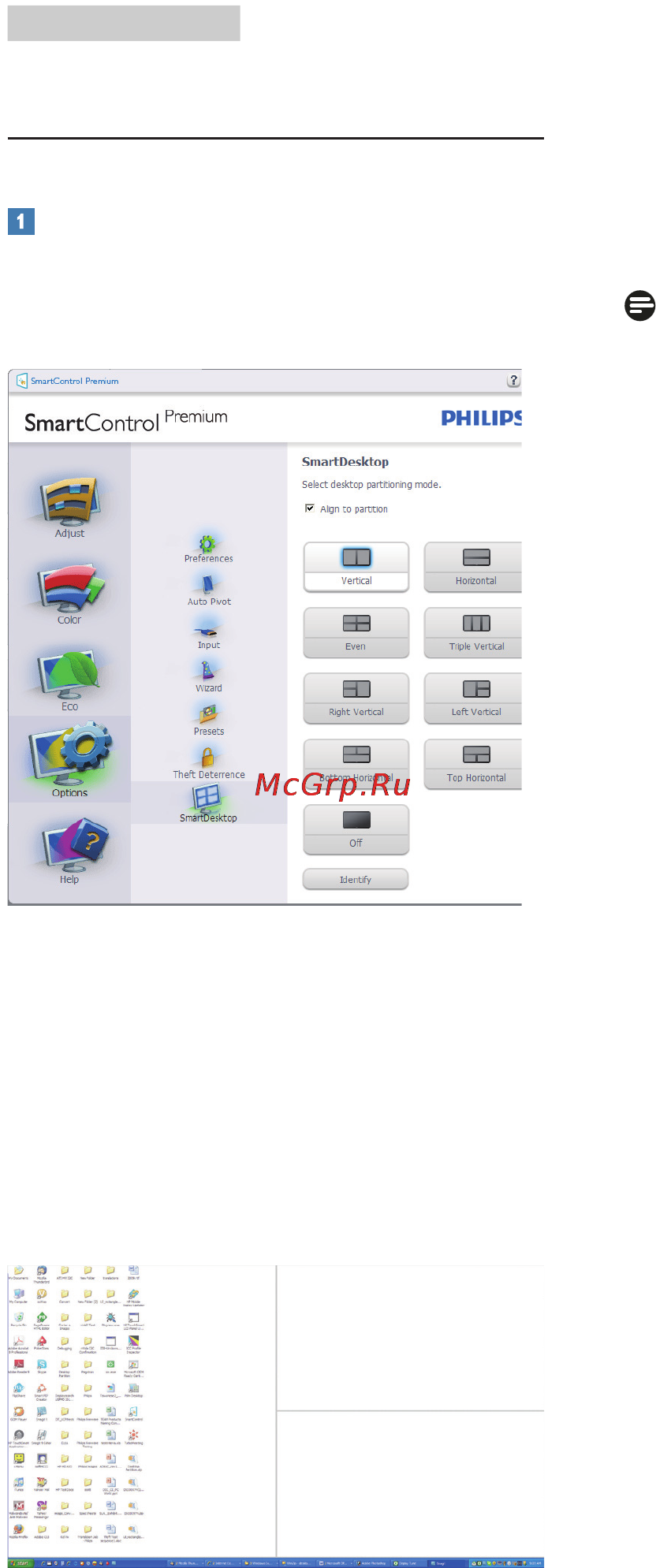

3.4 SmartDesktop Guide
SmartDesktop
SmartDesktop is in SmartControl Premium.
Install SmartControl Premium and select
SmartDesktop from Options.
• Align to partition check box will enable
automatic alignment for the window when
dragged into the defined partition.
• Select the desired partition by clicking on
the icon. The partition will be applied to
the desktop and the icon will be high-
lighted.
• Identify provides a quick way to view the
grid.
Drag and Drop Windows
Once the partitions are congured and Align to
partition is selected a window can be dragged
into the region and it will automatically align.
When the window and mouse cursor are within
the region, the region will become highlighted.
Note
If the outline of the region is not visible when
dragging the window, “Show windows contents
while dragging” is disabled. To enable:
1. In Control Panel, click System.
2. Click Advanced system settings (For Vista
& Win7 OS, this is located on the left
sidebar).
3. In Performance section, click Settings.
4. In the box, check Show window contents
while dragging, and click OK.
Other alternative path:
Vista:
Control Panel > Personalization > Window
Color and Appearance > Click "Open Classic
appearance properties for more color options"
> Click "Effects" button > check Show window
contents while dragging.
XP:
Display Properties>Appearance>Effects...>
check Show window contents while dragging.
Win 7:
No other alternative path available.
