5

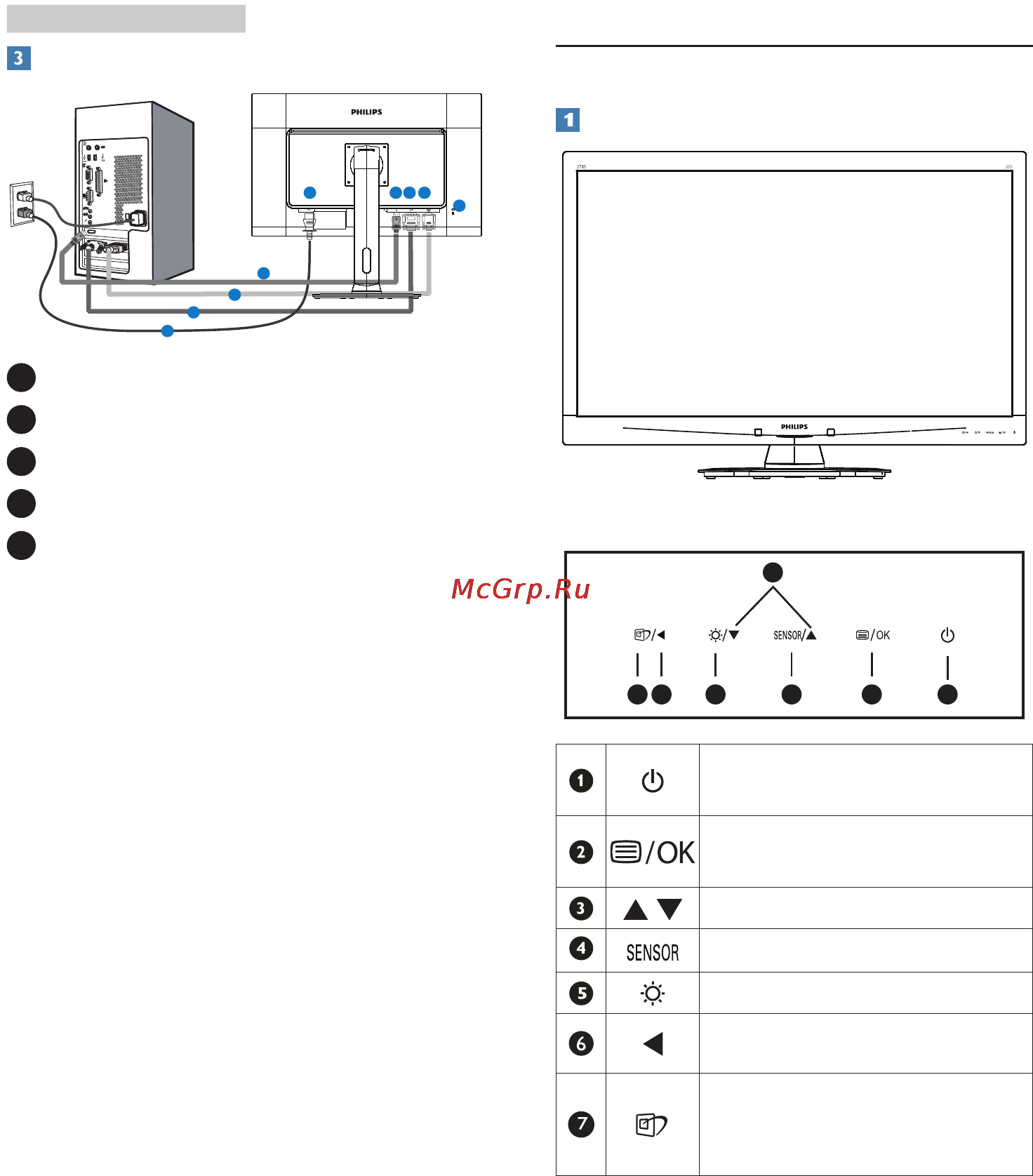

2. Setting up the monitor
Connecting to your PC
1 2 3 4
4
5
1
2
3
1
AC power input
2
DP input
3
DVI input
4
VGA input
5
Kensington anti-theft lock
Connect to PC
1. Connect the power cord to the back of
the monitor rmly.
2. Turn off your computer and unplug its
power cable.
3. Connect the monitor signal cable to the
video connector on the back of your
computer.
4. Plug the power cord of your computer and
your monitor into a nearby outlet.
5. Turn on your computer and monitor. If the
monitor displays an image, installation is
complete.
2.2 Operating the monitor
Description of the control buttons
7
6
25
4
3
1
Switch monitor’s power ON and
OFF.
Access the OSD menu
.
Conrm the OSD adjustment.
Adjust the OSD menu.
Power sensor.
Adjust the brightness level.
Return to previous OSD level.
SmartImage
hot key
. There are 6
modes to select: Ofce, Photo,
Movie, Game, Economy, Off.
