SERIAL
MODEL
6
Balanced Input Connector
These connectors connect the input signal of channel1 and channel 2 separately.
Balanced Output Connector
These two output connectors are paralleled inside with input connectors. It enables the unit work under
paralleled mode. Please also refer to wiring diagram for paralleled mode.
Mode Selector
Total two optional modes: Up for Stereo mode; Down for Bridge mode.
- Stereo
In this mode, Channel 1 and Channel 2 operate independently ( just as traditional stereo amplifier). The signal
input into channel 1 can be output from channel 1 only, similarly, the signal input into channel 2 can be output
from channel 2 only.
You can also operate the paralleled mode via outside wiring, so, the signal input from channel 1 or 2 will be output
from both channel 1 and 2 simultaneously. Details refer to the chapter 4.
- Bridge
In this mode, the signal input into channel 1 will be output from the bridged end, on other hand, the output
level control of channel 2 should be turn down to smallest.
Power Cord
You can connect the plug of power cord to the mains. Please make sure the voltage accepted by the unit . This
is IEC power cord.
.
Manual Reset Pushing-Button
This switch works as fuse for protecting the unit from damage. When the unit is overloaded or the temperature
inside the unit is too high, this pushing-button will spring up and break the power supply. The power supply will
be restored with pushing this switch down again.
Output Connector
These connectors have two kinds: Binding post and Neutrik connector. You can choose proper connectors
according to practical need. For your safety, please be careful when do connecting work.
Limter Switch
Set this switch at "ON" position, once the output level is above maximum output level, the clip begin, thus keeping
consistent output level for protecting apparatus. If the switch is set at "OFF", this clip function doesn't work.
11
8
9
10
12
13
14

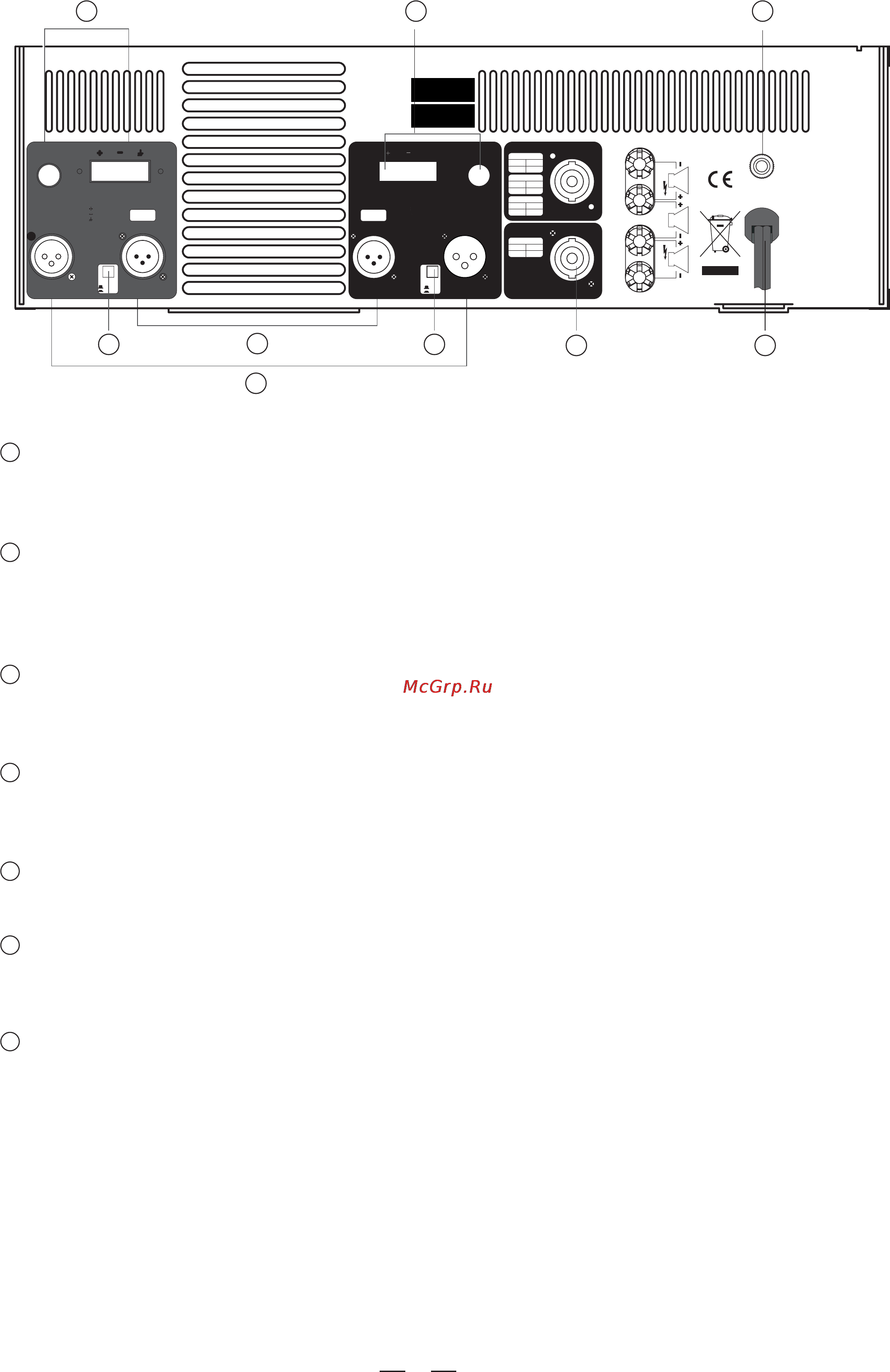

3.2 Rear Panel
14
12
13
12
9
10 8
1111
12
CH1
BALANCED
INPUT
BALANCED
INPUT
PARALLEL
OUTPUT
PARALLEL
OUTPUT
LIMITER
OFF
ON
CH2
BALANCED
INPUT
BALANCED
INPUT
PARALLEL
OUTPUT
PARALLEL
OUTPUT
MODE
BRIDGEBRIDGE
STEREO
CH1
OUTPUT1
OUTPUT2
POWER OUTPUTSPOWER OUTPUTS
CH1
1+ 1-
POS NEG
CH2
BRIDGE
MONO
BRIDGE
MONO
CH2
2+ 2-
POS NEG
BRIDGE
1+ 2+
POS NEG
CH2
1+ 1-
POS NEG
INPUT
INPUT
TIP/PIN 2TIP/PIN 2
RING/PIN 3RING/PIN 3
SLEEVE/PIN 1SLEEVE/PIN 1
TIP/PIN 2TIP/PIN 2
RING/PIN 3RING/PIN 3
SLEEVE/PIN 1SLEEVE/PIN 1
INPUT
BREAKER
INPUT
12
3
21
3
NEW TIDE
21
3
NEW TIDE
1
3
2
