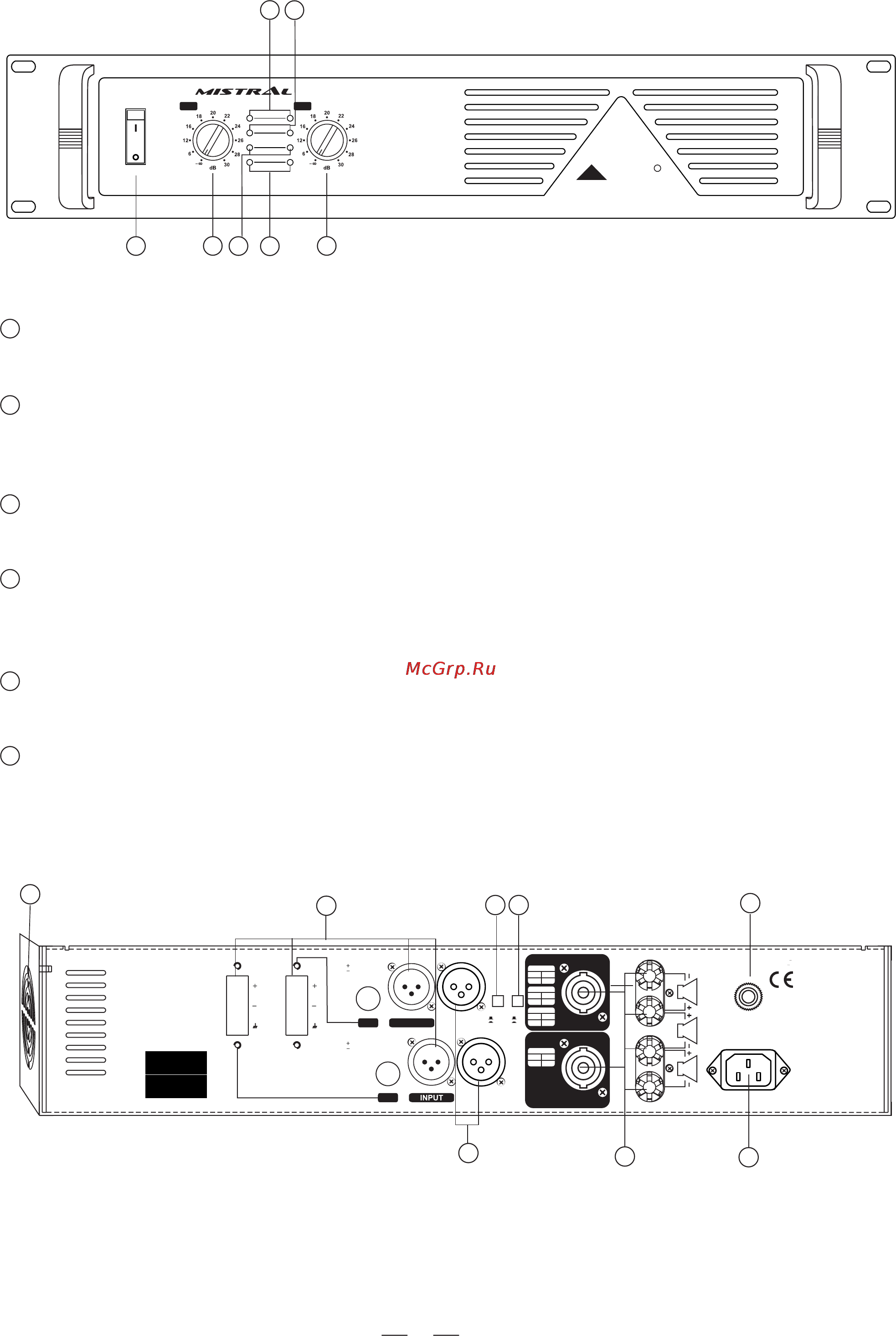

3. CONTROL ELEMENTS
3.1 Front Panel
15
2
4
6
3
6
12
14
7
8
11
13
9
Power Switch
Turn the unit power on or off.
Clip Led
When the signal distortion reaches or surpasses 0.5%, the Led lights up. This means the output level of signal
source is too high and it is time to reduce input level until clip led turning off.
Output Limiter Led
While the unit is limiting the output signal, the Led lighting up.
Operation and protection Led
When there presents signal, the yellow Led lighs up.
When at protection status, the Led is off.
Power Led
This Led lights up when the unit is powered.
Level Control for Channels1&2
Adjust the output signal level to avoid signal distortion.
