Assembly

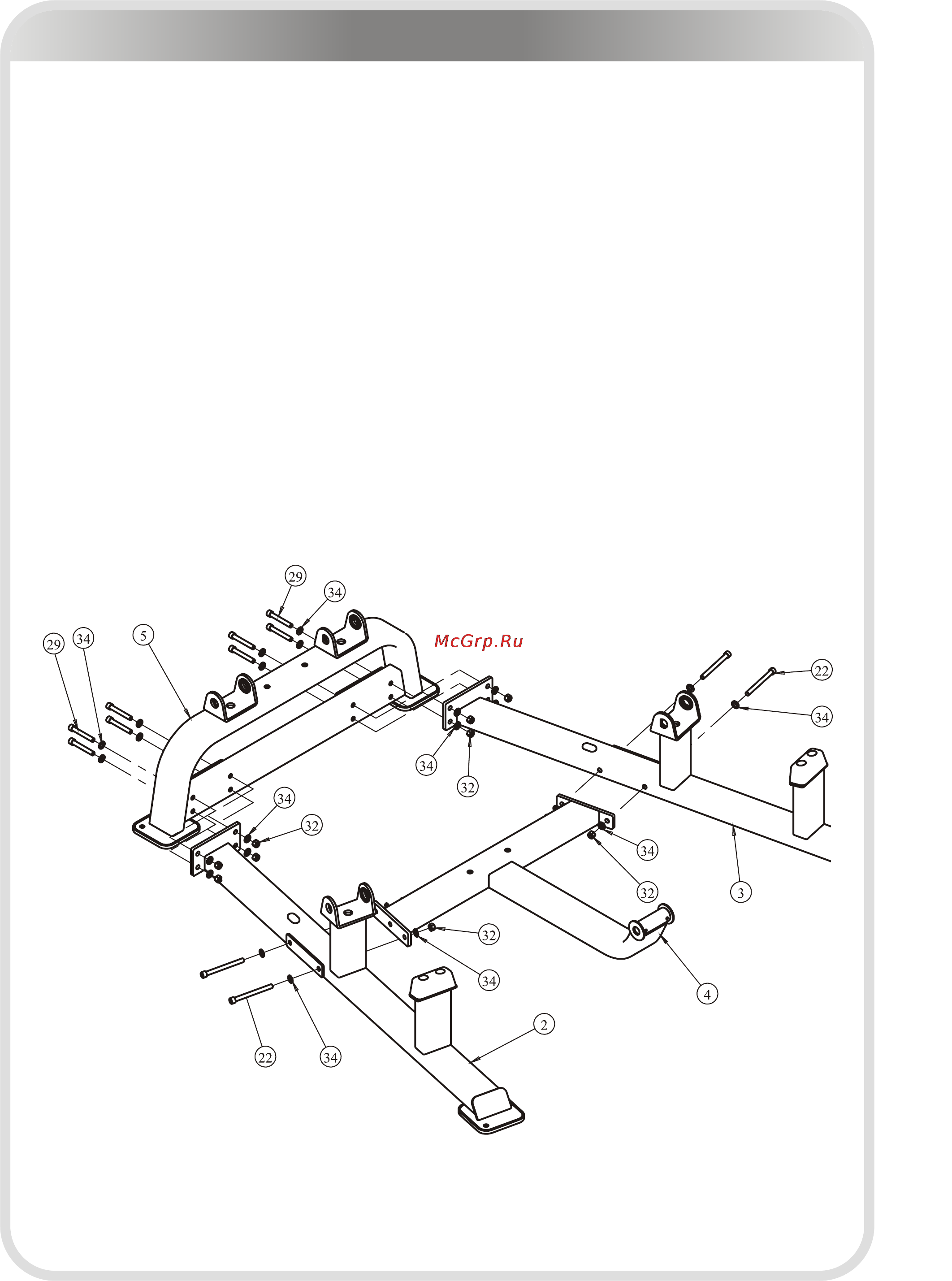

1. Attach Right Bottom Frame ASSY (#2) and Left Bottom Frame ASSY (#3) to Rear

Cross Frame ASSY (#5), using:

● eight M12*85 SHCS (#29)

● sixteen Φ13*Φ24*1.5 Flat Washer (#34)

● eight M12 Nylon lock Nuts (#32)

2. Attach Front Cross Frame ASSY (#4) to Right Bottom Frame ASSY (#2) and Left

Bottom Frame ASSY, using:

● four M12*135 SHCS (#22)

● eight Φ13*Φ24*1.5 Flat Washer (#34)

● four M12 Nylon lock Nuts (#32)

STEP 1
