Aerofit SL7024 [27/31] 页面 27

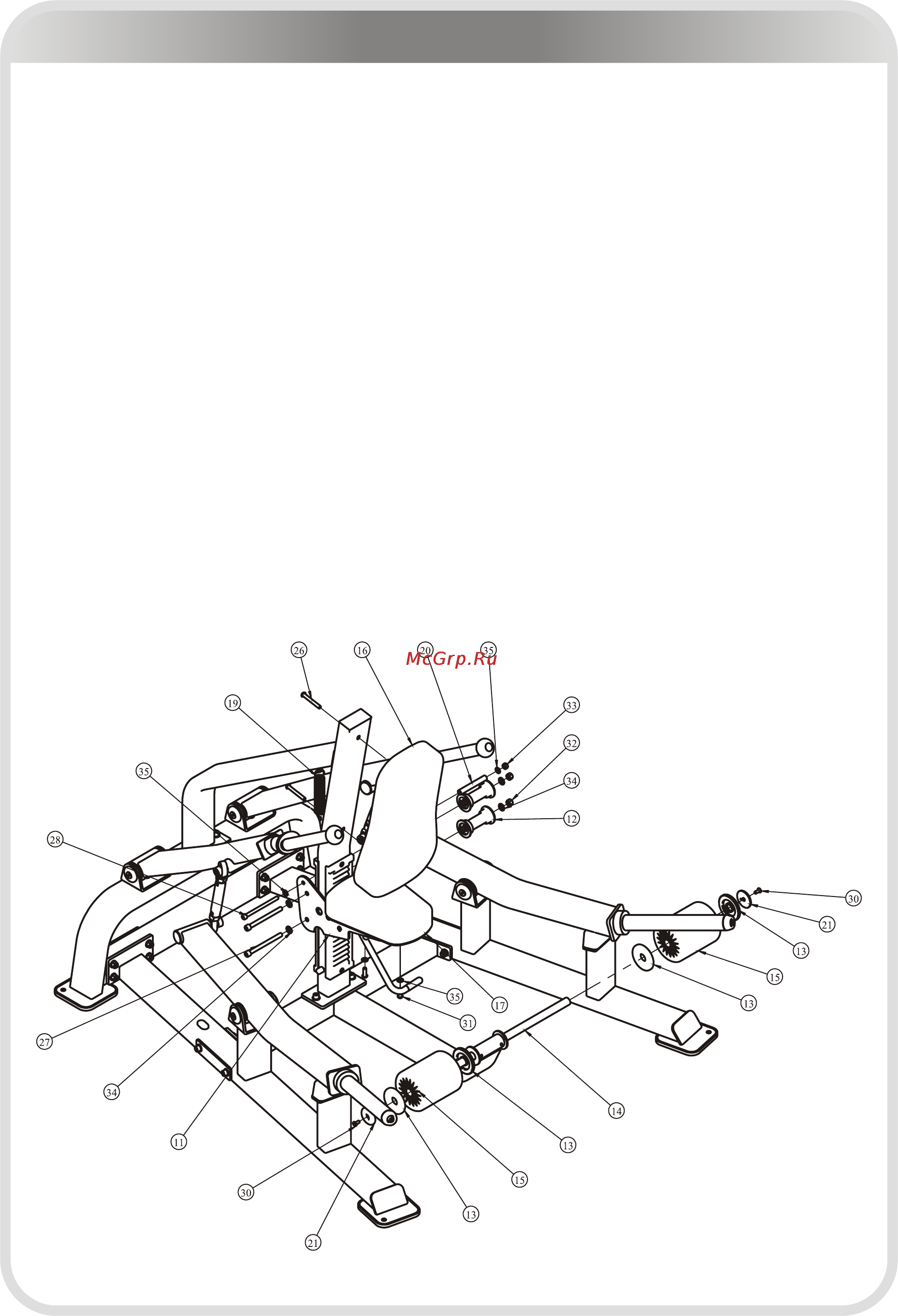

1. Attach Seat Pad (#17) to Seat Frame ASSY (#11), using:

● two M10*30 Button Head Cap Screw (#21) ● two Φ11*Φ20*2 Flat Washer (#35)

2. Attach Seat Frame ASSY (#11) to Upright ASSY (#1), using:

● two Idier Wheel ASSY (#12) ● two M12*145 SHCS (#27)

● fout Φ13*Φ24*1.5 Flat Washer (#34) ● two M12 Nylon Lock Nut (#32)

3. Attach Back Pad to Upright ASSY (#1), using:

● two M10*75 BHCS (#26) ● two Φ11*Φ20*2 Flat Washer (#35)

4. Attach Two Foam Tube Φ25*2.5*546 to Front Cross Frame ASSY (#4), using:

● two Φ54*Φ12.5*10.6 Domed Aluminium Cap (#21) ● two M10*25 FHCS (#30)

four 90* 26.2*8.5 Aluminium Shield

one 25*2.5*546 Foam Tube

Φ Φ

●

Note: Lock Foam Tube Φ25*2.5*546 (#14) using Two Set Screws of The Front

Cross Frame ASSY (#4).

5. Attach Pull Spring (#19) to Upright ASSY (#1) And Seat Frame ASSY (#11), using:

● one M10*145 SHCS (#28) ● two Φ11*Φ20*2 Flat Washer (#35)

● one Supporting Sleeve (#20)

● one M10 Nylon Lock Nut (#33)

─ 27 ─

Assembly

STEP 6
