Assembly

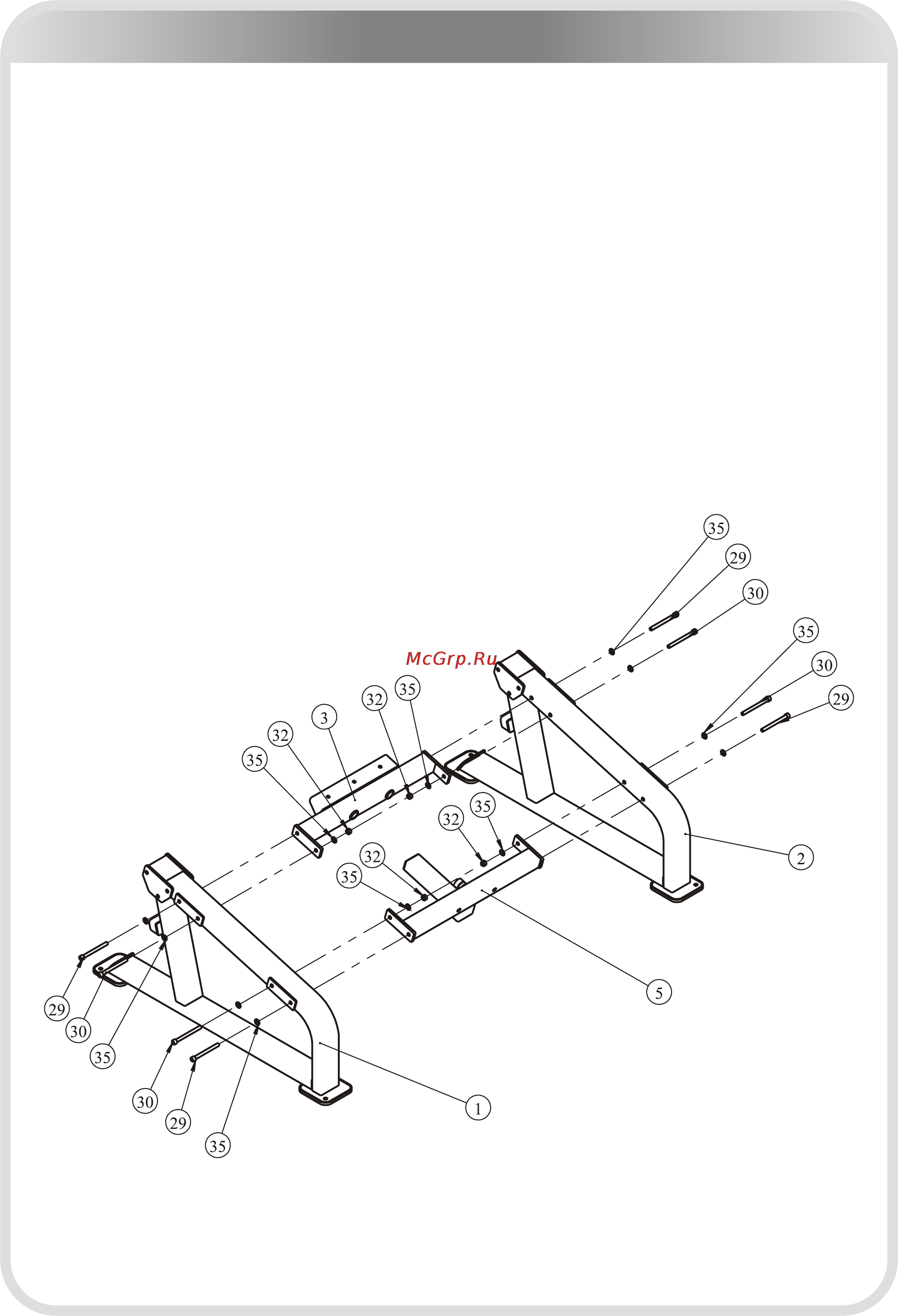

1. Attach the Front Seat Pad Frame Welding ASSY (#3) to the Left Upright Frame

ASSY (#1) and Right Upright Frame ASSY (#2), using:

● two M12*130 SHCS (#29)

● two M12*135 SHCS (#30)

● two M12 Nylon lock Nuts (#32)

● six Φ13* 24*1.5 Flat Washers (#35)

2. Attach the Rear Link Frame ASSY (#5) to the Left Upright Frame ASSY (#1) and

Right Upright Frame ASSY (#2), using:

● two M12*130 SHCS (#29)

● two M12*135 SHCS (#30)

● two M12 Nylon lock Nuts (#32)

● six Φ13*Φ24*1.5 Flat Washers (#35)

STEP 1
