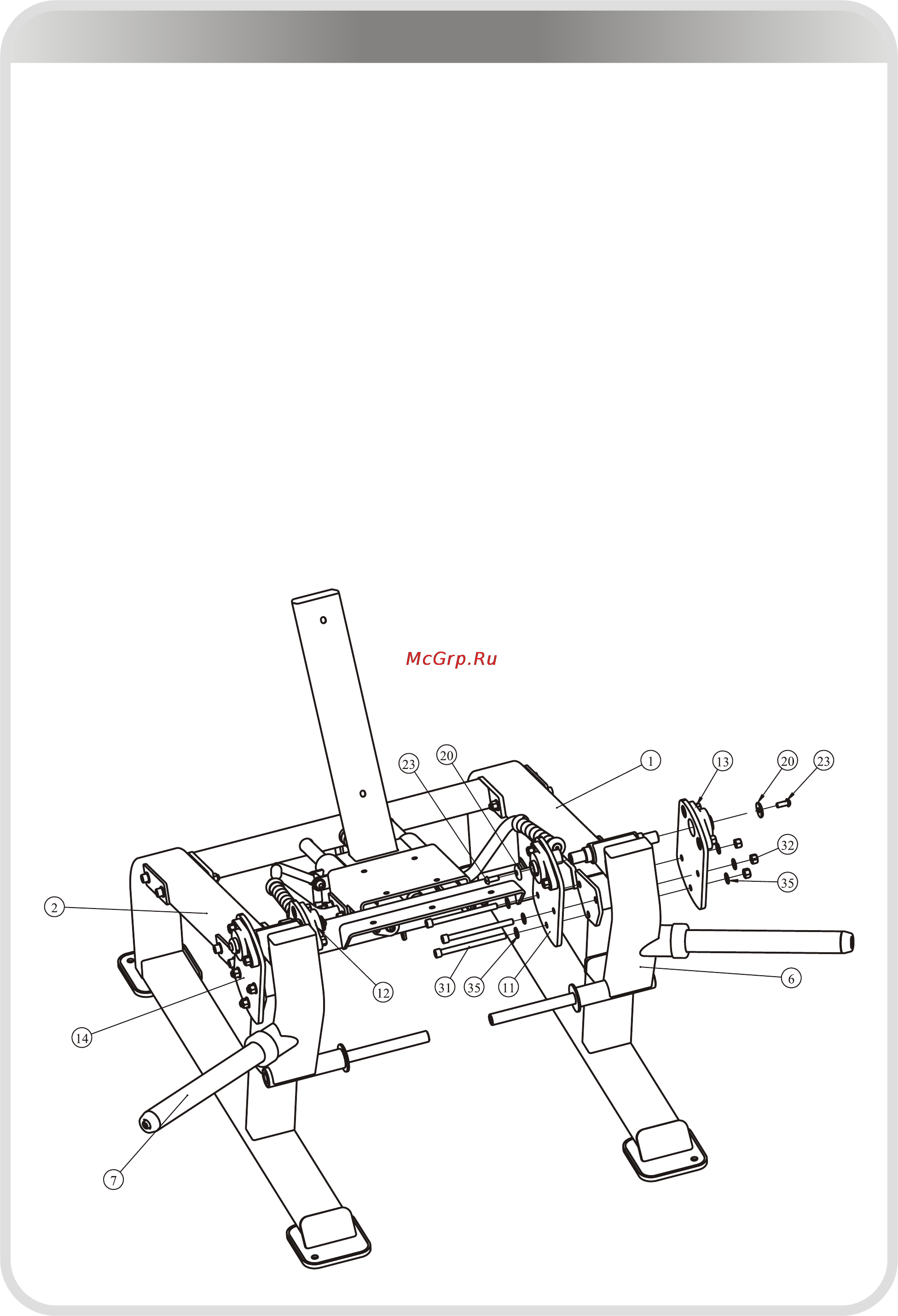

Assembly

STEP 4

1. Attach the Left Leg Frame ASSY (#6), Left Inside Bearing Fixed Plate ASSY (#11)

and Left Outside Bearing Fixed Plate ASSY (#13) to the Left Upright Frame ASSY

(#1), using:

● three M12*155 SHCS (#31)

● three M12 Nylon lock Nuts (#32)

● six Φ13*Φ24*1.5 Flat Washers (#35)

2. Attach the Right Leg Frame ASSY (#7), Right Inside Bearing Fixed Plate ASSY (#12)

and Right Outside Bearing Fixed Plate ASSY (#14) to the Right Upright Frame

ASSY (#2), using:

● three M12*155 SHCS (#31)

● three M12 Nylon lock Nuts (#32)

● six Φ13*Φ24*1.5 Flat Washers (#35)

3. Attach four Small Domed Caps (#14) to the Left Leg Frame ASSY (#6) and Right

Leg Frame ASSY (#7), using:

● four M10*20 BHCS (#23)
