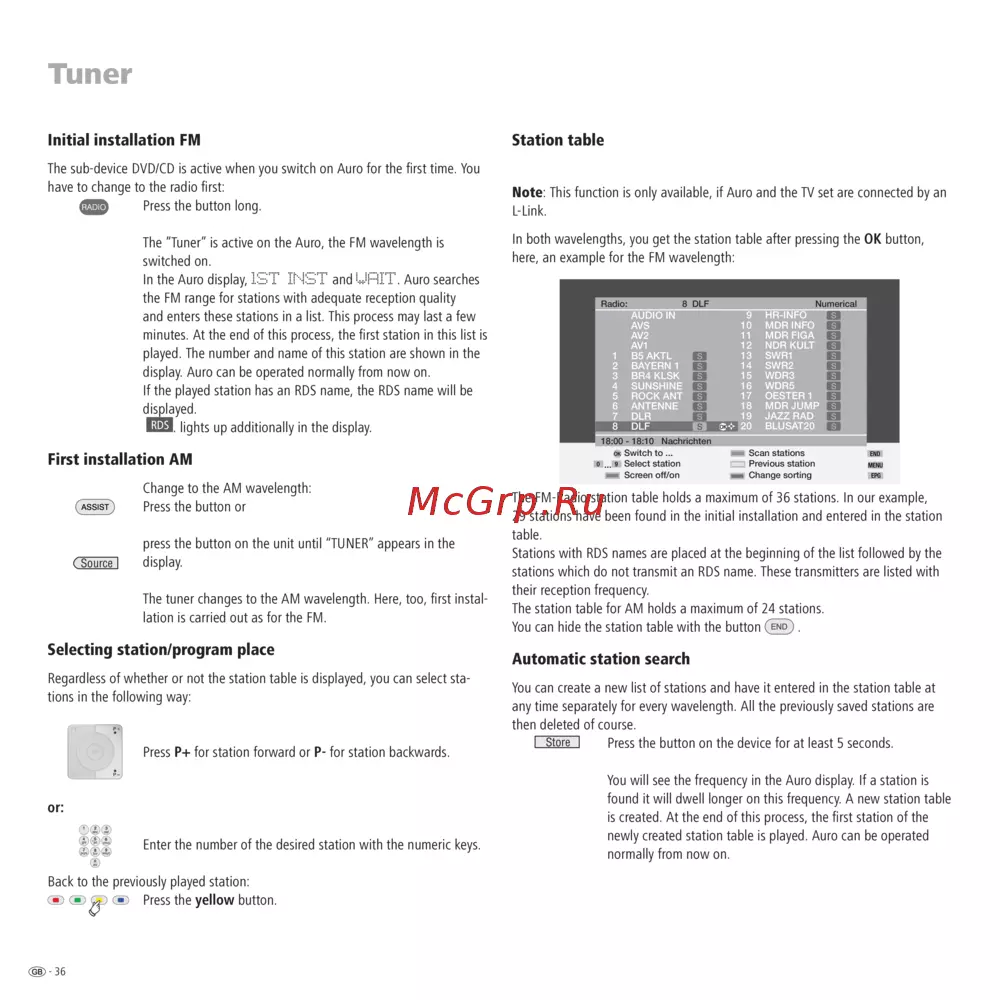

- 36
Tuner
Initial installation FM
The sub-device DVD/CD is active when you switch on Auro for the rst time. You
have to change to the radio rst:
Press the button long.
The ”Tuner” is active on the Auro, the FM wavelength is
switched on.
In the Auro display, 1ST INST and WAIT. Auro searches
the FM range for stations with adequate reception quality
and enters these stations in a list. This process may last a few
minutes. At the end of this process, the rst station in this list is
played. The number and name of this station are shown in the
display. Auro can be operated normally from now on.
If the played station has an RDS name, the RDS name will be
displayed.
RDS
. lights up additionally in the display.
First installation AM
Change to the AM wavelength:
Press the button or
press the button on the unit until “TUNER” appears in the
display.
Source
The tuner changes to the AM wavelength. Here, too, rst instal-
lation is carried out as for the FM.
Selecting station/program place
Regardless of whether or not the station table is displayed, you can select sta-
tions in the following way:
Press P+ for station forward or P- for station backwards.
or:
Enter the number of the desired station with the numeric keys.
Back to the previously played station:
Press the yellow button.
Station table
Note: This function is only available, if Auro and the TV set are connected by an
L-Link.
In both wavelengths, you get the station table after pressing the OK button,
here, an example for the FM wavelength:
END
Radio: 8 DLF Numerical
18:00 - 18:10 Nachrichten
AUDIO IN
AVS
AV2
AV1
1 B5 AKTL S
2 BAYERN 1 S
3 BR4 KLSK S
4 SUNSHINE S
5 ROCK ANT S
6 ANTENNE S
7 DLR S
8 DLF S
MENU
EPG
9 HR-INFO S
10 MDR INFO S
11 MDR FIGA S
12 NDR KULT S
13 SWR1 S
14 SWR2 S
15 WDR3 S
16 WDR5 S
17 OESTER 1 S
18 MDR JUMP S
19 JAZZ RAD S
20 BLUSAT20 S
OK
Switch to ... Scan stations
Select station Previous station
Screen off/on Change sorting
0 9
...
OK
The FM-Radio station table holds a maximum of 36 stations. In our example,
29 stations have been found in the initial installation and entered in the station
table.
Stations with RDS names are placed at the beginning of the list followed by the
stations which do not transmit an RDS name. These transmitters are listed with
their reception frequency.
The station table for AM holds a maximum of 24 stations.
You can hide the station table with the button .
Automatic station search
You can create a new list of stations and have it entered in the station table at
any time separately for every wavelength. All the previously saved stations are
then deleted of course.
Press the button on the device for at least 5 seconds.
Store
You will see the frequency in the Auro display. If a station is
found it will dwell longer on this frequency. A new station table
is created. At the end of this process, the rst station of the
newly created station table is played. Auro can be operated
normally from now on.
