9 -
First installation
Wiring Loewe Flat TV – Auro – Individual Sound/Tremo

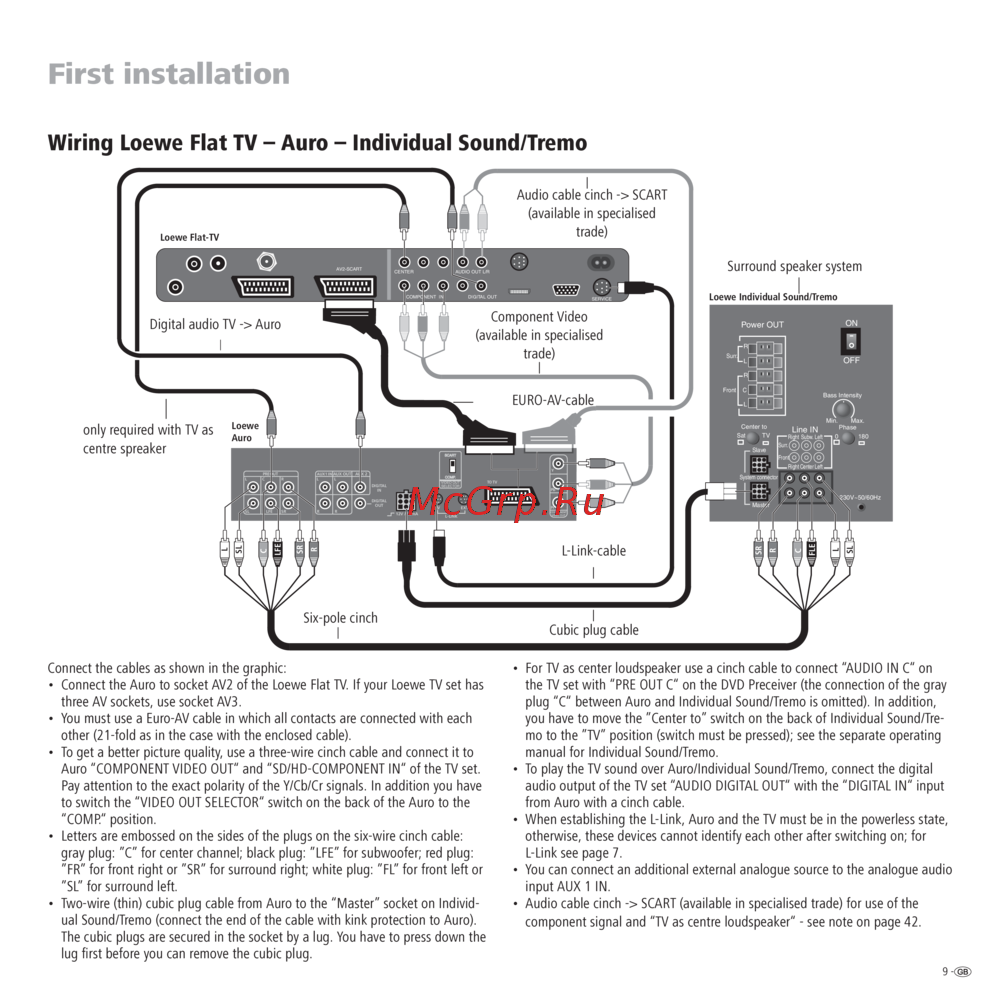

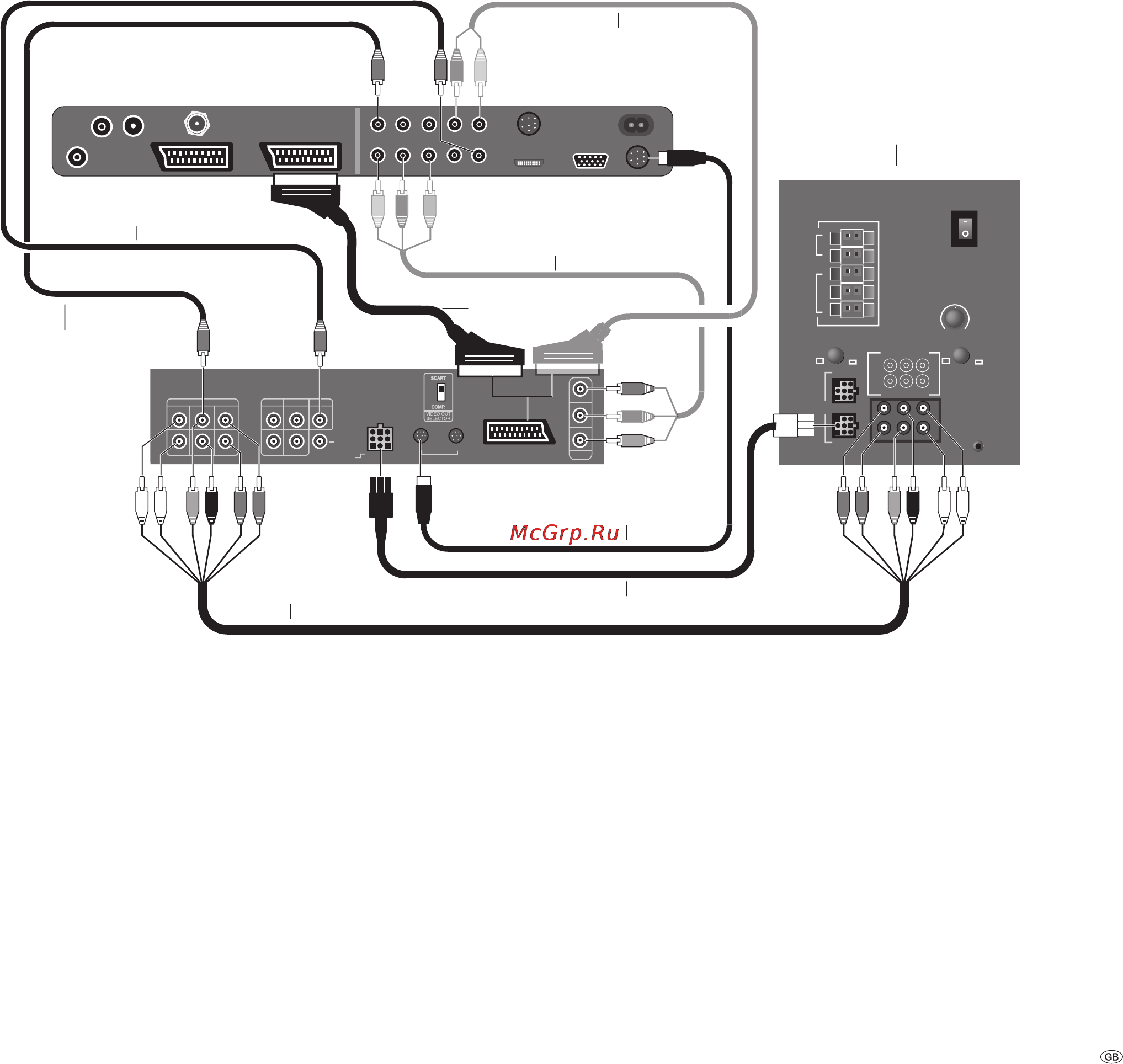

Connect the cables as shown in the graphic:
Connect the Auro to socket AV2 of the Loewe Flat TV. If your Loewe TV set has
three AV sockets, use socket AV3.
You must use a Euro-AV cable in which all contacts are connected with each
other (21-fold as in the case with the enclosed cable).
To get a better picture quality, use a three-wire cinch cable and connect it to
Auro “COMPONENT VIDEO OUT“ and “SD/HD-COMPONENT IN“ of the TV set.
Pay attention to the exact polarity of the Y/Cb/Cr signals. In addition you have
to switch the “VIDEO OUT SELECTOR“ switch on the back of the Auro to the
“COMP.“ position.
Letters are embossed on the sides of the plugs on the six-wire cinch cable:
gray plug: ”C” for center channel; black plug: ”LFE” for subwoofer; red plug:
”FR” for front right or ”SR” for surround right; white plug: ”FL” for front left or
”SL” for surround left.
Two-wire (thin) cubic plug cable from Auro to the “Master” socket on Individ-
ual Sound/Tremo (connect the end of the cable with kink protection to Auro).
The cubic plugs are secured in the socket by a lug. You have to press down the
lug rst before you can remove the cubic plug.
•
•
•
•
•
For TV as center loudspeaker use a cinch cable to connect “AUDIO IN C“ on
the TV set with “PRE OUT C“ on the DVD Preceiver (the connection of the gray
plug “C“ between Auro and Individual Sound/Tremo is omitted). In addition,
you have to move the ”Center to” switch on the back of Individual Sound/Tre-
mo to the ”TV” position (switch must be pressed); see the separate operating
manual for Individual Sound/Tremo.
To play the TV sound over Auro/Individual Sound/Tremo, connect the digital
audio output of the TV set “AUDIO DIGITAL OUT“ with the “DIGITAL IN“ input
from Auro with a cinch cable.
When establishing the L-Link, Auro and the TV must be in the powerless state,
otherwise, these devices cannot identify each other after switching on; for
L-Link see page 7.
You can connect an additional external analogue source to the analogue audio
input AUX 1 IN.
Audio cable cinch -> SCART (available in specialised trade) for use of the
component signal and “TV as centre loudspeaker“ - see note on page 42.
•
•
•
•
•
