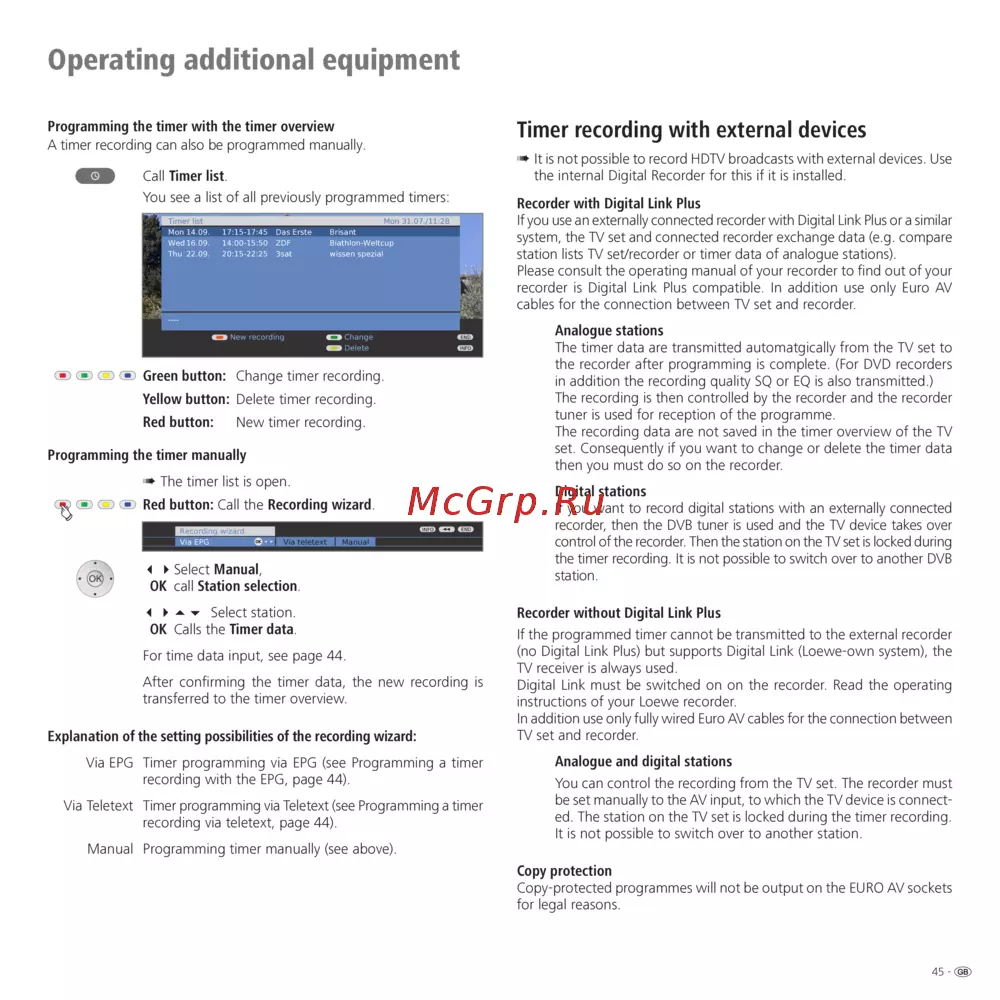

45 -
Oper�ting �ddition�l equipment
Programming the timer with the timer overview
A timer recording can also be programmed manually.
Call Timer list.
You see a list of all previously programmed timers:
Green button: Change timer recording.
Yellow button: Delete timer recording.
Red button: New timer recording.
Programming the timer manually
➠ The timer list is open.
Red button: Call the Recording wizard.
34Select Manual,
OK call Station selection.
346Select station.
OK Calls the Timer data.
For time data input, see page 44.
After confirming the timer data, the new recording is
transferred to the timer overview.
Explanation of the setting possibilities of the recording wizard:
Via EPG Timer programming via EPG (see Programming a timer
recording with the EPG, page 44).
Via Teletext Timer programming via Teletext (see Programming a timer
recording via teletext, page 44).
Manual Programming timer manually (see above).
Timer recording with external devices
➠ It is not possible to record HDTV broadcasts with external devices. Use
the internal Digital Recorder for this if it is installed.
Recorder with Digital Link Plus
If you use an externally connected recorder with Digital Link Plus or a similar
system, the TV set and connected recorder exchange data (e.g. compare
station lists TV set/recorder or timer data of analogue stations).
Please consult the operating manual of your recorder to find out of your
recorder is Digital Link Plus compatible. In addition use only Euro AV
cables for the connection between TV set and recorder.
Analogue stations
The timer data are transmitted automatgically from the TV set to
the recorder after programming is complete. (For DVD recorders
in addition the recording quality SQ or EQ is also transmitted.)
The recording is then controlled by the recorder and the recorder
tuner is used for reception of the programme.
The recording data are not saved in the timer overview of the TV
set. Consequently if you want to change or delete the timer data
then you must do so on the recorder.
Digital stations
If you want to record digital stations with an externally connected
recorder, then the DVB tuner is used and the TV device takes over
control of the recorder. Then the station on the TV set is locked during
the timer recording. It is not possible to switch over to another DVB
station.
Recorder without Digital Link Plus
If the programmed timer cannot be transmitted to the external recorder
(no Digital Link Plus) but supports Digital Link (Loewe-own system), the
TV receiver is always used.
Digital Link must be switched on on the recorder. Read the operating
instructions of your Loewe recorder.
In addition use only fully wired Euro AV cables for the connection between
TV set and recorder.
Analogue and digital stations
You can control the recording from the TV set. The recorder must
be set manually to the AV input, to which the TV device is connect-
ed. The station on the TV set is locked during the timer recording.
It is not possible to switch over to another station.
Copy protection
Copy-protected programmes will not be output on the EURO AV sockets
for legal reasons.
END
INFO
Timer list Mon 31.07./11:28
Mon 14.09. 17:15-17:45 Das Erste Brisant
Wed 16.09. 14:00-15:50 ZDF Biathlon-Weltcup
Thu 22.09. 20:15-22:25 3sat wissen spezial
----
Change
Delete
New recording
END
OK
INFO
Via teletextVia EPG
Recording wizard
Manual
