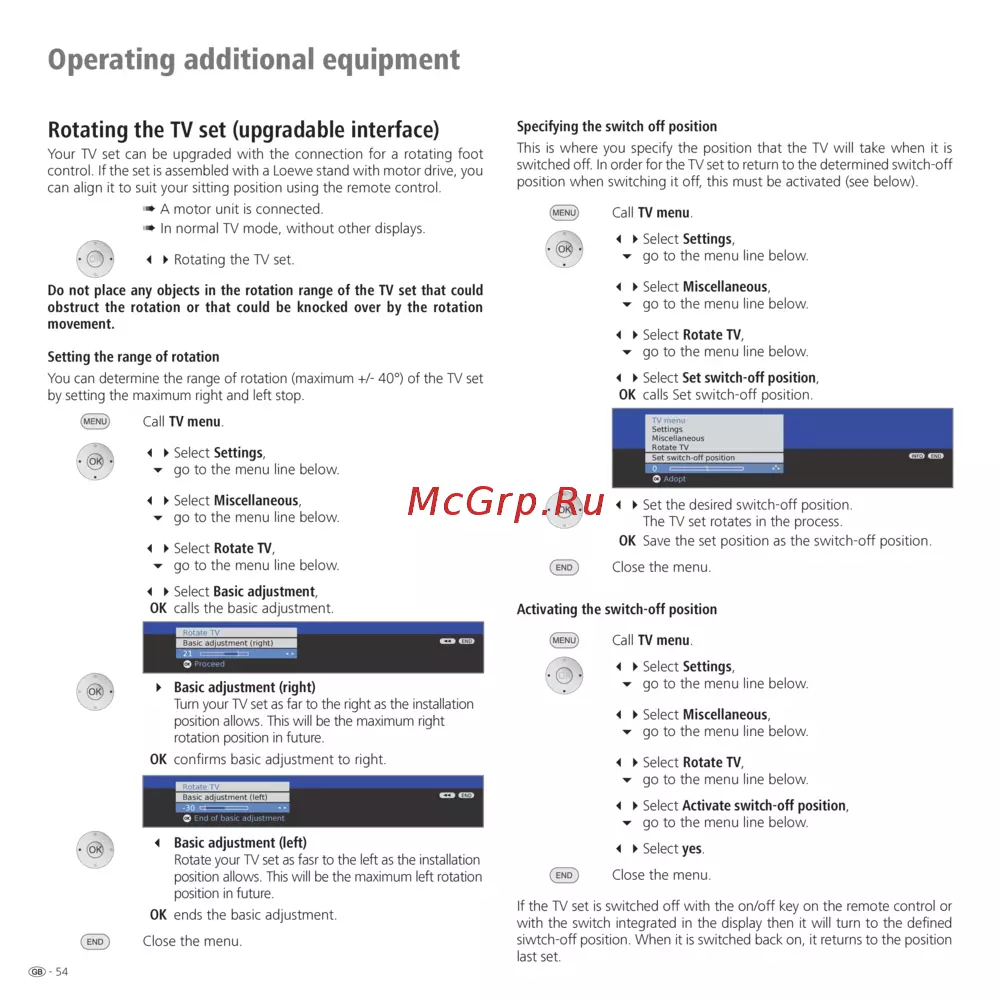

Rotating the TV set (upgradable interface)
Your TV set can be upgraded with the connection for a rotating foot
control. If the set is assembled with a Loewe stand with motor drive, you
can align it to suit your sitting position using the remote control.
➠ A motor unit is connected.
➠ In normal TV mode, without other displays.
34 Rotating the TV set.
Do not place any objects in the rotation range of the TV set that could
obstruct the rotation or that could be knocked over by the rotation
movement.
Setting the range of rotation
You can determine the range of rotation (maximum +/- 40°) of the TV set
by setting the maximum right and left stop.
Call TV menu.
34 Select Settings,
6go to the menu line below.
34Select Miscellaneous,
6go to the menu line below.
34Select Rotate TV,
6go to the menu line below.
34Select Basic adjustment,
OK calls the basic adjustment.
4Basic adjustment (right)
Turn your TV set as far to the right as the installation
position allows. This will be the maximum right
rotation position in future.
OK confirms basic adjustment to right.
3Basic adjustment (left)
Rotate your TV set as fasr to the left as the installation
position allows. This will be the maximum left rotation
position in future.
OK ends the basic adjustment.
Close the menu.
Specifying the switch off position
This is where you specify the position that the TV will take when it is
switched off. In order for the TV set to return to the determined switch-off
position when switching it off, this must be activated (see below).
Call TV menu.
34 Select Settings,
6go to the menu line below.
34Select Miscellaneous,
6go to the menu line below.
34Select Rotate TV,
6go to the menu line below.
34Select Set switch-off position,
OK calls Set switch-off position.
34Set the desired switch-off position.
The TV set rotates in the process.
OK Save the set position as the switch-off position.
Close the menu.
Activating the switch-off position
Call TV menu.
34 Select Settings,
6go to the menu line below.
34Select Miscellaneous,
6go to the menu line below.
34Select Rotate TV,
6go to the menu line below.
34Select Activate switch-off position,
6go to the menu line below.
34Select yes.
Close the menu.
If the TV set is switched off with the on/off key on the remote control or
with the switch integrated in the display then it will turn to the defined
siwtch-off position. When it is switched back on, it returns to the position
last set.
Oper�ting �ddition�l equipment
END
OK
21
Basic adjustment (right)
Rotate TV
Proceed
END
OK
-30
Basic adjustment (left)
Rotate TV
End of basic adjustment
END
INFO
OK
0
Set switch-off position
TV menu
Settings
Miscellaneous
Rotate TV
Adopt
