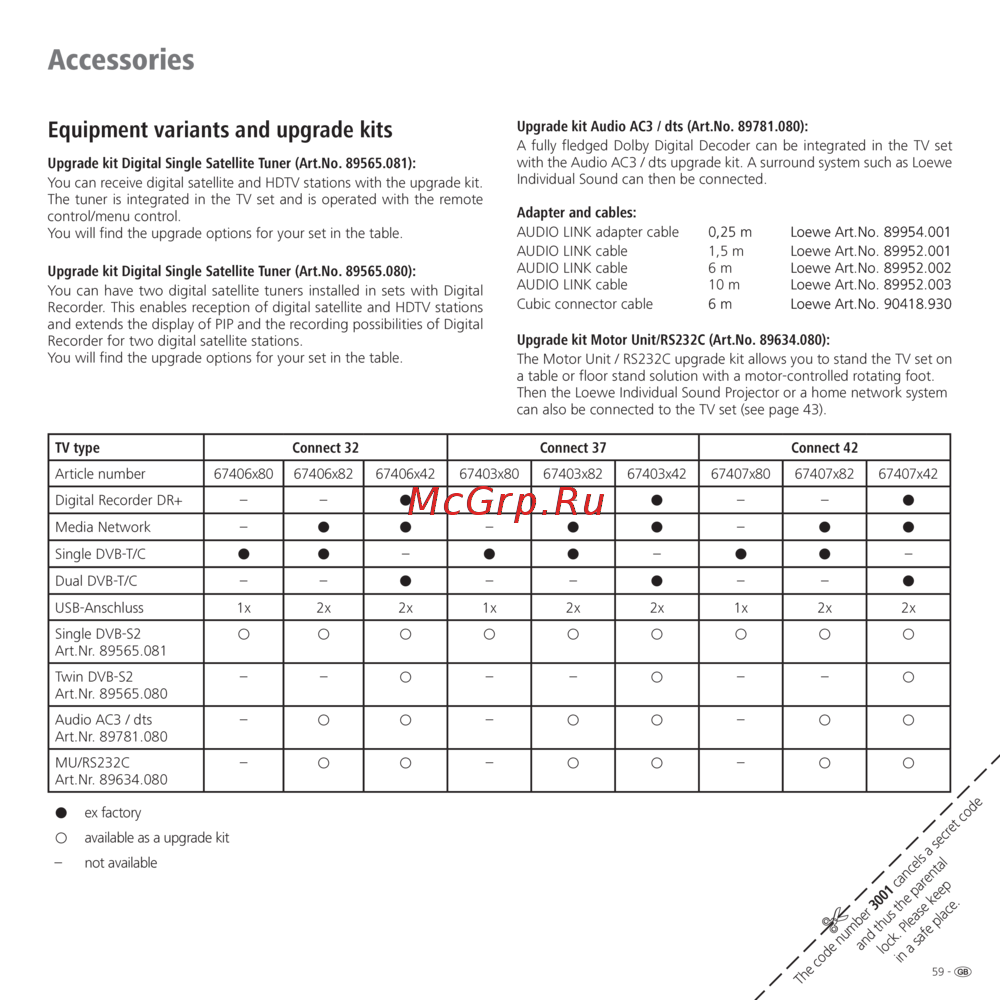

Accessories
Equipment variants and upgrade kits
Upgrade kit Digital Single Satellite Tuner (Art.No. 89565.081):
You can receive digital satellite and HDTV stations with the upgrade kit.
The tuner is integrated in the TV set and is operated with the remote
control/menu control.
You will find the upgrade options for your set in the table.
Upgrade kit Digital Single Satellite Tuner (Art.No. 89565.080):
You can have two digital satellite tuners installed in sets with Digital
Recorder. This enables reception of digital satellite and HDTV stations
and extends the display of PIP and the recording possibilities of Digital
Recorder for two digital satellite stations.
You will find the upgrade options for your set in the table.
The code number 3001 cancels a secret code
and thus the parental
lock. Please keep
in a safe place.
Upgrade kit Audio AC3 / dts (Art.No. 89781.080):
A fully fledged Dolby Digital Decoder can be integrated in the TV set
with the Audio AC3 / dts upgrade kit. A surround system such as Loewe
Individual Sound can then be connected.
Adapter and cables:
AUDIO LINK adapter cable 0,25 m Loewe Art.No. 89954.001 0,25 m Loewe Art.No. 89954.001Loewe Art.No. 89954.001 89954.001
AUDIO LINK cable 1,5 m Loewe Art.No. 89952.001Loewe Art.No. 89952.001 89952.001
AUDIO LINK cable 6 m Loewe Art.No. 89952.002Loewe Art.No. 89952.002 89952.002
AUDIO LINK cable 10 m Loewe Art.No. 89952.003Loewe Art.No. 89952.003 89952.003
Cubic connector cable 6 m Loewe Art.No. 90418.930 6 m Loewe Art.No. 90418.930Loewe Art.No. 90418.930 90418.930
Upgrade kit Motor Unit/RS232C (Art.No. 89634.080):
The Motor Unit / RS232C upgrade kit allows you to stand the TV set on
a table or floor stand solution with a motor-controlled rotating foot.
Then the Loewe Individual Sound Projector or a home network system
can also be connected to the TV set (see page 43).
TV type Connect 32 Connect 37 Connect 42
Article number 67406x80 67406x82 67406x42 67403x80 67403x82 67403x42 67407x80 67407x82 67407x42
Digital Recorder DR+ – –
– –
– –
Media Network –
–
–
Single DVB-T/C
–
–
–
Dual DVB-T/C – –
– –
– –
USB-Anschluss 1x 2x 2x 1x 2x 2x 1x 2x 2x
Single DVB-S2
Art.Nr. 89565.081
Twin DVB-S2
Art.Nr. 89565.080
– –
– –
– –
Audio AC3 / dts
Art.Nr. 89781.080
–
–
–
MU/RS232C
Art.Nr. 89634.080
–
–
–
