![Loewe Individual 40 Compose Full-HD+ [8/60] For your safety](/img/pdf.png)
Loewe Individual 40 Compose Full-HD+ [8/60] For your safety
![Loewe Individual 40 Compose Full-HD+ [8/60] For your safety](/views2/1013726/page8/bg8.png)
- 8
For your own safety and to prevent unnecessary damage to your device,
read and comply with the following safety instructions:
Proper use and environmental conditions
This TV set is designed exclusively for reception and reproduction of
video and audio signals and is designed for living rooms or office facilities,
and should not be operated in rooms with high
humidity, such as a
bathroom, or sauna, or where there is a high
concentration of dust (e.g.
workshops).
If the set is used outdoors ensure that it is protected against
moisture
(rain, splashing water, or dew). High humidity and dust concentrations
cause leak currents in the device, which can cause a shock hazard if the
device is touched, or a fire.
If you have brought the set into a warm environment from the
cold, then
wait for about 1 hour before switching it on to avoid formation of
con-
densation.

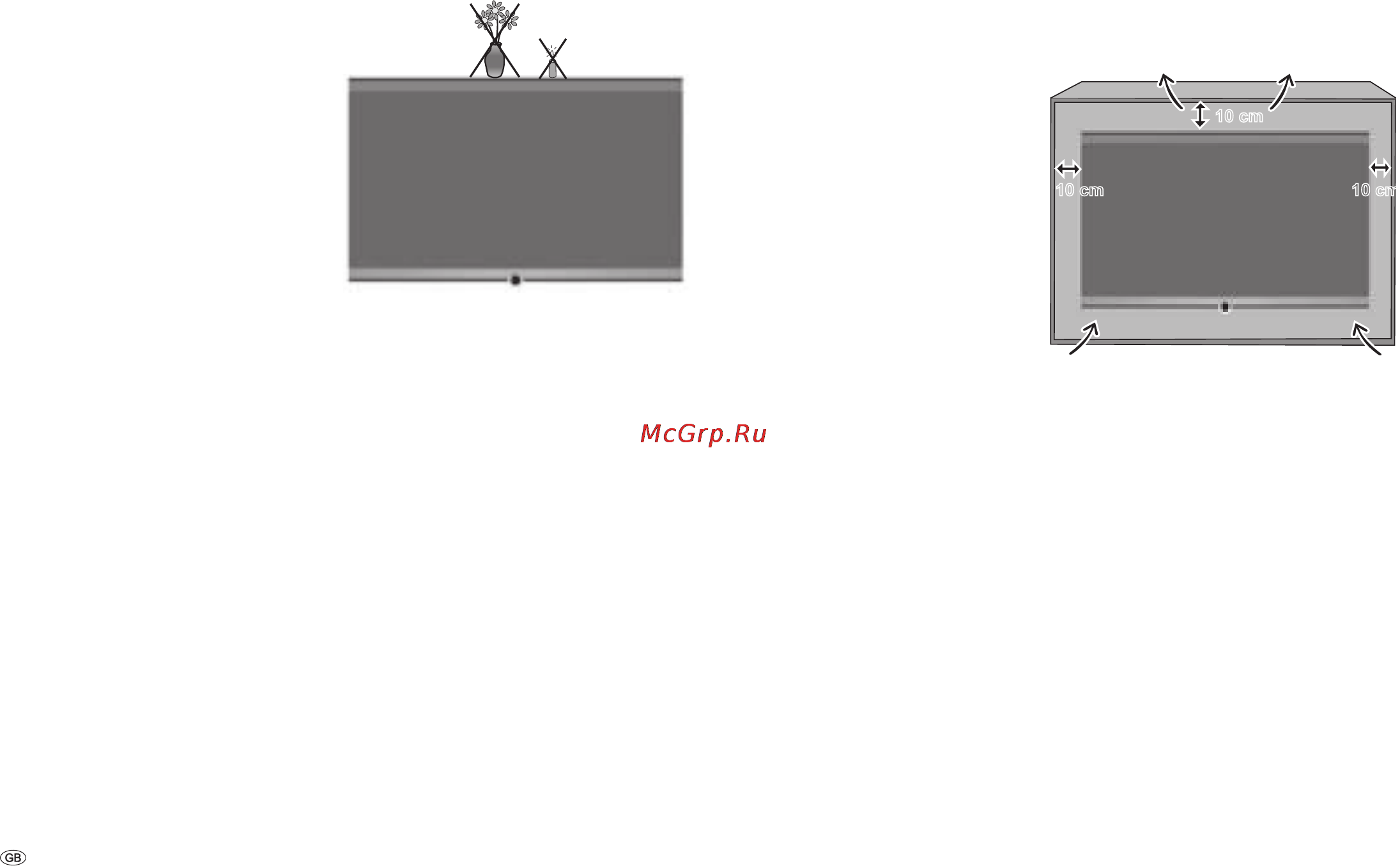

Do not place any
objects filled
with
liquid or burning candles on
the device.
The manufacturer‘s warranty is
only valid for use in the specified
permissible environment.
Do not install the TV where there
may be
vibrations. This can lead
to material overload.
Transporting
Only transport the device in
vertical position. Grasp the device on the
upper and lower edges of the housing. Never set the TV down on the
protruding control unit on the bottom of the TV set. This could damage
the control unit.
If the set has to be put down during packing/unpacking, place the TV
set with the entire front surface lying flat on a soft underlay such as a
blanket or the felt from the packing material.
The LCD screen is made of glass or plastic and can break if not handled
properly.
If the LCD screen is damaged and
liquid crystal escapes, wear rubber
gloves when moving the device. In the case of
skin contact immediately
wash thoroughly with water.
Power supply
The
wrong voltage can damage the set. This equipment must only be
connected to a mains power supply which has the same voltage and
frequency as that specified on the rating plate; use the mains cable
provided. The
mains plug of the TV set must be easily accessible so that
the device can be disconnected from the mains at any time. When you
unplug the mains plug, do not pull on the
cable rather pull on the plug
housing. The cable in the mains plug could be damaged and cause a
short circuit the next time it is plugged in.
Lay out the
mains cable in such a manner that it cannot be damaged.
The mains cable must not be kinked or laid over sharp edges, stepped
on or exposed to
chemicals; The latter also applies for the entire equip-
ment. A mains cable with damaged insulation can cause
electrical shock
and is a
fire hazard.
Air circulation and high temperatures
The
vent slots on the rear panel of the set must always be kept free.
Please do not place newspapers or cloths on/over the TV.
Ensure that there is at least 10
cm free space on the sides and
above the set for air circulation,
if the set is placed in a
cabinet
or on a
shelf.
Like any electronic device, your
TV set requires air for cooling.
Obstruction of the air circula
-
tion can cause fires.
The set is suitable for different
installation solutions. See the
instructions for assembly for the different installation solutions.
Stand the TV set with the table or floor stand only on a level,
sturdy,
horizontal base. Particularly ensure that the set does not protrude to the
front when placed in or on pieces of furniture.
Set up the device where it is not exposed to direct
sunlight and where it
is not exposed to additional warming through
heating elements.
Prevent
metal items, needles, paper clips, liquids, wax, or similar items,
from getting into the interior of the device through the
vent slots in the
rear panel. Such objects can cause
short circuits in the set, which could
possibly cause a fire.
If something should get into the
interior of the set then immediately
unplug the mains plug of the device and contact
customer service for
more information.
For your safety
10 cm
10 cm 10 cm
