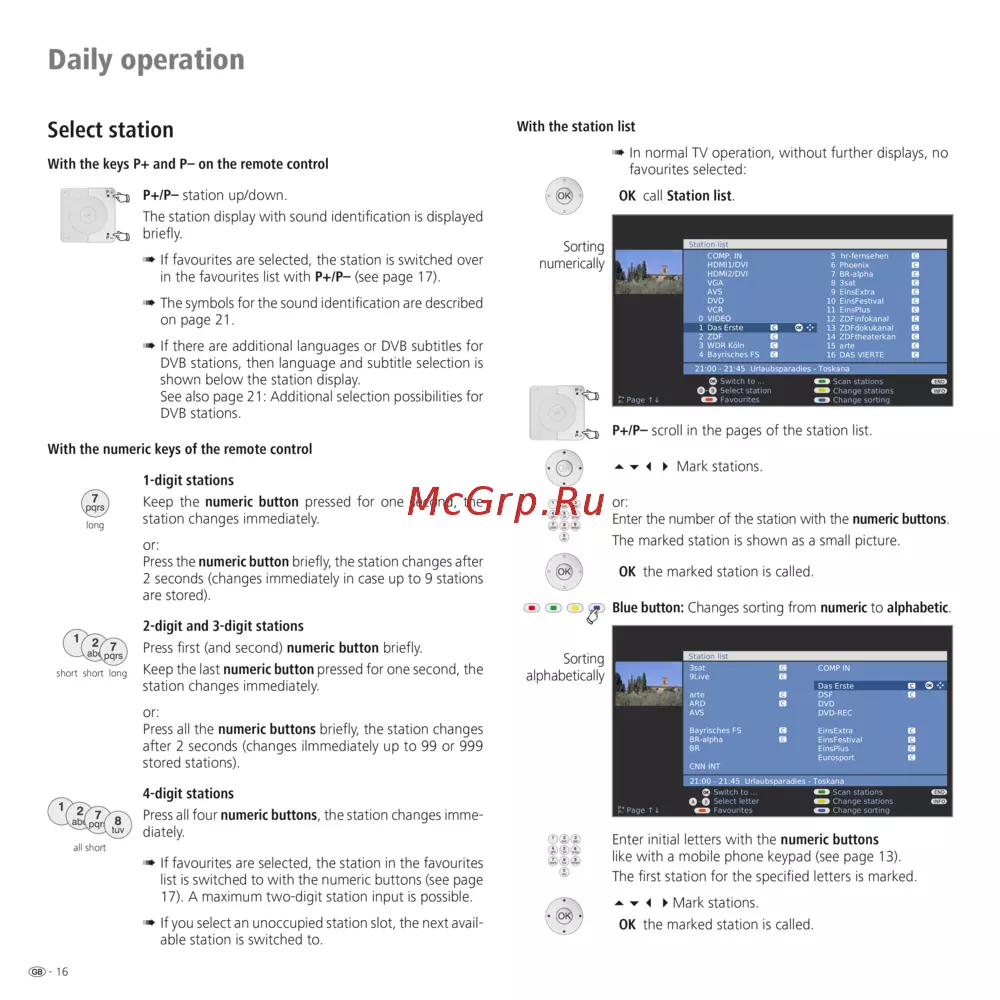

-16
Select station
With the keys P+ and P– on the remote control
P+/P– station up/down.
The station display with sound identification is displayed
briefly.
If favourites are selected, the station is switched over
in the favourites list with P+/P– (see page 17).
The symbols for the sound identification are described
on page 21.
If there are additional languages or DVB subtitles for
DVB stations, then language and subtitle selection is
shown below the station display.
See also page 21: Additional selection possibilities for
DVB stations.
With the numeric keys of the remote control
1-digit stations
Keep the numeric button pressed for one second, the
station changes immediately.
or:
Press the numeric button briefly, the station changes after
2 seconds (changes immediately in case up to 9 stations
are stored).
2-digit and 3-digit stations
Press first (and second) numeric button briefly.
Keep the last numeric button pressed for one second, the
station changes immediately.
or:
Press all the numeric buttons briefly, the station changes
after 2 seconds (changes ilmmediately up to 99 or 999
stored stations).
4-digit stations
Press all four numeric buttons, the station changes imme-
diately.
If favourites are selected, the station in the favourites
list is switched to with the numeric buttons (see page
17). A maximum two-digit station input is possible.
If you select an unoccupied station slot, the next avail-
able station is switched to.
With the station list
In normal TV operation, without further displays, no
favourites selected:
OK call Station list.
P+/P– scroll in the pages of the station list.
Mark stations.
or:
Enter the number of the station with the numeric buttons.
The marked station is shown as a small picture.
OK the marked station is called.
Blue button: Changes sorting from numeric to alphabetic.
Enter initial letters with the numeric buttons
like with a mobile phone keypad (see page 13).
The first station for the specified letters is marked.
Mark stations.
OK the marked station is called.
END
INFO
09
-
OK
OK
P+
P–
Station list
21:00 - 21:45 Urlaubsparadies - Toskana
Scan stations
Change stations
Change sorting
COMP. IN
HDMI1/DVI
HDMI2/DVI
VGA
AVS
DVD
VCR
0 VIDEO
'DV(UVWH۽
=')۽
:'5.¸OQ ۽
%D\ULVFKHV)6 ۽
Switch to ...
Select station
Favourites
KUIHUQVHKHQ ۽
3KRHQL[ ۽
%5DOSKD۽
VDW۽
(LQV([WUD۽
(LQV)HVWLYDO۽
(LQV3OXV ۽
=')LQIRNDQDO ۽
=')GRNXNDQDO ۽
=')WKHDWHUNDQ ۽
DUWH۽
'$69,(57(۽
3DJHחי
END
INFO
OK
OK
P+
P–
a
z
-
Station list
21:00 - 21:45 Urlaubsparadies - Toskana
Scan stations
Change stations
Change sorting
VDW۽
/LYH ۽
DUWH۽
$5'۽
AVS
%D\ULVFKHV)6۽
%5DOSKD۽
BR
CNN INT
Switch to ...
Select letter
Favourites
COMP IN
'DV(UVWH۽
'6)۽
DVD
DVD-REC
(LQV([WUD۽
(LQV)HVWLYDO۽
(LQV3OXV ۽
(XURVSRUW ۽
3DJHחי
Daily operation
Sorting
numerically
Sorting
alphabetically
long
short short long
all short
