24

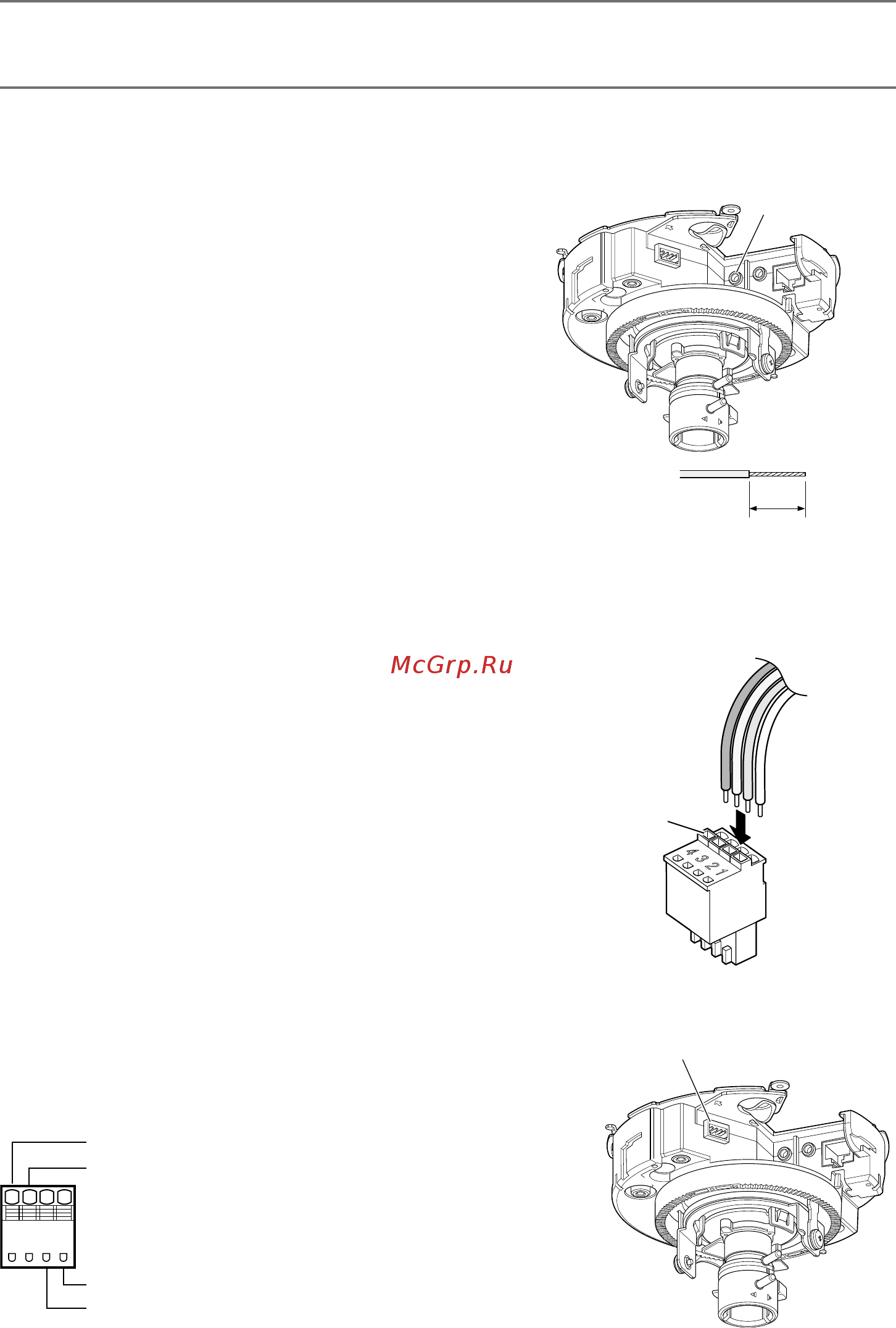

c Connect an external speaker with amplifier to
the audio output connector (for use of the audio
transmission function).
Connect a stereo mini plug (ø3.5 mm) (monau-
ral output).
• Recommendedcablelength:Lessthan
10 m {33'}
v Connect the cables of external devices to the
EXT I/O terminal plug (accessory).
q When connecting an external device, remove
8 mm - 9 mm {5/16" - 11/32"} of the outer
jacket of the cable and twist the cable core to
prevent the short circuit first.
Specification of cable (wire): 20 AWG -
26 AWG
Single core, twisted
w Push down the button of the desired terminal
on the external I/O terminal plug with a ballpoint
pen, and release the button when the cable of
the external device is fully inserted into the ter-
minal hole. Make sure that the cable is firmly
connected to the terminal.
e After the cable connection, connect the exter-
nal I/O terminal plug to the external I/O termi-
nals of the camera.
* Check whether the stripped part of the wire is
not exposed and is securely connected.
<Ratings>
8 mm - 9 mm
{5/16" - 11/32"}
Strip range
4
3
2
1
External I/O terminal plug
Button
FRONT
TOP
EXT I/O
AUDIO
OUT
MIC/
LINE IN
10BASE-T/
100BASE-IX
4
2
3
1
MONITOR
OUT
F
IN
External I/O terminals
FRONT
TOP
EXT I/O
AUDIO
OUT
MIC/
LINE IN
10BASE-T/
100BASE-IX
4
2
3
1
MONITOR
OUT
F
IN
Audio output
connector
1234
e AUX OUT
r GND
q ALARM IN
w ALARM OUT
Important:
• Connect/disconnecttheaudiocablesandturnonthepowerofthecameraafterturningoffthe
power of the audio output devices. Otherwise, loud noise may be heard from the speaker.
