Panasonic WV-SF335 [28/44] Installation
![Panasonic WV-SF335 [28/44] Installation](/views2/1013788/page28/bg1c.png)
28
Installation
Camera mounting
Installation shall be conducted after turning off each device.
z Detach the dome cover. (☞ Page 18)
x Connect the cables to the camera. (☞ Pages 23 to 27)
As necessary, use a cable tie (accessory) to assemble the cables.

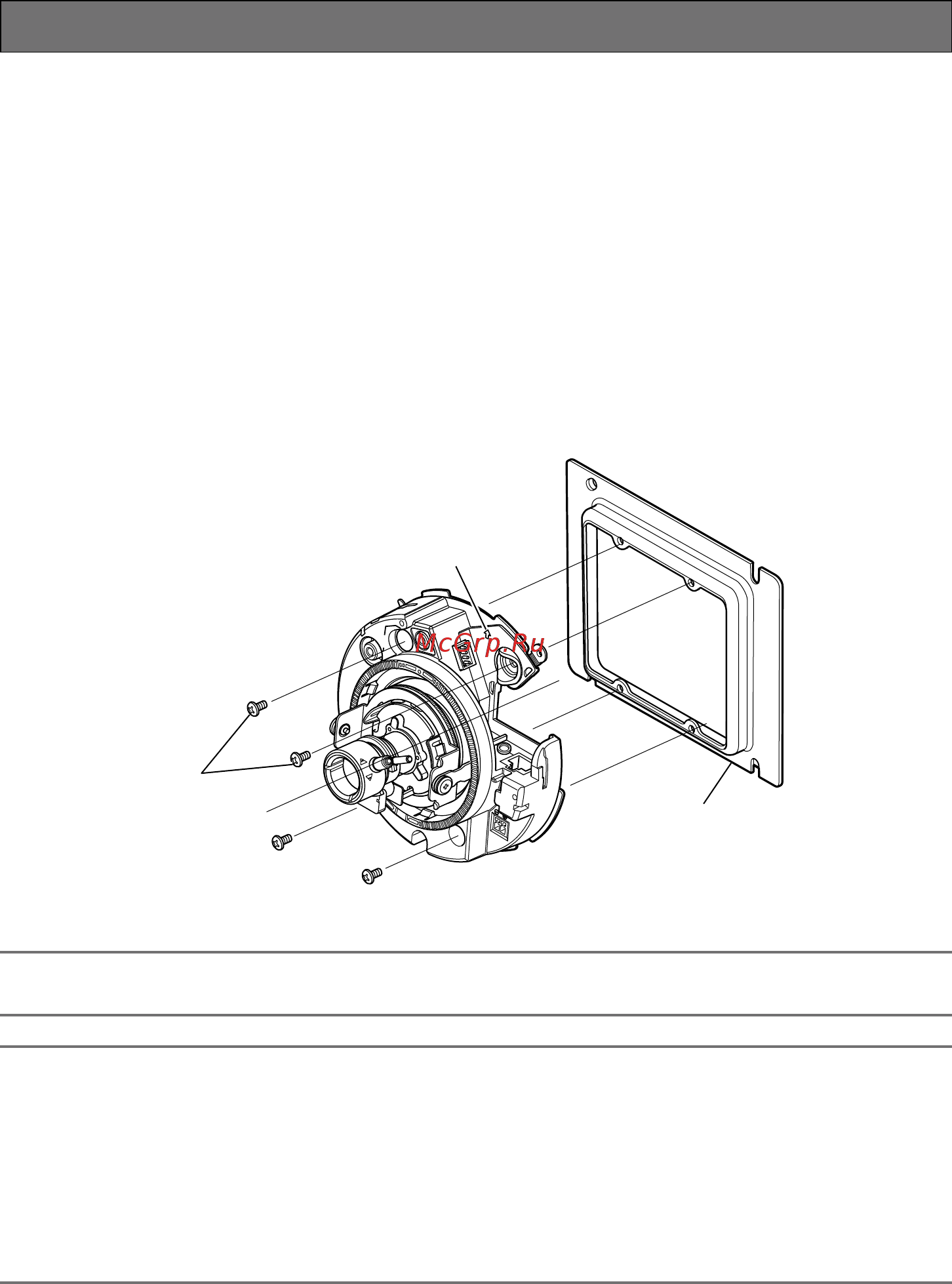

c Mount the camera. (The illustration represents the case in which a two-gang junction box is
installed.)
• Fixthecamerawith4screws(M4,locallyprocured)
FRONT
TOP
EXT I/O
AUDIO
OUT
MIC
LINE IN
10BAS
100BA
12V=IN
4
2
3
1
MONITOR
OUT
N
F
Direction marker for installation
Two-gang junction box
Screws
(locally procured)
Important:
• Whentighteningthescrews,becarefultoensurethatthecablesdoesnottanglethecables.
Note:
• Forceilingmounting
"gFRONT" of direction marker for installation indicates the center of panning. Adjustment of
lens direction will become easier when the camera is mounted with the "gFRONT" marker ori-
ented to the desired shooting area. Refer to the "Adjustment" section (☞ pages 29 to 33) for
further information about adjustment.
• Forwallmounting
The camera shall be mounted with the "gFRONT" marker facing upward.
