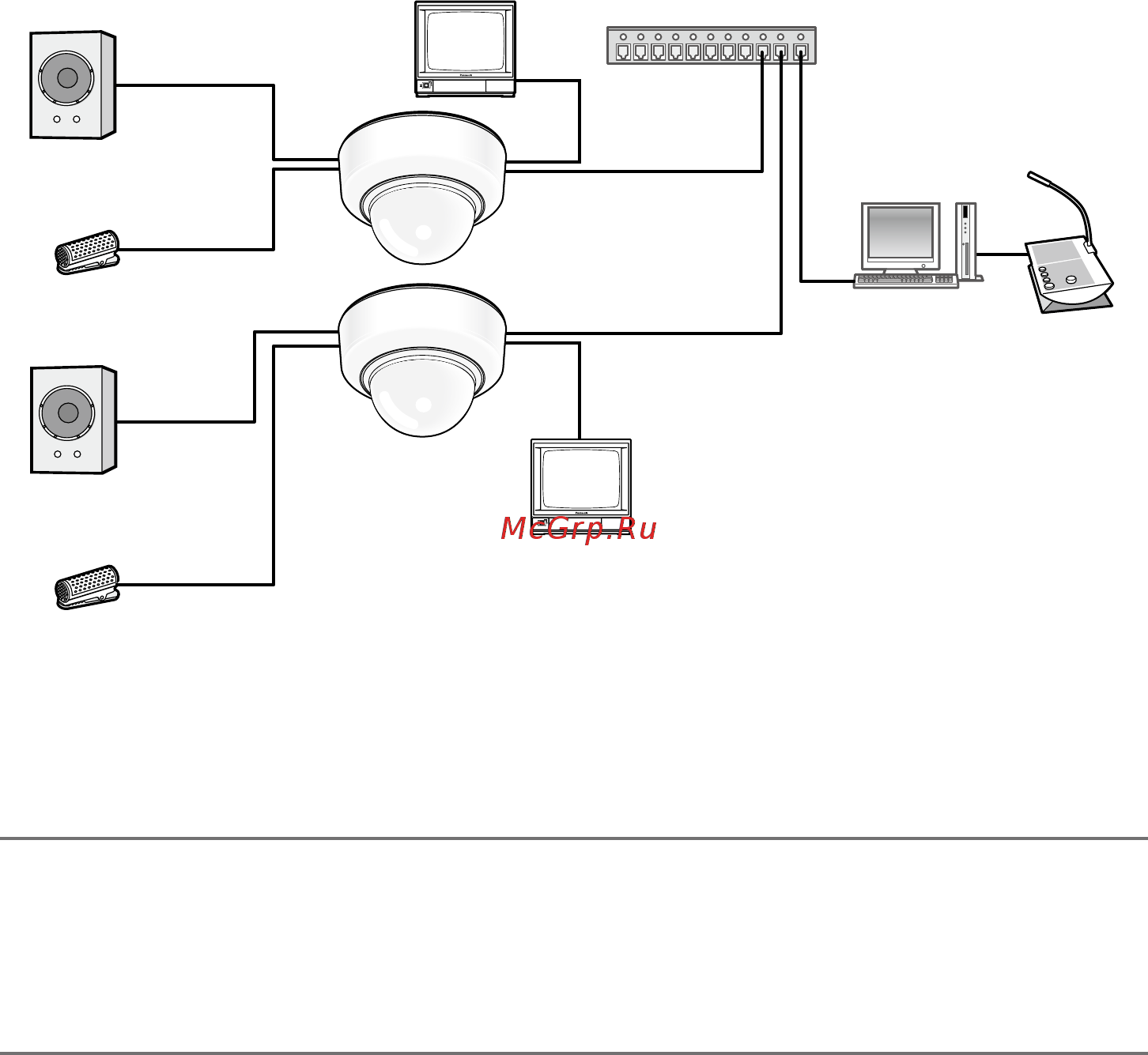

Panasonic WV-SF335 [27/44] Connection example when connecting to a network using a poe hub

Connection example when connecting to a network using a

PoE hub

PoE device (hub)

Microphone (option)

Speaker with ampliﬁer

(option)

Speaker with ampliﬁer

(option)

Video monitor

(for adjustment use only)

Video monitor

(for adjustment use only)

LAN cable (category 5 or

better, straight, STP*)

LAN cable (category 5 or

better, straight, STP*)

LAN cable (category 5 or

better, straight, STP*)

LAN cable (category 5 or better, straight, STP*)

* PAL models only

Important:

 • Thevideomonitorisusedforcheckingtheadjustmentoftheangularfieldofviewwheninstall-

ing the camera or when servicing. It is not provided for recording/monitoring use.

 • Useaswitchinghuborarouterwhichiscompliantwith10BASE-T/100BASE-TX.

 • Powersupplyisrequiredforeachnetworkcamera.WhenusingaPoEdevice(hub),12VDC

power supply is unnecessary.
