32

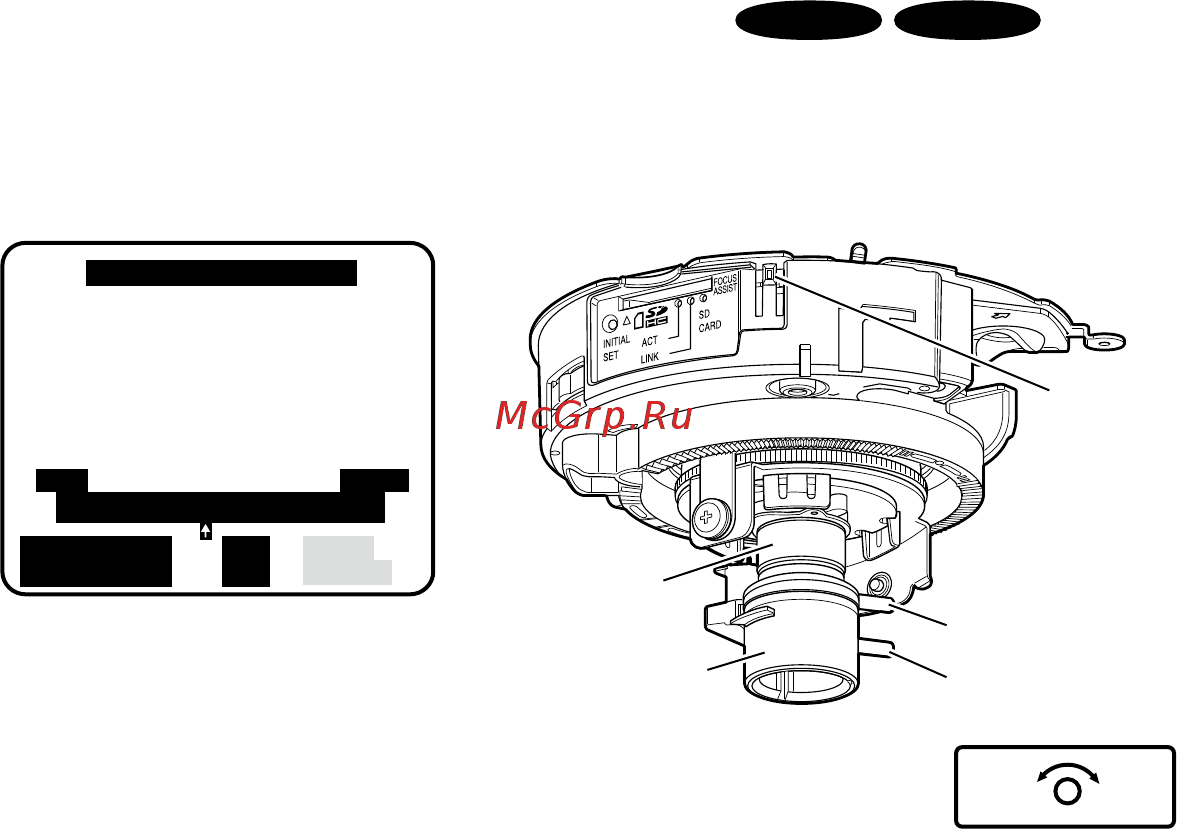

Adjust the angular field of view and the focus.
SF335
SF332
The angular field of view and focus can be adjusted in accordance with the distance between
the camera lens and a photographic subject. These adjustments shall be performed together
with the camera angle adjustment.
FOCUS ADJUSTMENT
LOW HIGH
.......
|
............
INDICATOR 775 BEST
PEAK HOLD 780 FOCUS
Zoom lock knob
Focus lock knob
Focus ring
Zoom ring
Loosen Tighten
Focus assist
(F.A.) button
q Loosen the zoom lock knob and focus lock knob, and adjust the angular field of view in accor-
dance with the photographic subject by moving the zoom lock knob and focus ring.
w Fasten the zoom lock knob.
e Press the focus assist (F.A.) button.
→ "FOCUS ADJUSTMENT" menu will be displayed.
The focus assist function will be activated to perform the optimum adjustment.
r When the focus ring is positioned near the best focus position, the position will automatically
be memorized as the "PEAK HOLD" position. (The closer the focus ring is positioned to the
best focus position, the greater the "PEAK HOLD" value becomes.)
t When the focus ring is moved, the current focus position will be indicated on "INDICATOR".
Adjust the focus position so that the indicator value goes close to the "PEAK HOLD" position.
y When the indicator value goes to the best focus position, "BEST FOCUS" will be displayed in
reverse at the lower right corner of the screen.
u Fasten the focus lock knob so as to fix the best focus position.
i Press the focus assist (F.A.) button again to close the "FOCUS ADJUSTMENT" menu. (No
operation for 3 minutes also closes the menu.)
