BBE 382i Sonic Maximizer [5/12] Front panel controls

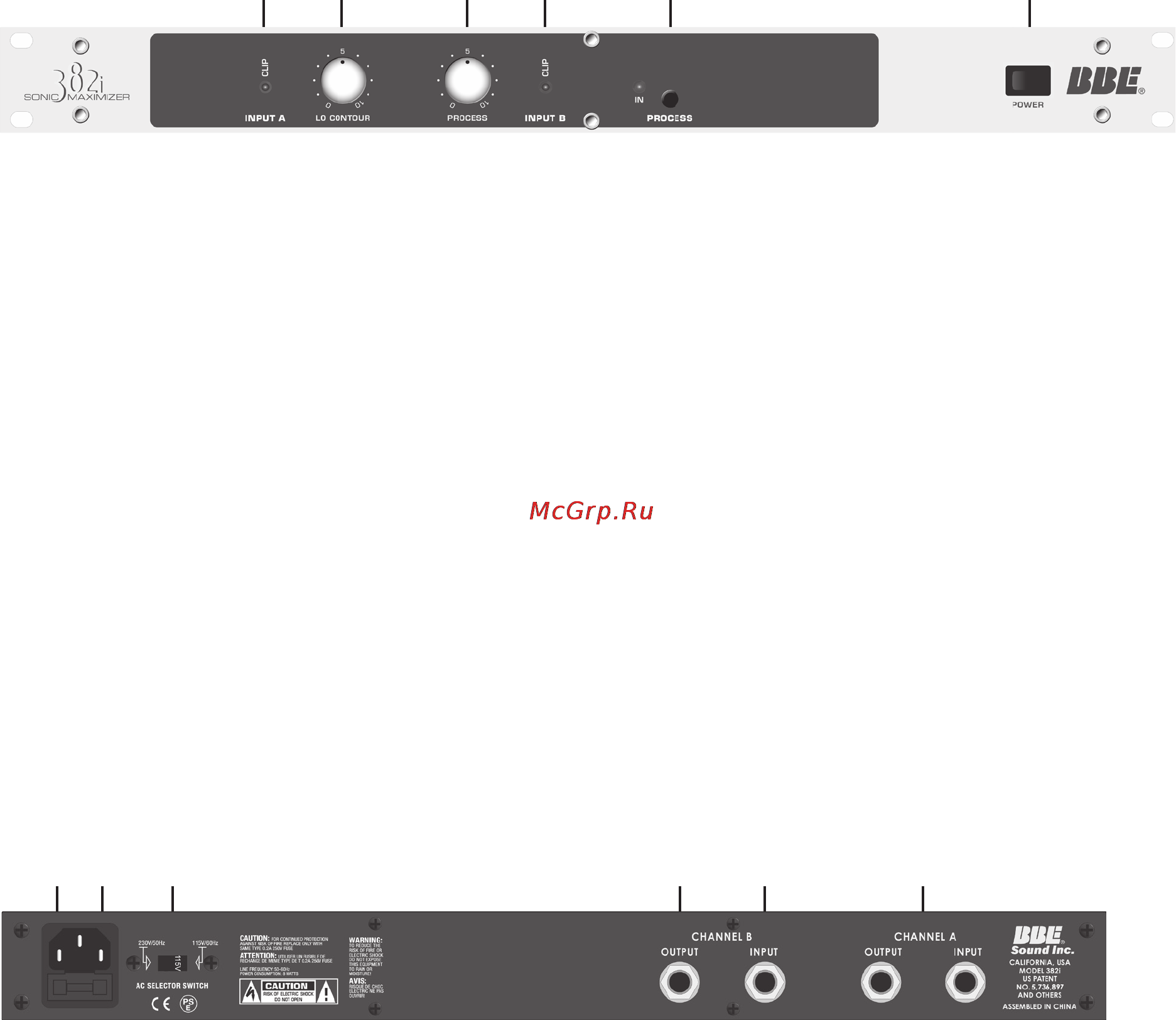

Front Panel Controls

1. CLIP LED INPUT A: When illuminated this LED indicates that the output of the 382i has reached

+15dBu.

2. LO CONTOUR: Each channel shares a common LO CONTOUR CONTROL. This control regulates the

amount of phase corrected bass frequencies. This adjustment ranges form 0dBu (fully counter-clockwise)

to +12dBu (fully clockwise) at 50Hz relative to the input.

3. PROCESS: Each channel shares a common PROCESS CONTROL. This control regulates the amount

of phase corrected treble frequencies. This adjustment ranges from 0dB (fully counter-clockwise) to

+12dBu (fully clockwise) at 5kHz relative to the input.

4. CLIP LED INPUT B: When illuminated this LED indicates that the output of the 382i has reached

+15dBu.

5. PROCESS SWITCH: This push button switch allows for quick comparison of processed with unprocessed

sound. When the switch is pushed in, the process is on and the indicator LED is green. When the switch

is out, the process is off and the indicator LED is red.

6. POWER: This switch controls primary power to the BBE 382i.

 

Rear Panel Connections

1. AC POWER CORD INLET: Plugs into AC power receptacle. U.S. Model, 100-120Vac, 50/60Hz. All other

models, 200~240Vac, 50/60Hz.

2. FUSE: Insert a at blade screwdriver into the fuse holder located in the bottom portion of the AC Power

Cord inlet. Carefully pry the fuse holder free from its compartment to access fuse. (Note: Replace with

250VAC, 200mA fastblow type fuse.

3. AC SELECTOR SWITCH: This switch is set at the factory to match the AC power requirements of the

country where it will be sold and should only be adjusted by a qualied technician.

4. OUTPUT CHANNEL B: Each channel is equipped with an unbalanced 1/4” line level output jack that can

deliver up to +20dBu into 1K Ohms.

5. INPUT CHANNEL B: Each channel is equipped with an unbalanced 1/4” -10dBu line level input jack. The

input impedance of the 382i is 47k Ohms. The maximum signal level before clipping is +20dBu.

6. CHANNEL A: These connections function the same as CHANNEL B.

  
