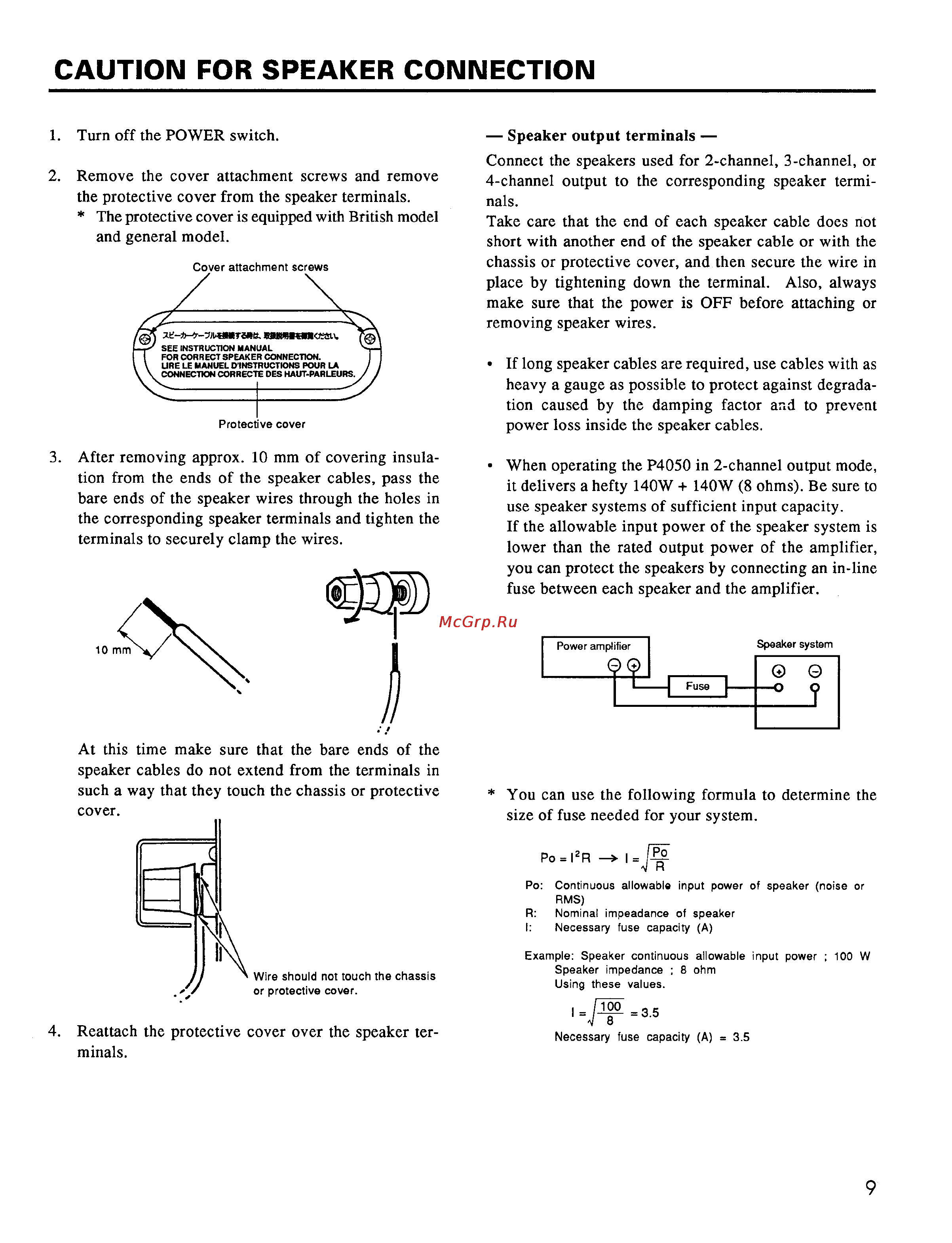

CAUTION FOR SPEAKER CONNECTION 1 Turn off the POWER switch Speaker output terminals 2 Remove the cover attachment screws and remove the protective cover from the speaker terminals The protective cover is equipped with British model and general model Cover attachment screws Protective cover 3 After removing approx 10 mm of covering insula tion from the ends of the speaker cables pass the bare ends of the speaker wires through the holes in the corresponding speaker terminals and tighten the terminals to securely clamp the wires At this time make sure that the bare ends of the speaker cables do not extend from the terminals in such a way that they touch the chassis or protective cover Connect the speakers used for 2 channel 3 channel or 4 channel output to the corresponding speaker termi nals Take care that the end of each speaker cable does not short with another end of the speaker cable or with the chassis or protective cover and then secure the wire in place by tightening down the terminal Also always make sure that the power is OFF before attaching or removing speaker wires If long speaker cables are required use cables with as heavy a gauge as possible to protect against degrada tion caused by the damping factor and to prevent power loss inside the speaker cables When operating the P4050 in 2 channel output mode it delivers a hefty MOW MOW 8 ohms Be sure to use speaker systems of sufficient input capacity If the allowable input power of the speaker system is lower than the rated output power of the amplifier you can protect the speakers by connecting an in line fuse between each speaker and the amplifier You can use the following formula to determine the size of fuse needed for your system Po PR l Po Continuous allowable input power of speaker noise or RMS R Nominal impeadance of speaker I Necessary fuse capacity A Wire should not touch the chassis or protective cover 4 Reattach the protective cover over the speaker ter minals Example Speaker continuous allowable input power 100 W Speaker impedance 8 ohm Using these values Necessary fuse capacity A 3 5 9
