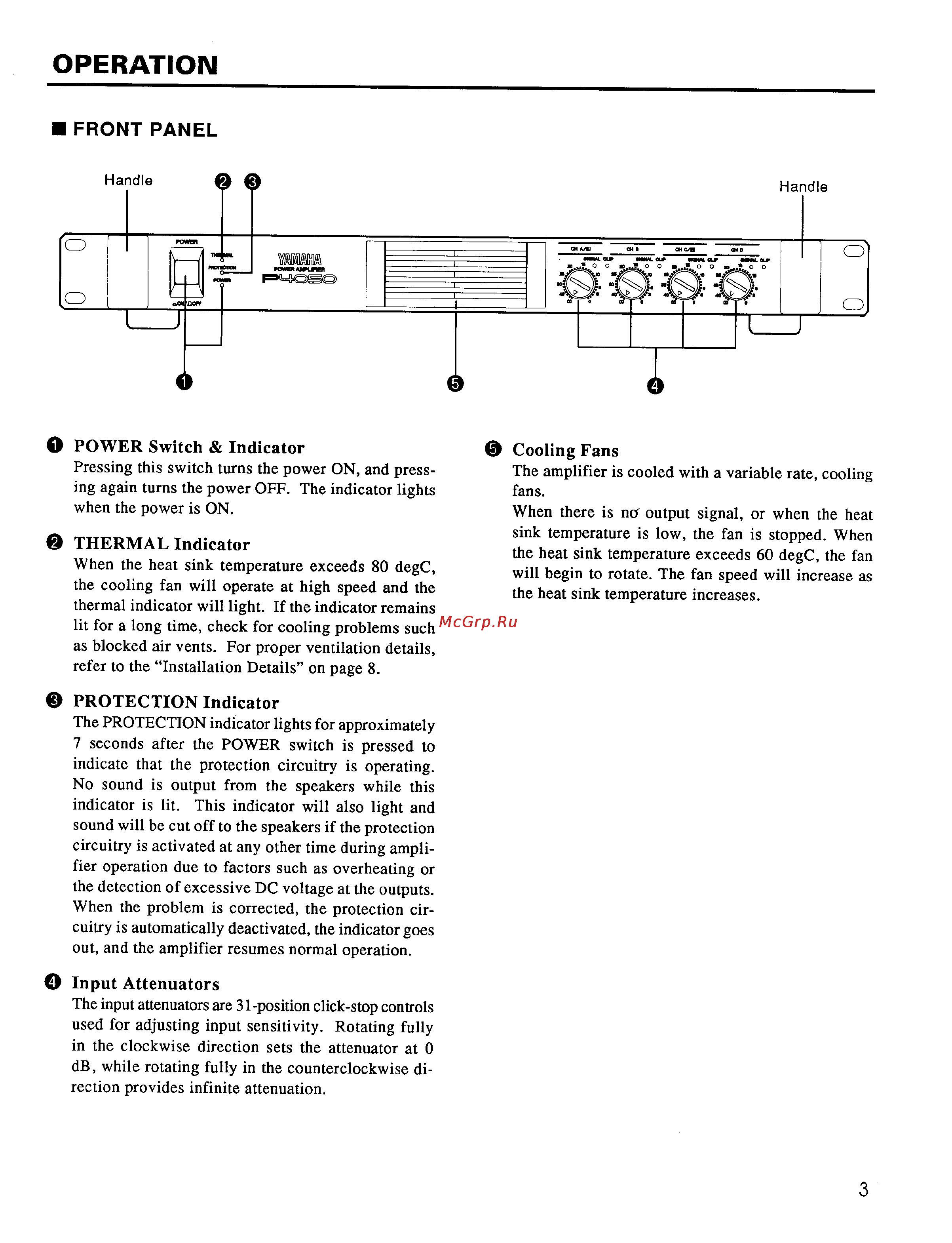

OPERATION FRONT PANEL O POWER Switch Indicator Pressing this switch turns the power ON and press ing again turns the power OFF The indicator lights when the power is ON THERMAL Indicator When the heat sink temperature exceeds 80 degC the cooling fan will operate at high speed and the thermal indicator will light If the indicator remains lit for a long time check for cooling problems such as blocked air vents For proper ventilation details refer to the Installation Details on page 8 Cooling Fans The amplifier is cooled with a variable rate cooling fans When there is ncr output signal or when the heat sink temperature is low the fan is stopped When the heat sink temperature exceeds 60 degC the fan will begin to rotate The fan speed will increase as the heat sink temperature increases PROTECTION Indicator The PROTECTION indicator lights for approximately 7 seconds after the POWER switch is pressed to indicate that the protection circuitry is operating No sound is output from the speakers while this indicator is lit This indicator will also light and sound will be cut off to the speakers if the protection circuitry is activated at any other time during ampli fier operation due to factors such as overheating or the detection of excessive DC voltage at the outputs When the problem is corrected the protection cir cuitry is automatically deactivated the indicator goes out and the amplifier resumes normal operation 0 Input Attenuators The input attenuators are 31 position click stop controls used for adjusting input sensitivity Rotating fully in the clockwise direction sets the attenuator at 0 dB while rotating fully in the counterclockwise di rection provides infinite attenuation 3
