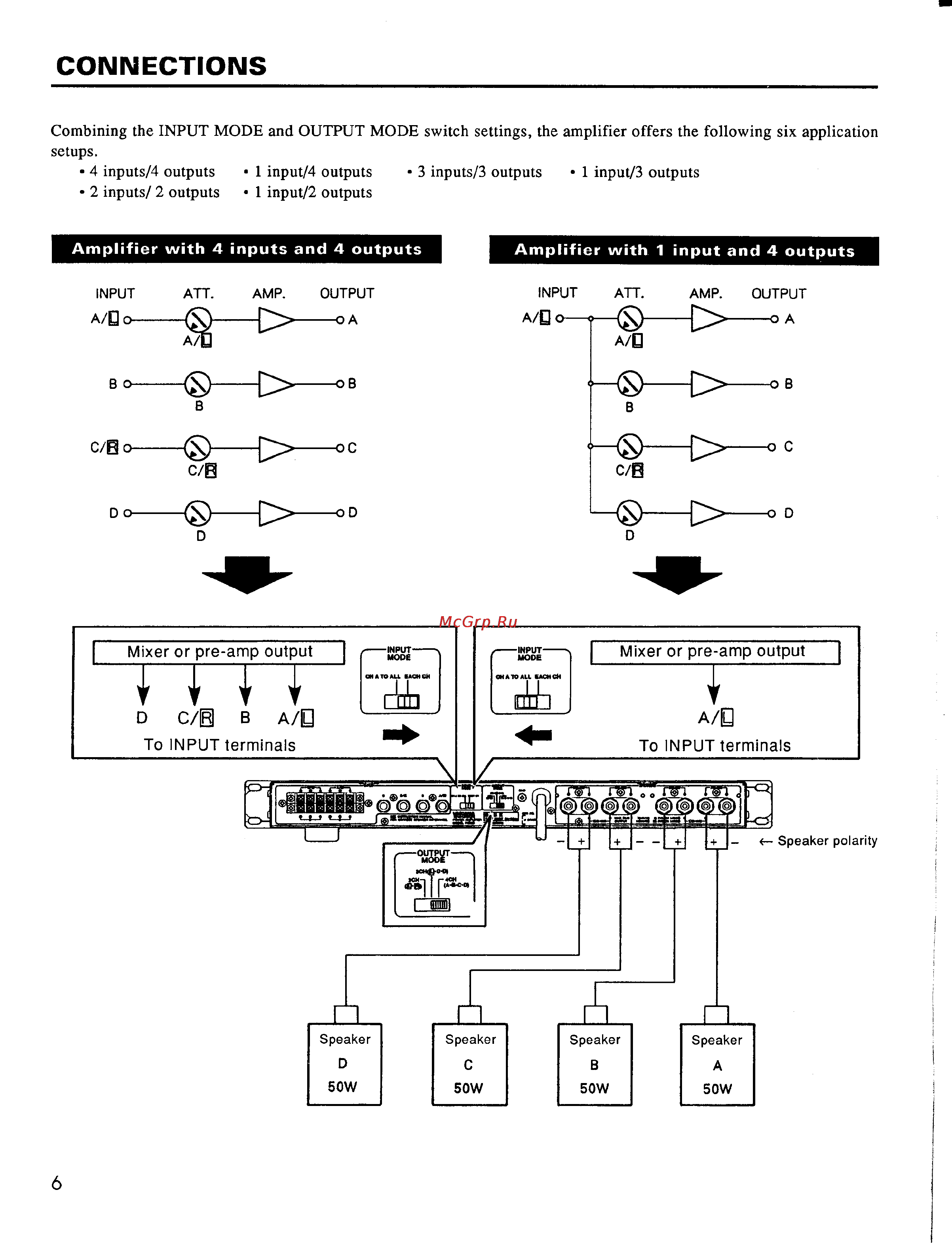

CONNECTIONS Combining the INPUT MODE and OUTPUT MODE switch settings the amplifier offers the following six application setups 4 inputs 4 outputs 1 input 4 outputs 3 inputs 3 outputs 1 input 3 outputs 2 inputs 2 outputs 1 input 2 outputs Amplifier with 4 inputs and 4 outputs Amplifier with 1 input and 4 outputs Mixer or pre amp output Mixer or pre amp output INPUT MODE MODE CH A TO AU EACH CH CH A TO ALL EACH CM A Q D C B B A B To INPUT terminals To INPUT terminals Speaker polarity CHA 04 CM i I pACH B Ml 6 Speaker Speaker Speaker Speaker D C B A 50W 50W 50W 50W
