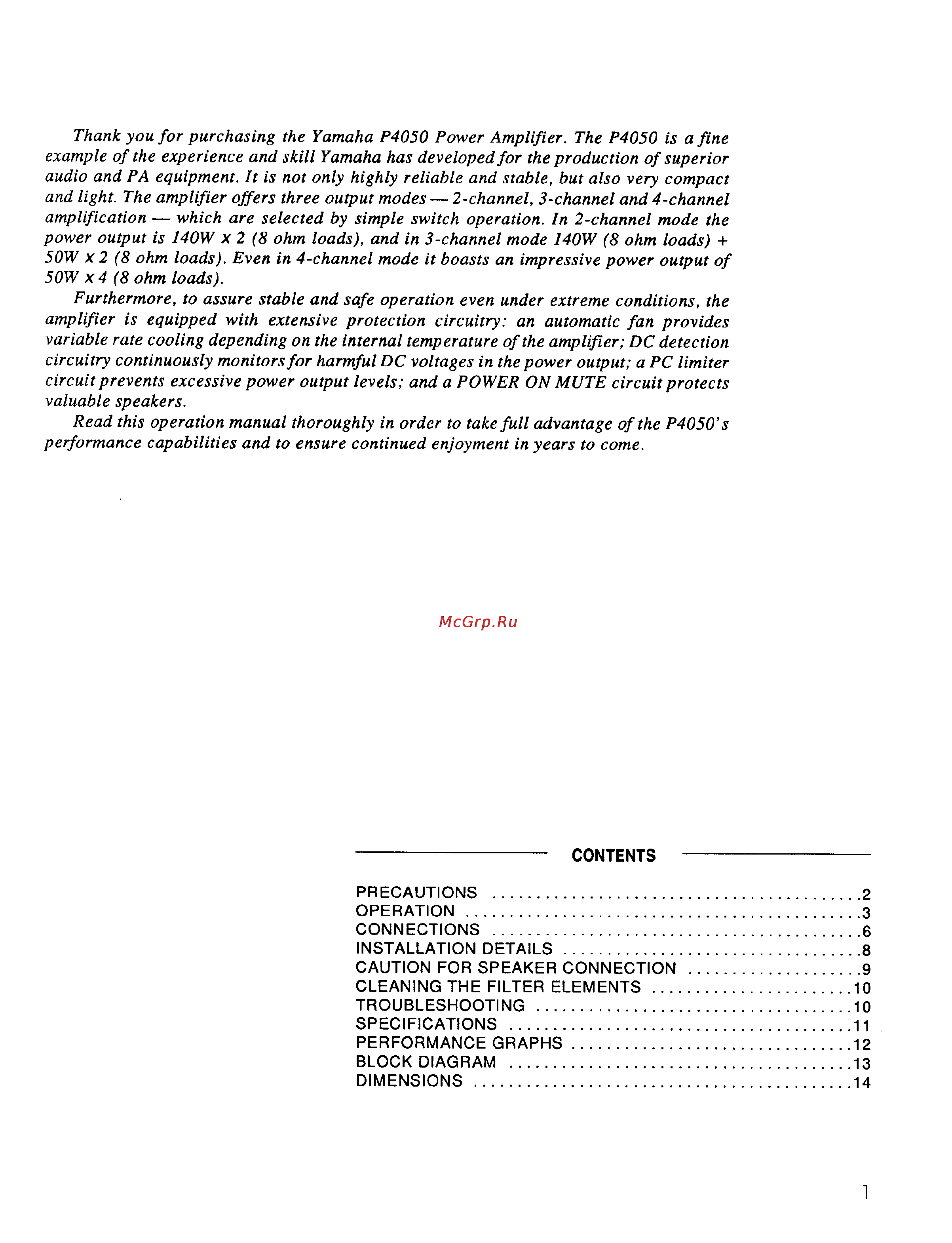

Thank you for purchasing the Yamaha P4050 Power Amplifier The P4050 is a fine example of the experience and skill Yamaha has developed for the production of superior audio and PA equipment It is not only highly reliable and stable but also very compact and light The amplifier offers three output modes 2 channel 3 channel and 4 channel amplification which are selected by simple switch operation In 2 channel mode the power output is 140W x 2 8 ohm loads and in 3 channel mode 140W 8 ohm loads 50W x 2 8 ohm loads Even in 4 channel mode it boasts an impressive power output of 50W x4 8 ohm loads Furthermore to assure stable and safe operation even under extreme conditions the amplifier is equipped with extensive protection circuitry an automatic fan provides variable rate cooling depending on the internal temperature of the amplifier DC detection circuitry continuously monitors for harmful DC voltages in the power output a PC limiter circuit prevents excessive power output levels and a POWER ON MUTE circuit protects valuable speakers Read this operation manual thoroughly in order to take full advantage of the P4050 s performance capabilities and to ensure continued enjoyment in years to come CONTENTS PRECAUTIONS 2 OPERATION 3 CONNECTIONS 6 INSTALLATION DETAILS 8 CAUTION FOR SPEAKER CONNECTION 9 CLEANING THE FILTER ELEMENTS 10 TROUBLESHOOTING 10 SPECIFICATIONS 11 PERFORMANCE GRAPHS 12 BLOCK DIAGRAM 13 DIMENSIONS 14 1
