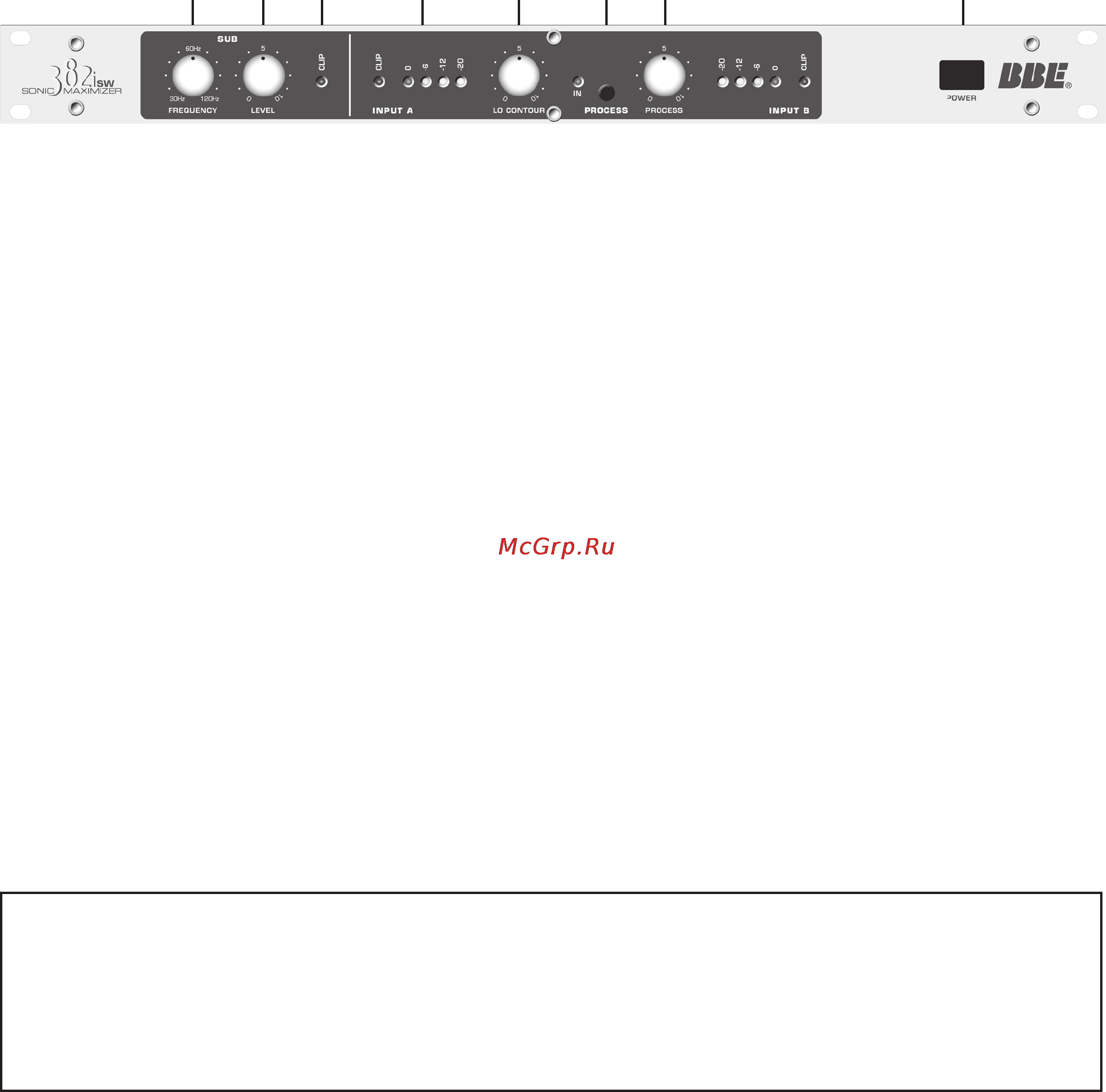

Front Panel Controls

1. SUB FREQUENCY: The phase corrected low frequency information from both channels is summed

together and directed through an 18dB/octave lter network. The SUB FREQUENCY control adjusts this

lter and has a selectable range from 30Hz to 120Hz. By simply adjusting the Frequency control you can

set the lter’s frequency point of the Sub-woofer circuit. For example, if you set the Frequency control to

40Hz - then only the information below 40Hz will be sent to the Sub-woofer Output jack.

2. SUB LEVEL: This control adjusts the output level of the sub-woofer circuit. The level is adjustable from

fully off to a gain of 6dB.

3. CLIP LED: Indicates when the output is 3dB below true clipping.

5. LO CONTOUR: Regulates the amount of phase corrected low frequencies.

6. PROCESS SWITCH: This push button switch allows for quick comparison of processed with unprocessed

sound. When the switch is pushed in, the process is on and the indicator LED is green. When the switch

is out, the process is off and the indicator LED is red.

7. PROCESS: Regulates the amount of phase corrected high frequencies.

8. POWER: This switch controls primary power to the BBE 382isw.

The BBE Sonic Maximizer is a line level signal processor and is to be

connected prior to the power amp in any audio system. Signicant

damage may be inicted to the bbe sonic maximizer or any subse-

quent component in the system in the event the output of a power
