BBE 382isw Sonic Maximizer [6/12] Rear panel connections

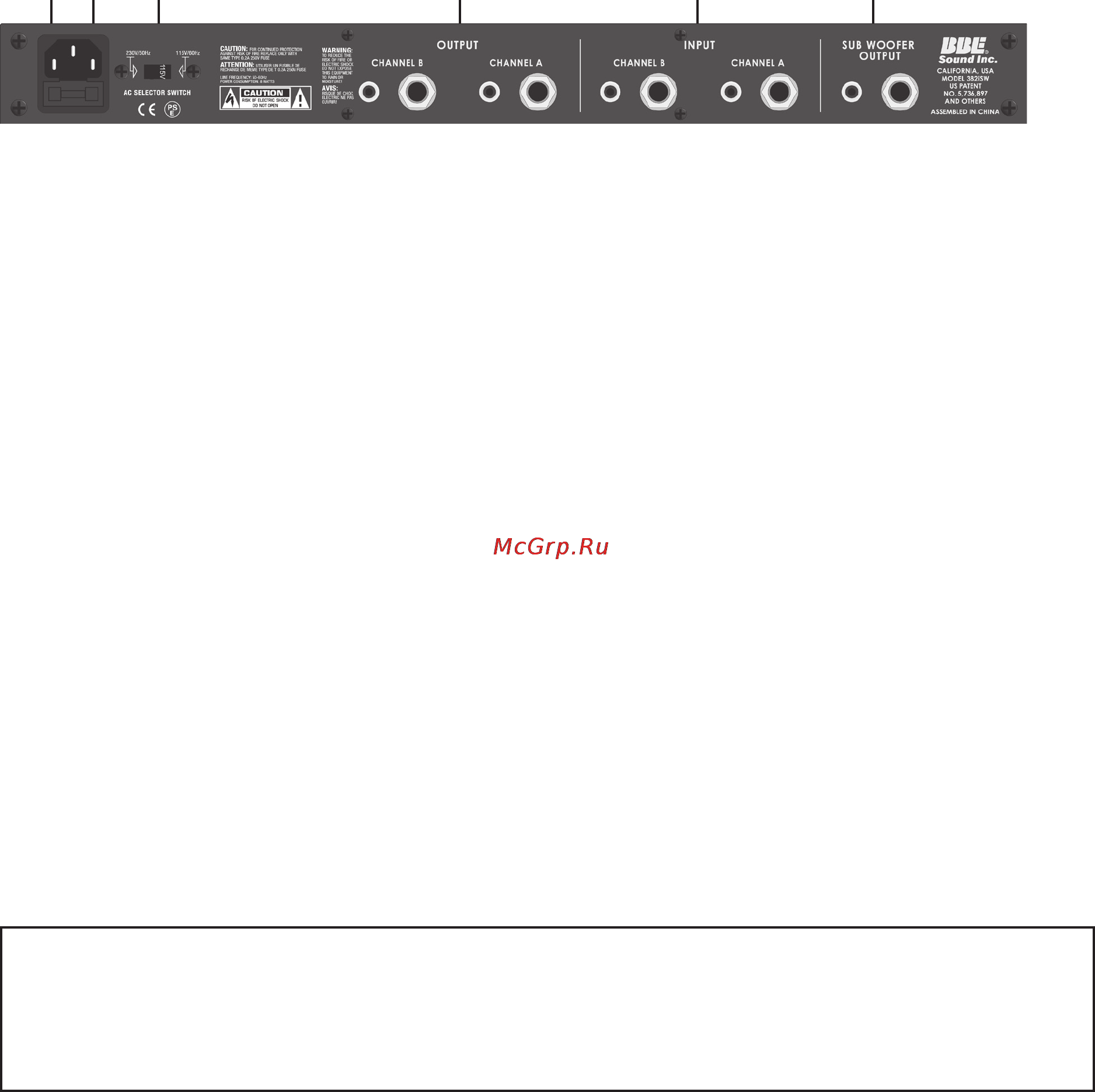

Rear Panel Connections

1. AC POWER CORD INLET: Plugs into AC power receptacle. U.S. Model, 100-120Vac, 50/60Hz. All other

models, 200~240Vac, 50/60Hz.

2. FUSE: Insert a at blade screwdriver into the fuse holder located in the bottom portion of the AC Power

Cord inlet. Carefully pry the fuse holder free from its compartment to access fuse. (Note: Replace with

250VAC, 200mA fastblow type fuse.)

3. AC SELECTOR SWITCH: This switch is set at the factory to match the AC power requirements of the

country where it will be sold and should only be adjusted by a qualied technician.

4. OUTPUT: The output of the 382isw can be taken from the 1/4” Phone Jack or the RCA Jack. Both are

unbalanced and are the same point electronically. This allows both outputs to be used simultaneously,

eliminating the need for a “Y” cord in the event multiple outputs are required. The recommended single

load impedance is at least 10k Ohms. If both outputs are being used, a minimum of a 22k Ohm load per

device is required. (The “load” is determined by the input impedance of the next subsequent component

in the signal chain.) The maximum output is rated at +20dBu. The output impedance of the 382isw is

1K ohms. NOTE: Actual output level will vary due to the selected position of the Process, and the actual

input signal level.

5. INPUT: The input of the BBE 382isw is an unbalanced connection. Although is can be either a 1/4”

Phone Plug or an RCA Plug, it is recommended that only one input source is used. Both jacks are the

same point electronically, however, due to the input/output impedance characteristics of most audio

devices, a loss of signal may occur and/or damage to a component if both inputs are utilized. The input

impedance of the 382isw is 47k Ohms. The maximum signal level is +16dBu.

6. SUB WOOFER OUTPUT: The unbalanced low impedance line level output of the BBE 382isw can be

taken from the 1/4” Phone Jack or the RCA Jack.

WARNING! To prevent possible speaker or amplier damage, always

power-up peripheral devices rst, wait 10 seconds, and then turn on

the power amplier. Turn off power amplier rst, then power-down

peripheral devices.

  
