Panasonic FS-100 [32/154] Side panel

Quickstart

FS-100 Portable DTE Recorder

Side Panel

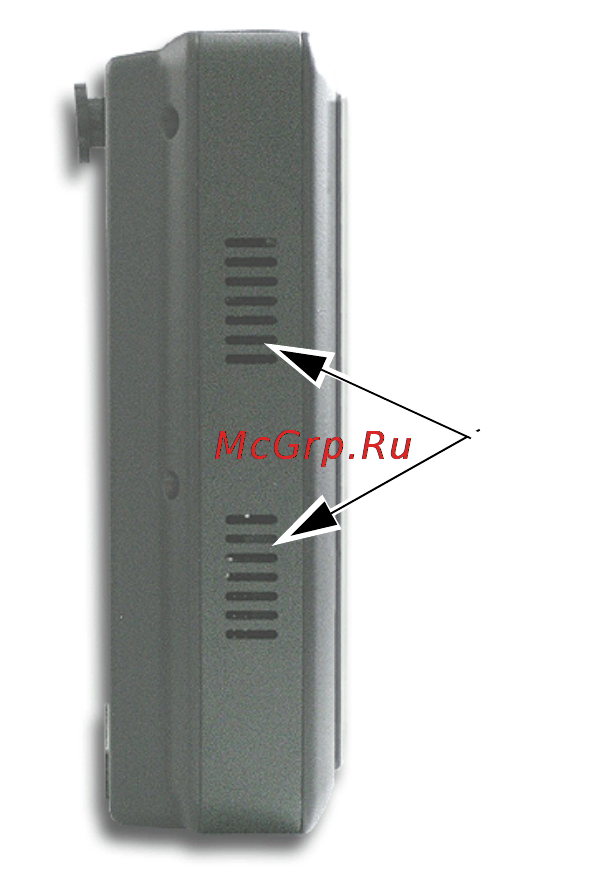

The side panel contains cooling vents as illustrated below.

Cooling Vents

Do Not

Block
