Panasonic FS-100 [6/154] Compliance

FS-100 Portable DTE Recorder

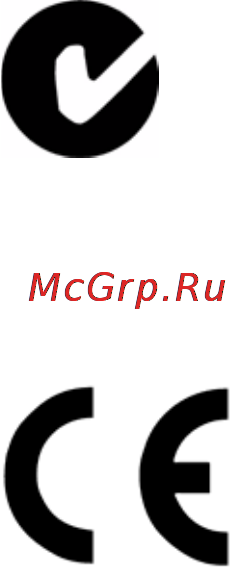

Compliance

FS-100 is a device marketed for use in industrial or business

environments. The FS-100 complies with the regulations the

following testing agencies:

Australia and New Zealand

European Union
