Freggia HC320VB [11/40] Description

INSTRUCTIONS FOR THE USER

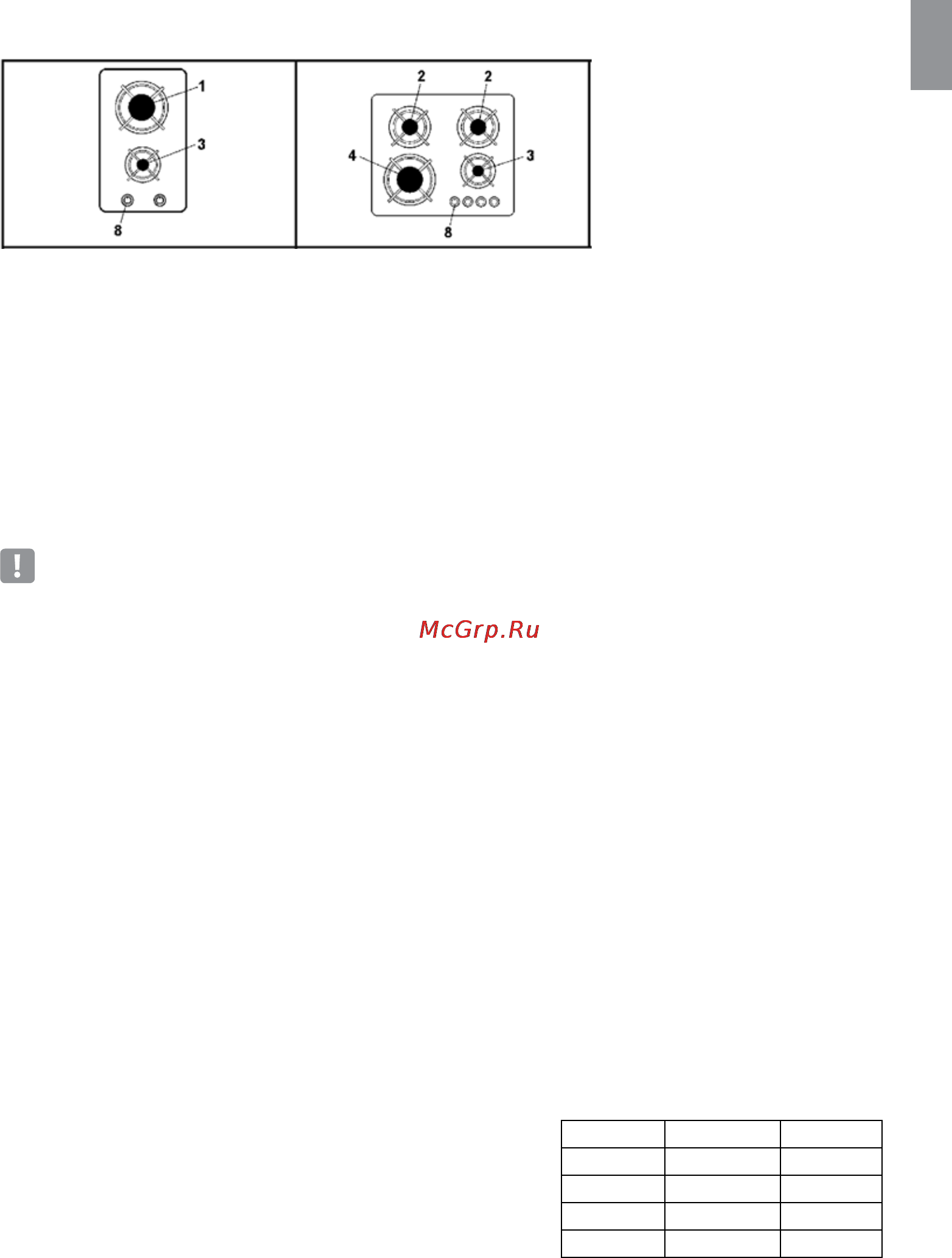

1 Rapid burner 3000 W

2 Semi-rapid burner 1650 W

3 Auxiliary burner 1000 W

4 Ultra-rapid burner 3500W

8 Control knobs burner

INSTRUCTIONS FOR THE USER

IT IS NECESSARY THAT ALL THE OPERATIONS REGARDING THE INSTALLATION, ADJUSTMENT AND

ADAPTATION TO THE TYPE OF GAS AVAILABLE ARE CARRIED OUT BY QUALIFIED PERSONNEL, IN

CONFORMITY WITH THE REGULATIONS IN FORCE.

THE SPECIFIC INSTRUCTIONS ARE DESCRIBED IN THE BOOKLET SECTION INTENDED FOR THE

INSTALLER

USING THE BURNERS

The symbols silk-screen printed on the side of the knob indicate the correspondence between the knob and the burner.

• MANUAL IGNITION

Press the knob and turn it anticlockwise until it reaches the symbol on the control panel (maximum ame position)

and place a lighted match or lighter near the burner.

• ELECTRICAL IGNITION

Press the knob and turn it anticlockwise until it reaches the symbol on the control panel (maximum ame position)

and press the button on the control panel.

On those models tted with a safety device, the knob must be pressed in for about 6 seconds once the burner

has ignited.

• USING THE BURNERS

In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for

the burner potential (see the following table), so as to avoid that the ame goes out of the pot bottom (g.1).

Use the maximum capacity to quickly make the liquids reach the boiling

temperature, and the reduced capacity to heat food or maintain boiling.

All of the operating positions must be chosen between the maximum

and the minimum ones, never between the minimum position and the

closing point.

The gas supply can be interrupted by turning the knob clockwise up

to the closing position.

DESCRIPTION

Burners power (W) Ø of pots

Auxiliary 1000 10 - 14 cm

Semi-rapid 1650 16 - 18 cm

Rapid 3000 20 - 22 cm

Ultra-rapid 3500 24 - 26 cm
