INSTALLATION AND SWITCHING ON
ADJUSTING FOR DIFFERENT TYPES OF GAS
If the cooker is not already pre-set to operate with the type of gas available, it must be
converted by following these steps:
• Replace the injectors (see APPENDIX 1);
• Regulate the primary air  ow;
• Regulate the minimum  ow settings for all burners.
Note: after every such adaptation, you must stick to the nameplate the name
of the new gas type to which the cooker has been set.

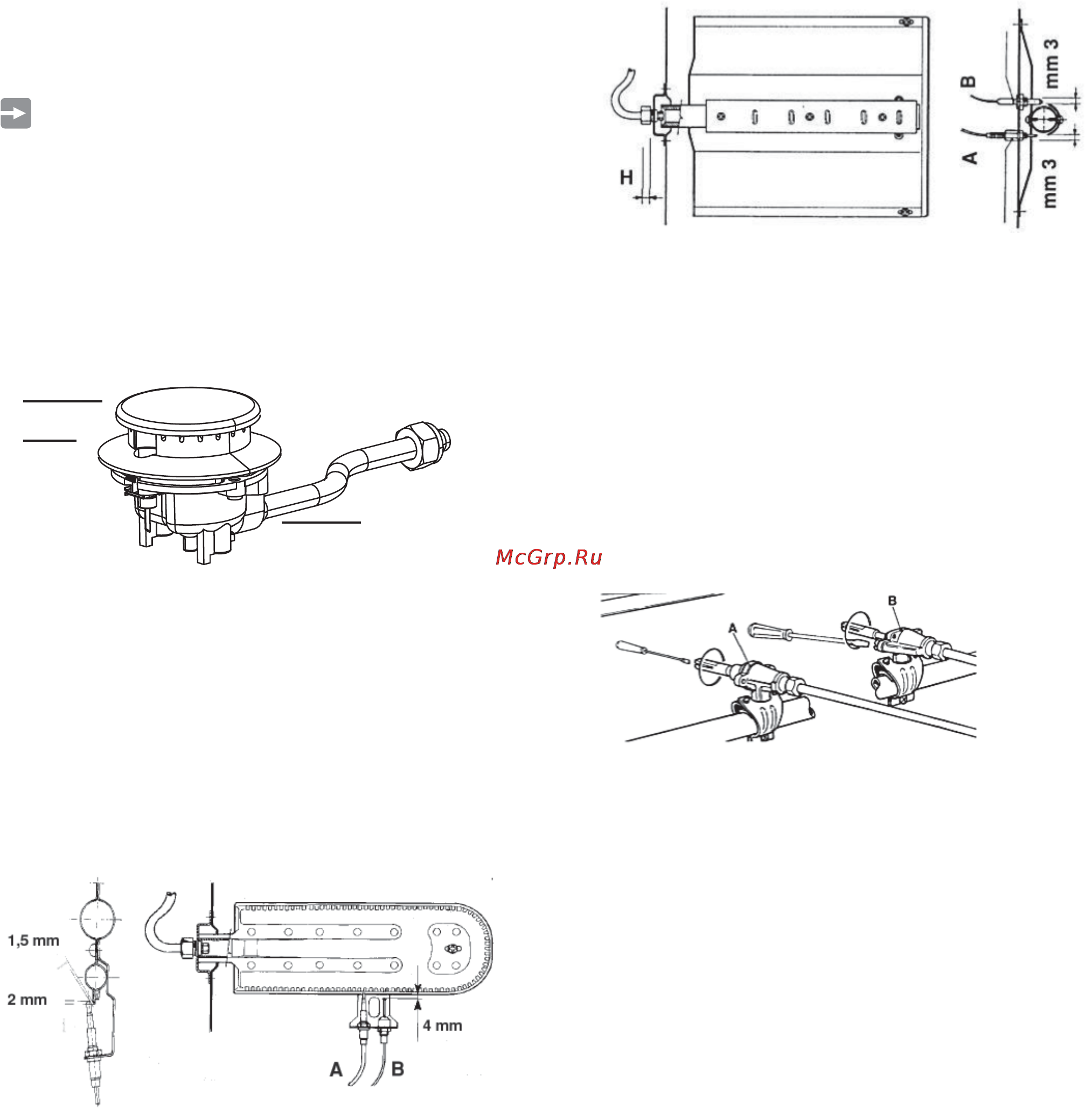

REPLACING THE HOB BURNER INJECTORS (Fig 16)
• Remove, the shelf, the burner caps (A) and the burners (B).
• Unscrew and remove the injector, which is found at the bottom of every
injector holder (C).
• Replace injectors as shown in the table in Attachment 1, and screw and
tighten them all the way.
• Check that injectors are air-tight.
• Put the burners, the burner caps and the shelf back into place.
Figure 16
• IMPOTRTANT RECOMMENDATIONS
• Under no circumstances should you over-tighten the injectors.
• After replacing all the injectors, check that they are air-tight.
REPLACING AN OVEN INJECTOR
• Loosen the screw securing the cooker base.
• Remove the cooker base (by pushing it back and lifting).
• Remove the oven injector, after  rst loosening the screw fastening it in place.
• Replace the injector, using a 7 mm socket wrench.
A = TERMOCOUPLE
B = SPARK PLUG
Figure 17
REPLACING THE GRILL INJECTORS
• Asportare il bruciatore dopo aver tolto le due viti che lo  ssano.
• Sostituire l’iniettore utulizzando una chiave a tubo da 7 mm.
A = TERMOCOUPLE
B = SPARK PLUG
Figure 18
• IMPORTANT RECOMMENDATIONS
• Under no circumstances should you over-tighten the injectors.
• After replacing all the injectors check that they are air-tight.
REDUCED FLOW ADJUSTMENT FOR HOB BURNERS
(SETTING HOB BURNER MINIMUM LEVELS)
If the cooker is intended to work on bottled gas (butane/propane), the thermostat by-
pass must be screwed right down. A cooker can be equipped with type A taps with a
by-pass inside (accessed by inserting a small screwdriver into the rod) or type B taps,
with a by-pass on the right (accessed directly); see  gure 19.
Figure 19
If the cooker is intended to work on natural gas, proceed as follows, no matter what
type of tap is used:
• Ignite the burner and turn the knob to the maximum  ame position.
• Remove the knob by pulling it towards you, without putting pressure on the
front panel of the cooker to avoid damage.
• Using a small screwdriver, loosen the regulating screw, turning it by
approximately 3 notches, moving anti-clockwise.
• Turn the tap rod anti-clockwise again until it stops. In this position the  ame
will be at its maximum level.
• Very slowly screw the by-pass back in, without pushing the screwdriver, until
the  ame reduces to three-quarters of its maximum size. Make sure that the
ame is su ciently stable, even with moderate draughts.
REDUCED FLOW ADJUSTMENT FOR OVEN BURNERS
(SETTING OVEN BURNER MINIMUM LEVELS)
Nel caso che la cucina debba funzionare con gas liquido (B/P), il by-pass del termostato
deve essere attivato a fondo. Qualora invece la cucina debba funzionare con gas
naturale si procede nel seguente modo:
• Remove the oven base (by pushing it to the back wall and lifting).
• Ignite the oven burner, turning the knob pointer to the maximum setting.
• Close the oven door.
• Access the thermostat or tap by-pass (see  g. 20).
• Loosen the adjustment screw by approximately three notches.
• In 5–6 minutes, turn the knob pointer to the maximum setting.
• Slowly retighten the by-pass, watching the  ame decrease through the
window in the closed oven door, until the size of the  ame is reduced to
approximately 4 mm. It is not recommended to keep the  ame too low. It
must be stable even when the oven door is opened or closed quickly.
• Switch o the burner and replace the oven base.
A
C
B
24
INSTALLATION AND SWITCHING ON
