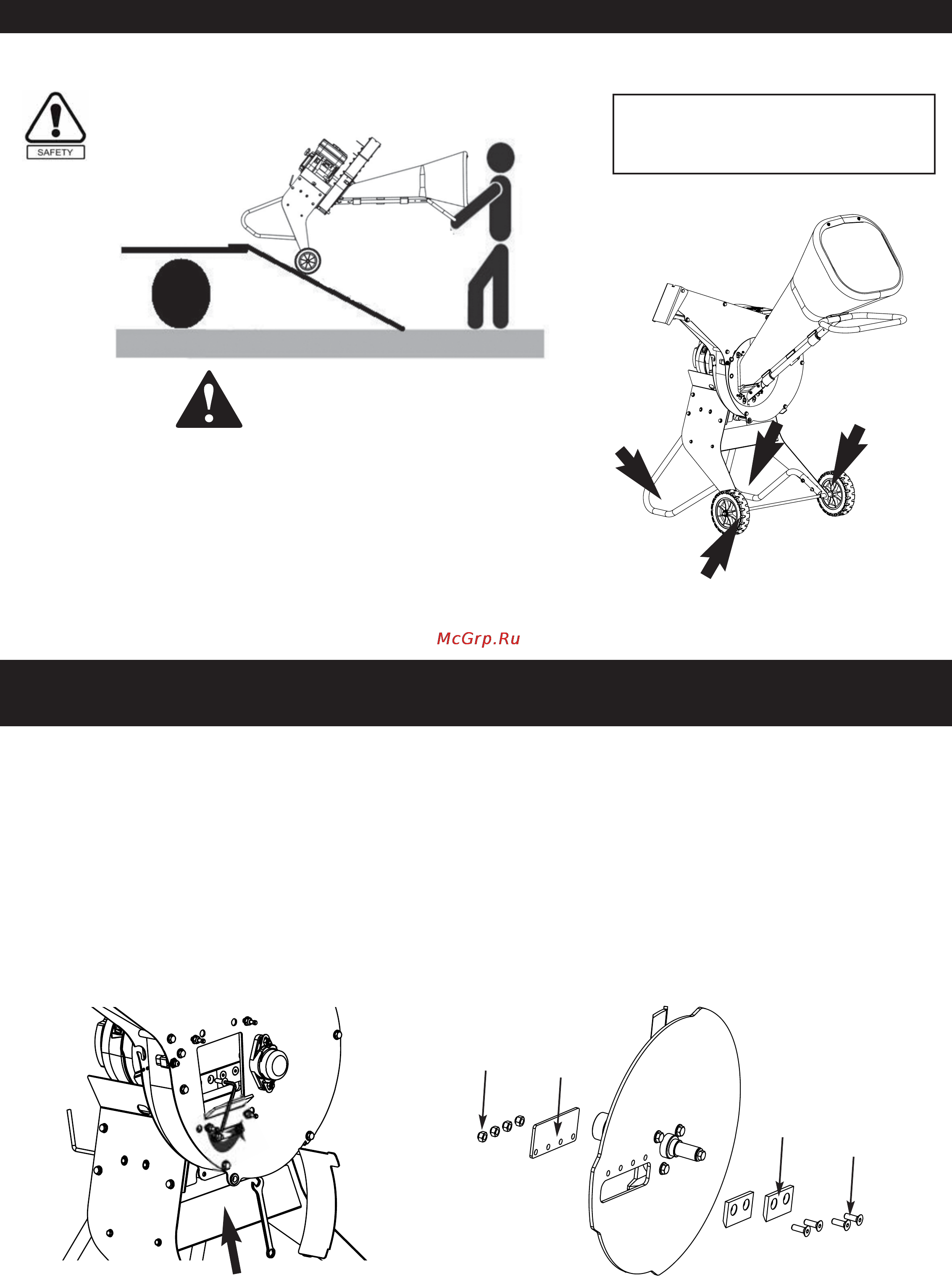

VIII / TRANSPORT

The shredder must only be transported in a trailer.

Use appropriate loading ramps.

Tie the shredder down correctly using straps.

To unload, follow these instructions in reverse.

IX / CHANGING THE BLADES

(to be carried out by your approved service agent) (Wear gloves)

- Disconnect the spark plug cable

- Open the obstruction clearance hatch (see VI –e)

- Remove the feeding chute (see VII)

- Using a 5 mm Allen key and a 13 mm open ended spanner, unscrew the 4 screws (1) and nuts (2) holding the 2 blades

in place (3).

- Always replace the 2 blades at the same time. Always replace the screws and nuts when replacing the blades.

(Warning: only blades and retaining screws specifically designed for your shredder must be used.)

- Mount the new blades, being sure not to forget the reinsert the balance weight (4) (tightening torque 24 N.M).

Correctly align and place the 2 blades parallel to each other.

Do not lift the shredder

Tie-down points

for trailer transport
