V / PREPARING THE SHREDDER

(carried out by your approved service agent)

Unpack the shredder.

Warning: once removed from the box, certain parts must be assembled

Warning: all the following operations must be carried out with the motor off.

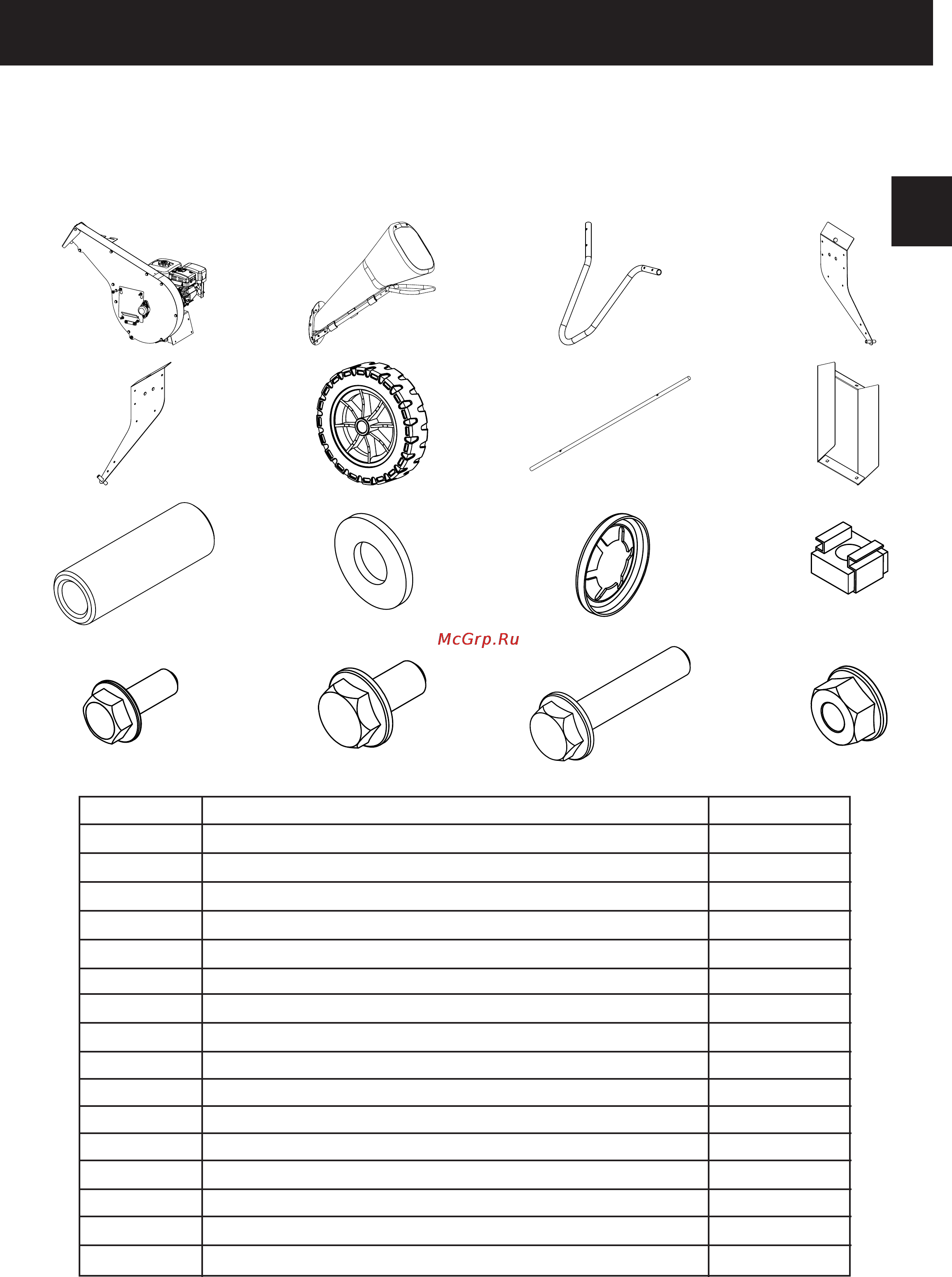

1) Packaging contents

Ref Description Qty

1 Motor / blade casing assembly 1

2 Feeding chute / transportation handle assembly 1

3 Shredder foot tube 2

4 Right foot 1

5 Left foot 1

6 Wheels 2

7 Wheel axle 1

8 Storage shelf 1

9 Wheel spacer 2

10 Flat washer Ø 12 4

11 Starlock washer Ø 12 2

12 M6 spire nut 4

13 Zinc screw HM 6 x 16 with toothed flange 4

14 Zinc screw HM 8 x 16 with toothed flange 4

15 Zinc screw HM 8 x 40 with toothed flange 8

16 Zinc nut H M8

with toothed flange 12

1 2 3 4

5 6 7 8

9 10 11 12

13 14 15 16
