5. VM SERIES AMPLIFIERS

This section describes all the controls and connections of your amplifier. Understanding the controls and

connections helps you realize its full power.

5.1

Getting To Know Your VM-80V

The Kramer VM-80V is a broadcast quality distribution amplifier designed primarily for composite video

signals on BNC connectors. Using a simple rear panel switch, it can be configured either as a single 1:8 DA, or

as two separate 1:4s. In either mode its purpose is to provide identical outputs to drive multiple monitors,

projectors or other receiving devices. Bandwidth exceeding 330MHz ensures transparent performance, even

with high-resolution analog and SDI (serial digital) video signals. The inputs can be un-terminated to provide

looping capability, making it easy to create larger systems. The VM-80A is the companion unit for distributing

balanced audio signals. Two sets of recessed front panel controls are provided for fine-tuning of gain and high

frequency EQ. The VM-80V is housed in a rugged, professional half-rack enclosure with an internal power

supply connected by a standard, detachable AC power cord. Two “80” series products can be mounted in one

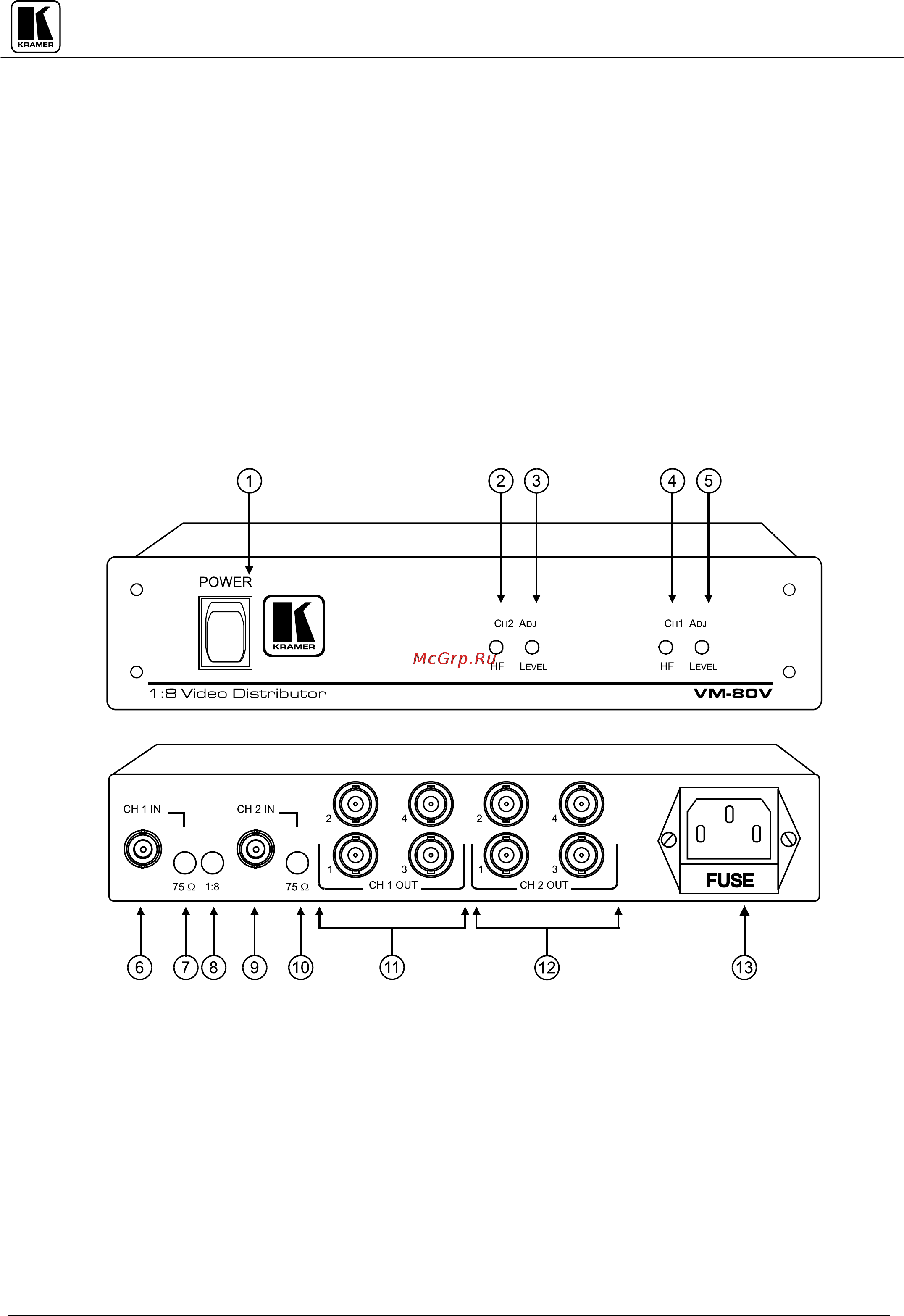

vertical rack space using the RK-80 kit. Front/Rear panel features of the VM-80V are described in Figure  and

Table
