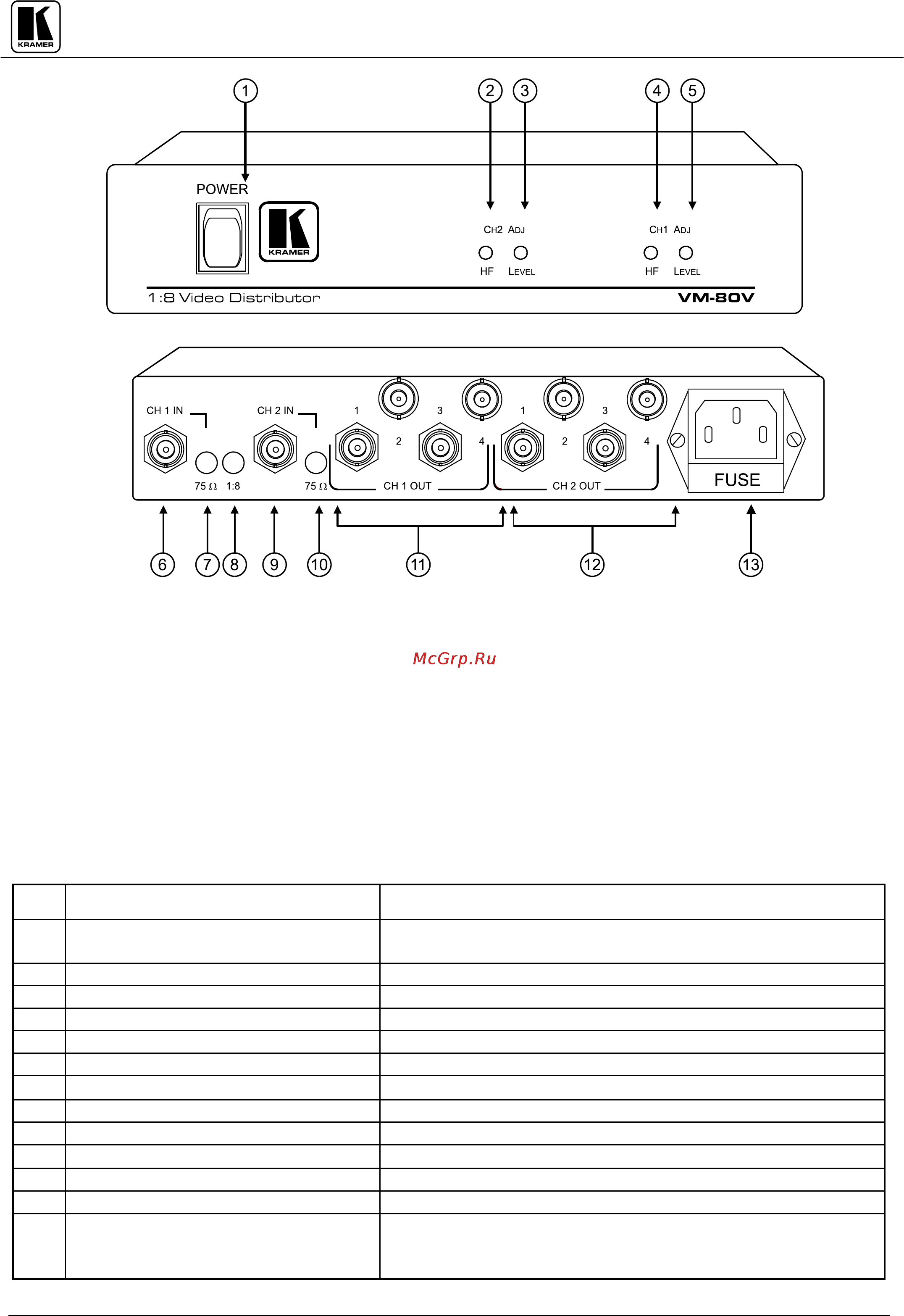

Figure : VM-80V Front/Rear Panel Features
Table
1
: VM-80V Front/Rear Panel Features
No. Feature Function
1.
POWER - Illuminated power switch
(on front panel)
Supplies power to the unit.
2.
HF (CHANNEL 2)
Cable compensation adjustment for output set 2.
3.
LEVEL (CHANNEL 2)
Video level control for output set 2.
4.
HF (CHANNEL 1)
Cable compensation adjustment for output set 1.
5.
LEVEL (CHANNEL 1)
Video level control for output set 1.
6.
Channel 1 INPUT
Video input BNC for channel 1
7.
75
Termination switch for channel 1 (pressed = 75 ohm)
8.
1:8 Selector Switch
Mode selector switch (pressed = 1:8 operation)
9.
Channel 2 INPUT
Video input BNC for channel 2
10.
75
Termination switch for channel 2 (pressed = 75 ohm)
11.
Channel 1 OUT
4 buffered and amplified outputs on BNCs.
12.
Channel 2 OUT
4 buffered and amplified outputs on BNCs.
13.
Power connector
A 3-prong AC connector allows power to be supplied to the
unit. Directly underneath this connector, a fuse holder houses
the appropriate fuse.
