4 VM-5HDxln - Defining the VM-5HDxln 1:5 3G HD-SDI DA

4 Defining the VM-5HDxln 1:5 3G HD-SDI DA

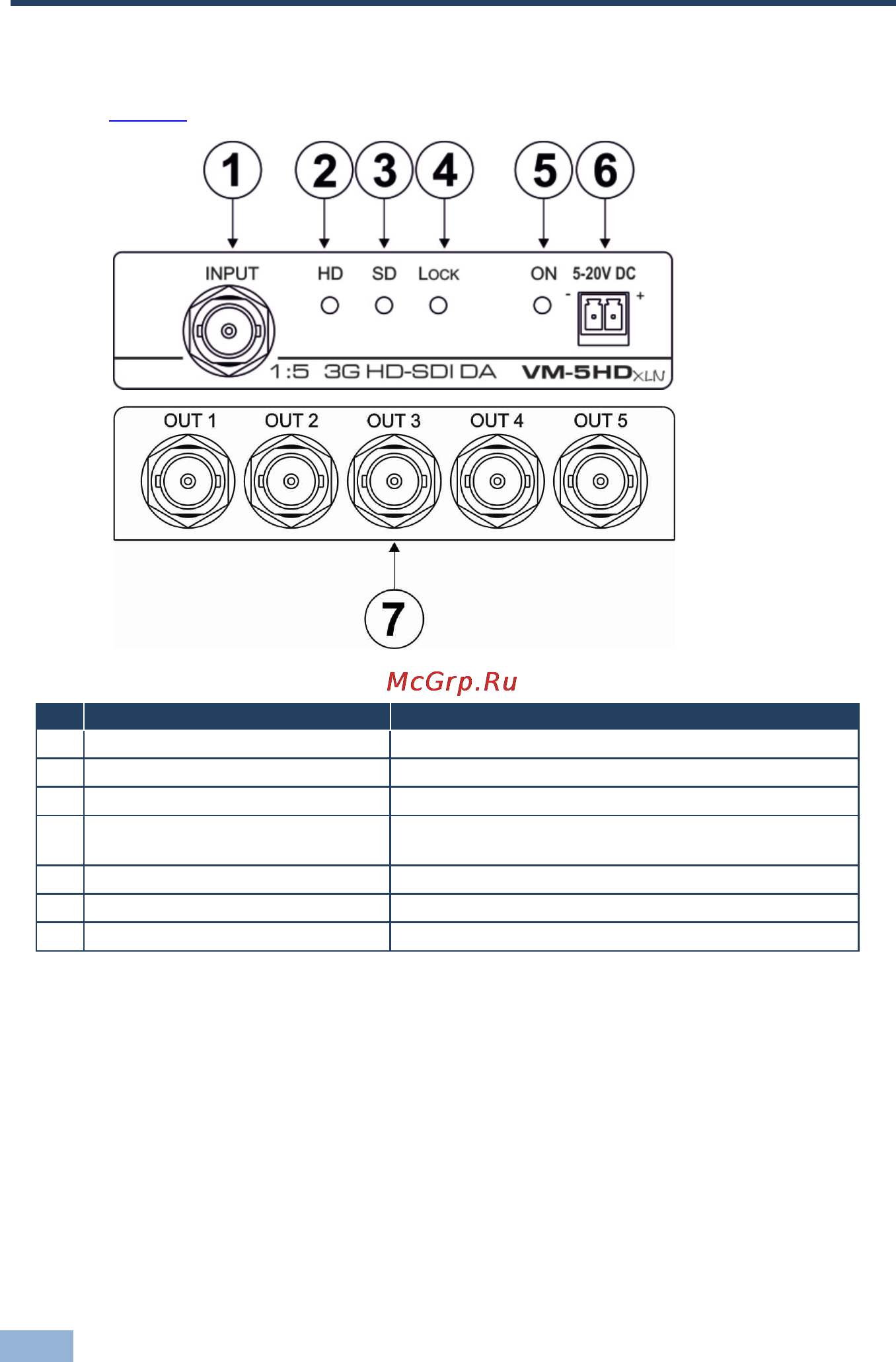

Figure 1 defines the front and rear panels of the VM-5HDxln.

Figure 1: VM-5HDxln 1:5 3G HD-SDI DA Front Panel

# Feature Function

1 INPUT BNC Connector Connect to an SDI source

2 HD LED Lights blue when the SDI signal is HD

3 SD LED Lights green when the SDI signal is SD

4 LOCK LED

Lights green when the VM-5HDxln has detected the

input signal and is able to lock on the signal

5 ON LED Lights green when receiving power

6 5-20V DC 2-pin Terminal Block Connect to the power adapter

7 OUT 1 ~ OUT 5 BNC Connectors Connect to the SDI acceptors (from 1 to 5)
