KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Your VS-41HD 4x1 HD/SD-SDI Switcher / DA
8

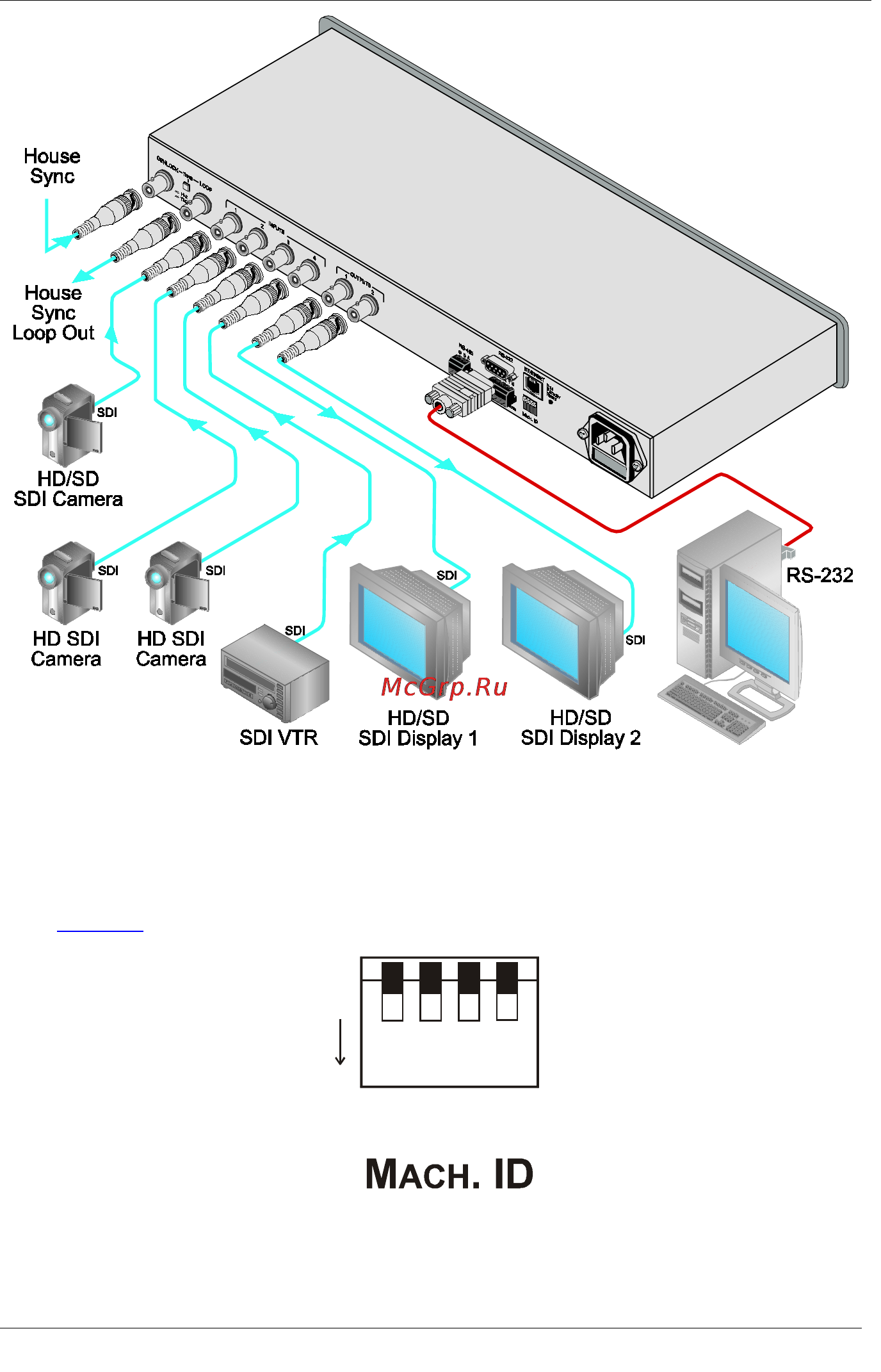

Figure 2: Connecting the VS-41HD 4x1 HD/SD-SDI Switcher / DA
6.1 Dipswitch Settings
By default, all dipswitches are set to OFF.
Figure 3 illustrates the VS-41HD dipswitches:
ON
1 2 3 4
Figure 3: VS-41HD SETUP Dipswitches
