Installing the Room Controller

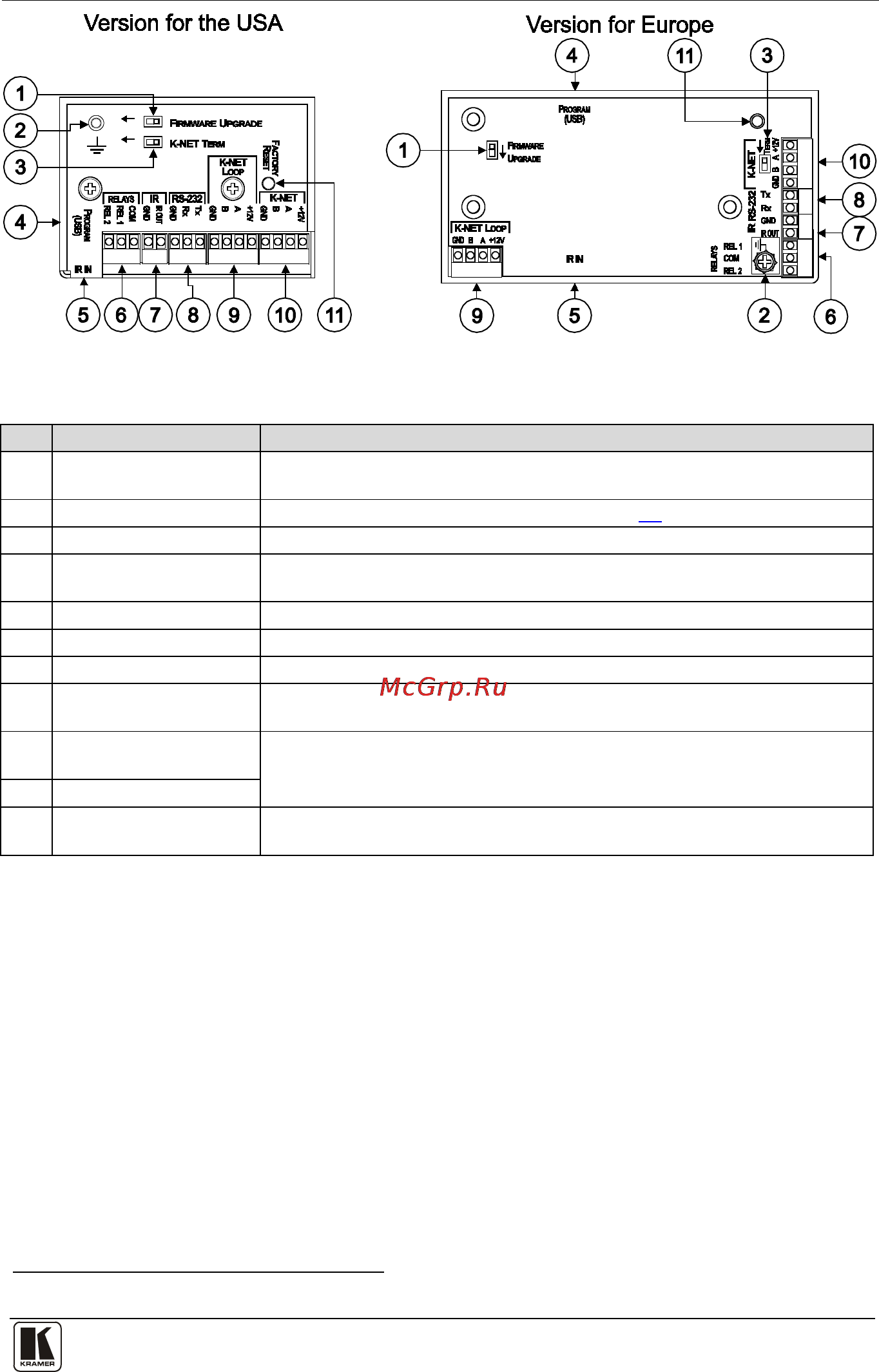

Figure 2: RC-62 Room Controller Rear Panel

Table 3: RC-62 Rear Panel Features

# Feature Function

1 FIRMWARE UPGRADE

Switch

For technical support use only

2 Grounding Screw Connect to grounding wire (optional), see section 6.4

3 K-NET TERM Switch For line termination

4 PROGRAM (USB)

Connector

Connect to a computer for unit configuration

5 IR IN Receiver Receives IR remote commands

6 RELAYS Connections Connect to room items (such as lighting, screen settings, blinds, and so on)

7 IR Connections Control a machine via an IR Emitter

8 RS-232 Connections Connect to the RS-232 connector on the A/V equipment or a PC or other Serial

Controller

9 K-NET LOOP

Connections

On K-NET and K-NET LOOP, PIN GND is for the Ground connection

; PIN

B (-) and PIN A (+) are for RS-485, and PIN +12V is for powering the unit

K-NET Connections

11 FACTORY RESET

Button

Press to revert to the default settings, including all the configured buttons

1 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected)
