Installing the Room Controller
7
7

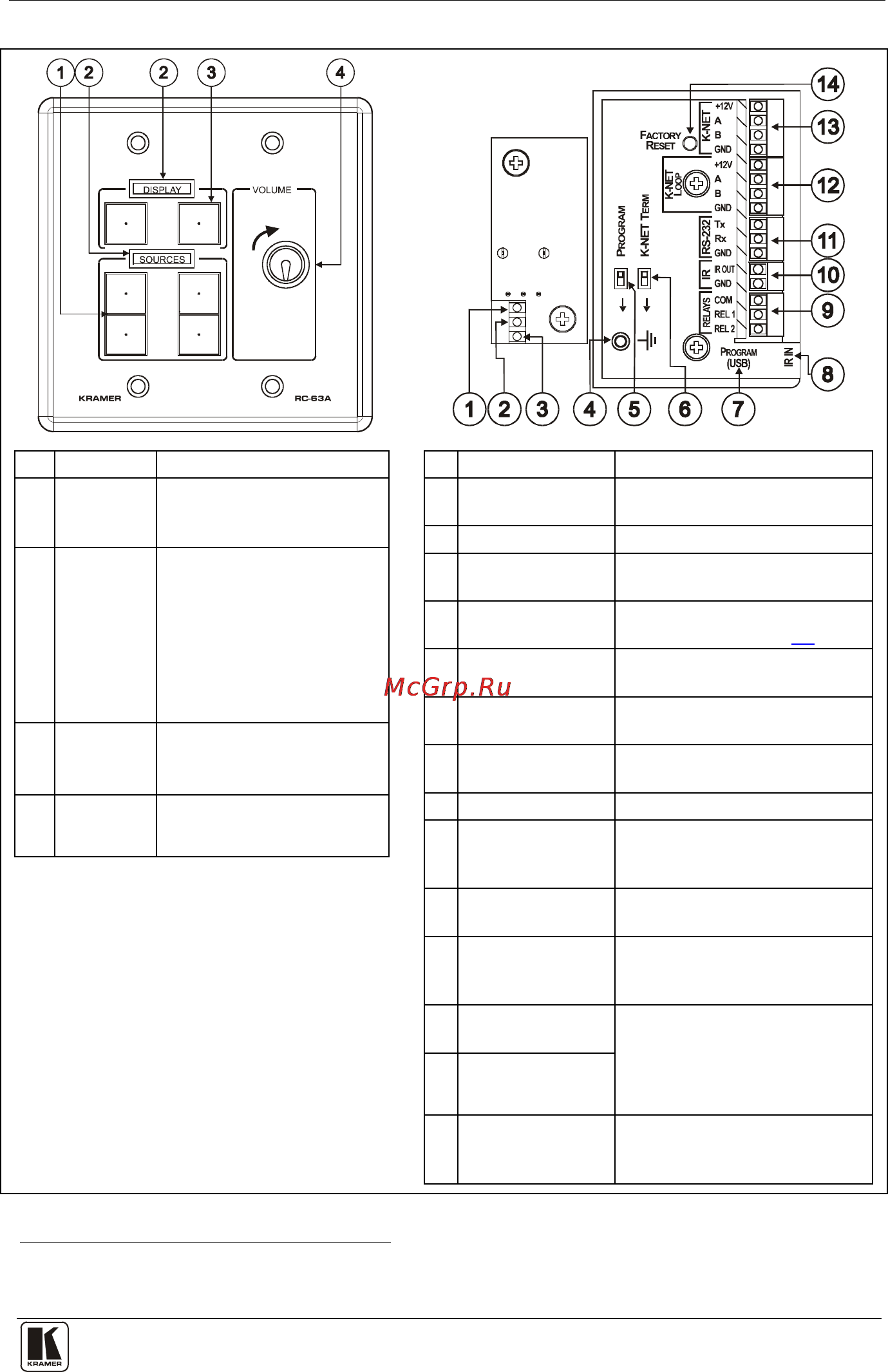

Table 4: Defining the RC-63A (for the USA)
# Feature Function
1 SOURCE
Buttons
These 4 configurable
backlit buttons can set up
any supported command
1
2
“DISPLAY”
and
“SOURCE”
Labels
RC-63A - "DISPLAY" and
“SOURCE” are printed on
the panel
RC-63AL - an LCD version
on a blue background that
displays up to 8 characters
at once (programmed via
the USB port)
3 DISPLAY
Buttons
These 2 configurable
backlit buttons can set up
any supported command
1
4 VOLUME
Knob
Rotate clockwise to
increase the level
# Feature Function
1 GND Connection Ground connection for the
potentiometer
2 LEVEL Connection Wiper of potentiometer
3 +V PIN +V connection for the
potentiometer
4 Grounding Screw Connect to grounding wire
(optional), see section
6.4
5 PROGRAM
Switch
For technical support use only
6 K-NET TERM
Switch
For line termination
7 PROGRAM
(USB) Connector
Connect to a computer for unit
configuration
8 IR IN Receiver Receives IR remote commands
9 RELAY
Connections
Connect to room items (such
as lighting, screen settings,
blinds, and so on)
10 IR Connections Control a machine via an IR
Emitter
11 RS-232
Connections
Connect to the RS-232 connector
on the A/V equipment or a PC or
other Serial Controller
12 K-NET LOOP
Connections
On K-NET and K-NET LOOP,
PIN GND is for the Ground
connection
2
13
; PIN B (-) and PIN
A (+) are for RS-485, and PIN
+12V is for powering the unit
K-NET
Connections
14 FACTORY
RESET Button
Press to revert to the default
settings, including all the
configured buttons
1 By the system integrator only
2 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected)
