FC-32 - Overview

3 Overview

The FC-32 is a high-performance format converter for digital DVI-D signals. It

converts a DVI-D input to a computer graphics or component video output on a

15-pin HD connection.

The FC-32 features:

 One DVI input on a 24-pin Molex connector

 One PC (RGBHV) /component (YPbPr with bi-level syncs) output on a

15-pin HD connector

 A Y/PB/PR–RGB selector switch (YPbPr signal is with a bi-level sync)

 5V DC power

3.1 Defining the FC-32 DVI to PC/Component Converter

This section defines the FC-32.

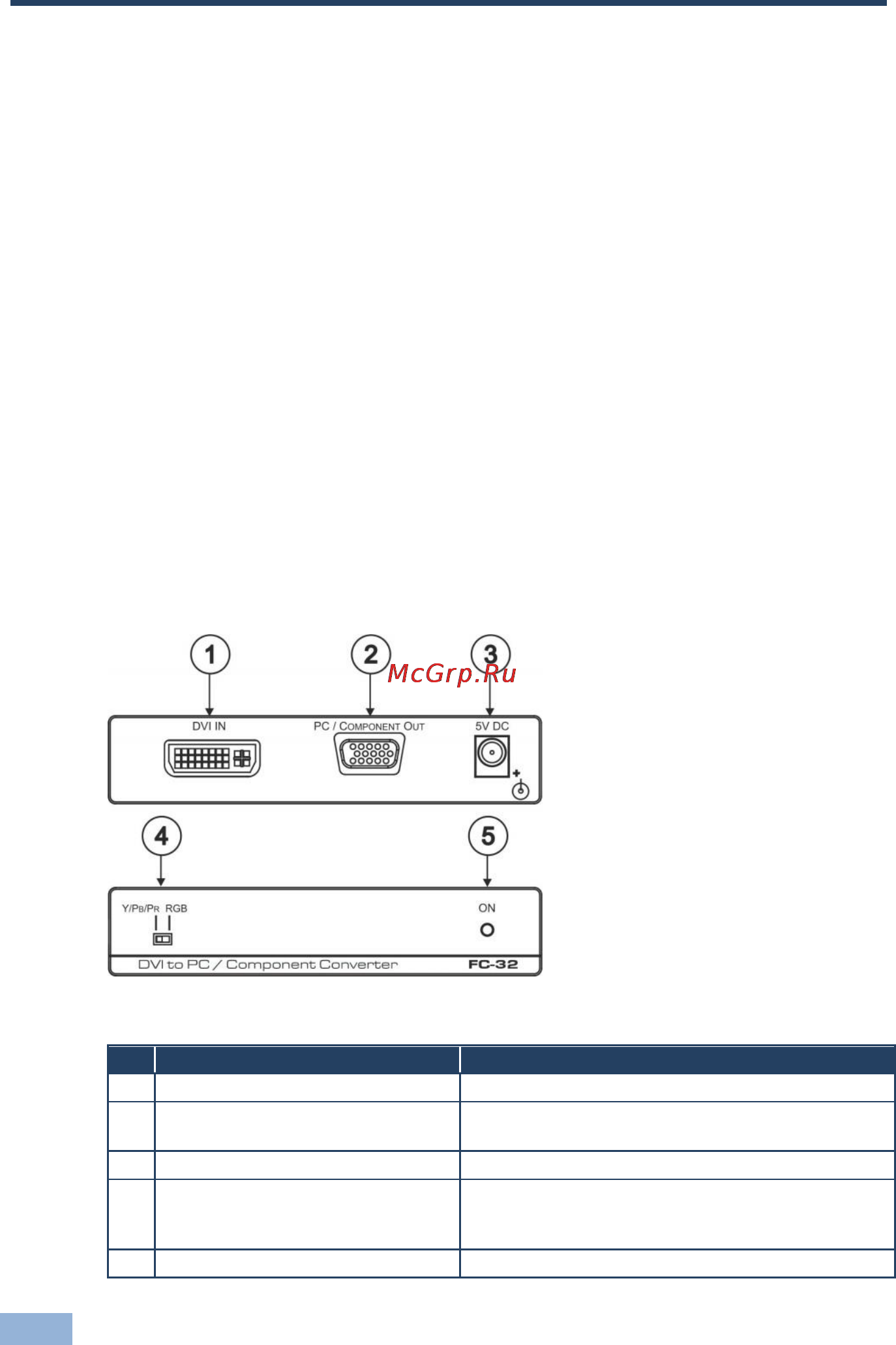

Figure 1: FC-32 DVI to PC/Component Converter

Feature

Function

DVI IN 24-pin Molex Connector

Connect to digital source

PC/COMPONENT OUT 15-pin HD

Connector

Connect to PC or component acceptor

5V DC Connector

+5V DC for powering the unit

Y/PB/PR RGB Switch

Slide the switch to the left for a component acceptor

(with bi-level sync); slide the switch to the right for

a computer graphics acceptor

ON LED

Illuminates green when receiving power
